| Country of Origin | India |
|---|---|
| Brand | ROHM |
| Height | 1.2mm |
| Length | 2.9mm |
| Model | SSTA56HZGT116 |
| Width | 2.4mm |
| Mount Type | Surface |
| Series | SSTA56HZG |
| Maximum Operating Temperature | 150°C |
| Package Type | SOT-23 |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | RoHS |
| Pin Count | 3 |
| Maximum Collector Emitter Voltage Vceo | -80V |
| Minimum DC Current Gain hFE | 100 |
| Transistor Polarity | PNP |
| Maximum Emitter Base Voltage VEBO | 7V |
| Maximum Collector Base Voltage VCBO | 80V |
| Maximum Power Dissipation Pd | 200mW |
| Maximum DC Collector Current Idc | -500mA |
| Transistor Configuration | PNP |
| Maximum Transition Frequency ft | 50MHz |

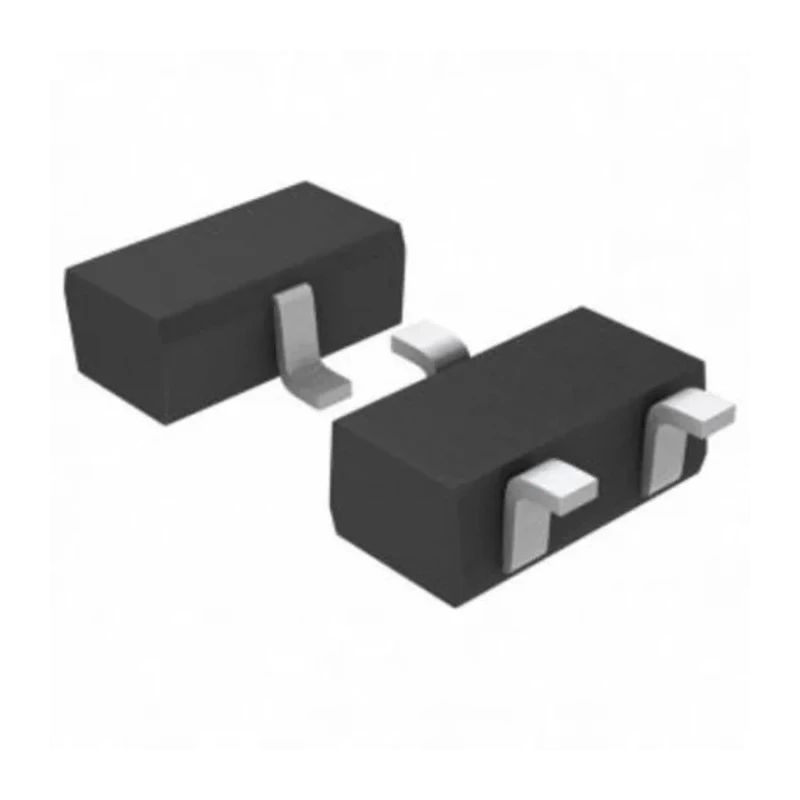

ROHM SSTA56HZGT116 transistor is a high-quality, general-purpose PNP bipolar transistor designed primarily for audio frequency small signal amplifier applications. Rated for a maximum DC collector current of -500 mA and a maximum collector emitter voltage of -80 V, this device supports reliable performance in various industrial and electronic environments.
The transistor comes in a compact 3-pin SOT-23 surface mount package which aids in space-saving PCB designs. It features a maximum power dissipation of 200 mW and a minimum DC current gain (hFE) of 100, providing efficient amplification capabilities. This transistor operates effectively over a broad temperature range from -55°C to 150°C, ensuring durability in demanding conditions.
With a maximum transition frequency of 50 MHz, the SSTA56HZGT116 is suitable for high-frequency audio and signal amplification tasks. The device is manufactured with compliance to RoHS standards, confirming environmentally friendly processes and safety in electronic manufacturing.
Dimensionally, it measures 2.9 mm in length, 2.4 mm width, and 1.2 mm height, allowing for integration into compact electronic modules and systems. 3-pin SOT-23 surface mount package for compact PCB layout. Maximum collector current of -500 mA suitable for audio signal applications.
High voltage rating of -80 V for reliable performance. Minimum current gain (hFE) of 100 for effective amplification. Wide operating temperature range from -55°C to 150°C for industrial use. Maximum power dissipation of 200 mW ensures device reliability.
RoHS compliant device adhering to environmental standards. Small dimensions allow for integration into compact devices.
This transistor is ideal for applications in electronics manufacturing, audio frequency amplification, and other industrial electronic circuits requiring robust and compact Bipolar Transistors. Explore EnvMart's selection of semiconductor components and electronic parts for your industrial and commercial projects.
