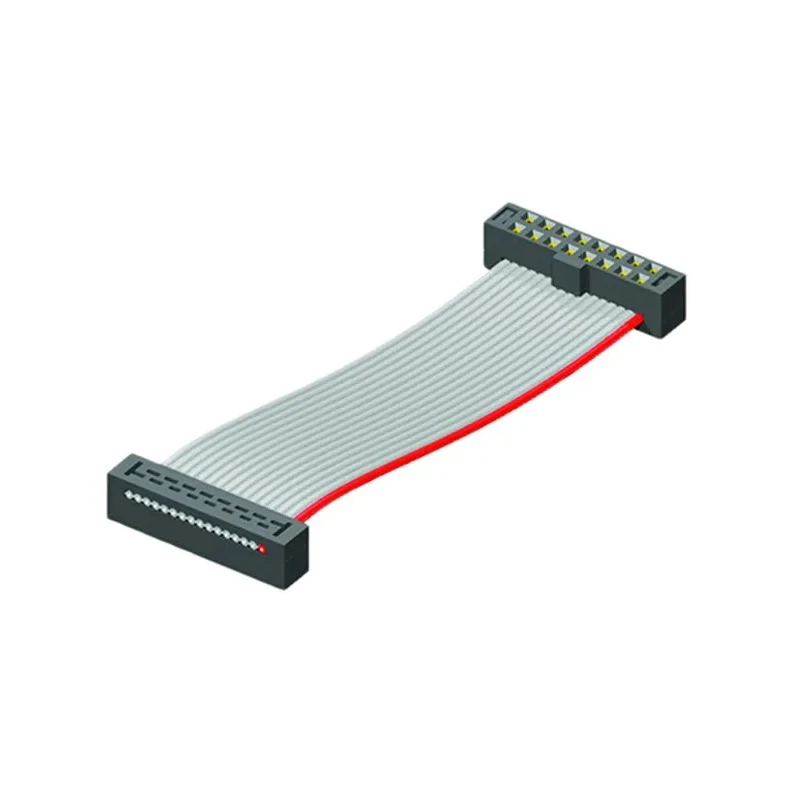

Samtec Flat Ribbon IDC Socket Cable Assembly 50 mm Length Tiger Eye IDC to Tiger Eye IDC TCSD-20-D-02.00-01-N
Specifications
| Country of Origin | India |
|---|---|
| Brand | Samtec |
| Model | TCSD-20-D-02.00-01-N |
| Cable Length | 50mm |
| Series | TCSD |
| Cable Type | Flat Ribbon |
| Jacket Material | Polyvinyl Chloride |
| Standards/Approvals | RoHS Compliant, UL |
| Connector Type A | Tiger Eye IDC |
| Connector Gender A | Female |
| Jacket Colour | Grey |
| Contact Gender A | Female |
Key Features
- Constructed with 28 AWG 7/36 stranded tinned copper wire.
- Features PVC insulated flat ribbon cable with grey jacket.
- Utilizes 2.00 mm pitch double row female sockets on both ends.
- Highly reliable gold plated Tiger Eye IDC contacts ensure accurate and stable connection.
- Incorporates a polarizing notch for correct mating alignment.
- RoHS compliant and UL approved for quality assurance.
- Compatible with TMM, TMMH, STMM, MMT, TW, MTMM, EHT, ETMM, and ZSTMM series headers.
Product Description
Samtec TCSD-20-D-02.00-01-N flat ribbon IDC socket cable assembly is designed for high-reliability electrical connections in industrial, automation, and electronic applications. The assembly includes a 50 mm long flat ribbon cable constructed with 28 AWG 7/36 stranded tinned copper wire for excellent conductivity and flexibility. The cable features a grey PVC jacket providing insulation and durability.
This product has 2.00 mm pitch double row female Tiger Eye IDC connectors at both ends, allowing secure socket connections. The gold plated contacts deliver corrosion resistance and optimal signal integrity. A polarizing notch facilitates proper connector orientation during assembly, reducing mating errors.
Certification including RoHS compliance and UL approval ensures safety and environmental standards are met. This IDC socket cable assembly is suitable for applications in electronics manufacturing, automation systems, control panels, and other wire-to-board connection needs.
For use in combination with compatible series headers such as TMM, TMMH, STMM, MMT, TW, MTMM, EHT, ETMM, and ZSTMM, this product supports diverse system integration requirements.
This cable assembly is ideal for electronics engineers, system integrators, and maintenance professionals requiring a reliable flat ribbon IDC socket cable with precise 50 mm length and Tiger Eye IDC connectors on both ends.
Constructed with 28 AWG 7/36 stranded tinned copper wire. Features PVC insulated flat ribbon cable with a grey jacket. 2.00 mm pitch double row female Tiger Eye IDC connectors at both ends. Gold plated IDC Tiger Eye contacts for excellent conductivity and corrosion resistance.
Polarizing notch ensures correct mating alignment. RoHS compliant and UL approved for quality and safety. Compatible with various Samtec header series for flexible integration. Explore our comprehensive range of Ribbon Cables and wire-to-board assemblies on EnvMart to find the ideal connection solutions for your electronics and automation projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The cable assembly has a length of 50 mm.
It uses 2.00 mm pitch double row female Tiger Eye IDC connectors at both ends.
The assembly is constructed with 28 AWG 7/36 stranded tinned copper wire and features a PVC insulated flat ribbon cable with a grey jacket.
Yes, the cable assembly is RoHS compliant and UL approved for safety and environmental standards.
This cable assembly is suitable for applications in electronics manufacturing, automation systems, control panels, and wire-to-board connections.
The polarizing notch ensures correct mating alignment during assembly, reducing the chances of mating errors.
The jacket color of the cable is grey.
The product meets RoHS compliance and has UL approval, ensuring it adheres to safety and environmental standards.
It is beneficial for applications requiring reliable electrical connections in industrial and electronic environments, such as automation systems and control panels.
The cable assembly uses 28 AWG wire gauge for its construction.
It is compatible with TMM, TMMH, STMM, MMT, TW, MTMM, EHT, ETMM, and ZSTMM series headers.
The cable assembly is manufactured in India.
