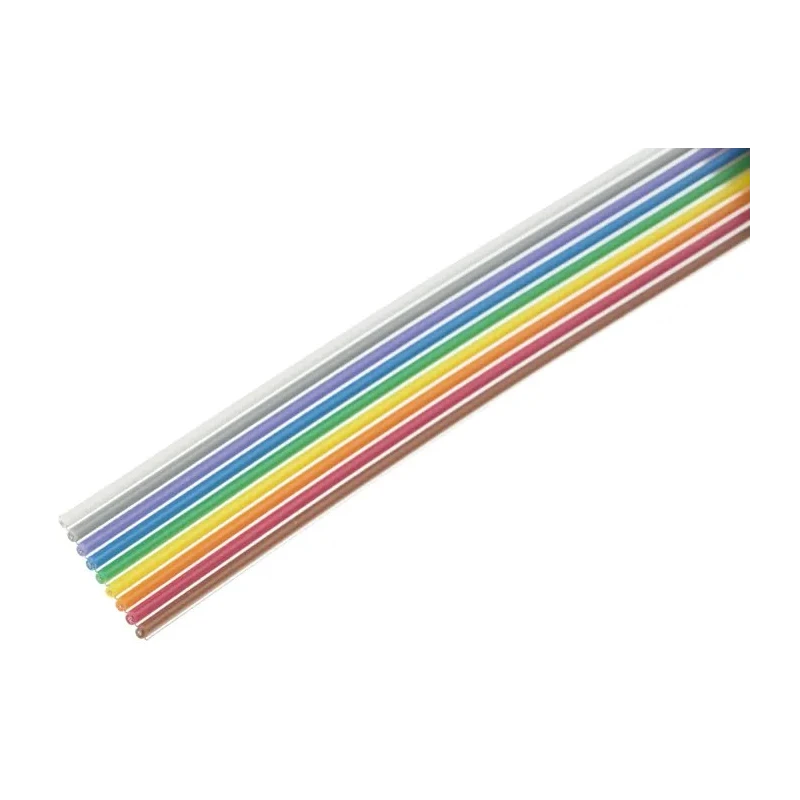

3M 3302 Series Flat Cable Stranded 9 Conductors 1.27 mm Pitch 300V 30.48 m Multicolour 3302-9

The 3M 3302-9 flat cable is designed for dependable wiring in industrial control panels, automation devices, and compact electrical assemblies. With nine individually stranded conductors arranged side-by-side in a multicolour flat ribbon, this cable streamlines the routing of multiple signals or low-voltage power lines within dense enclosures.

Each conductor is made up of seven finely stranded tinned copper wires, enhancing flexibility and providing excellent resistance to repeated bending or movement without compromising connectivity. Tinned copper conductors offer better solderability and reduced surface oxidation compared to bare copper, simplifying the assembly and maintenance process.

The flat ribbon structure features a 1.27 mm conductor pitch, a common standard for mass termination and direct mating with IDC (insulation displacement connector) header connectors. This ensures compatibility with a wide range of modular electronic, automation, and test equipment. The multicolour PVC jacket not only increases abrasion resistance but also makes signal identification and traceability easier during installation and troubleshooting.

This 3M cable is rated to carry up to 300V, supporting most low-voltage signal and control circuitry encountered in factory automation, electronics prototyping, panel wiring, and laboratory instrumentation. The robust polyvinyl chloride insulation is tested to VW-1 flame resistance, meeting North American safety standards and ensuring fire performance in confined wiring pathways.

Operating temperatures from -20°C to 105°C allow reliable function in harsh or temperature-variable environments - from equipment racks and robotic arms to field test systems. Its unscreened construction makes it lightweight and adaptable for internal equipment wiring, though additional external screening is recommended where electromagnetic noise suppression is required.

Supplied in a continuous 30.48 meter (100 foot) reel, the 3M 3302-9 is an optimal choice for signal harnesses, multi-core extensions, and custom cable assemblies on production lines or during the commissioning of industrial modules. Industries benefitting from this cable include manufacturing automation, electronic device assembly, test benches, control panel fabrication, and instrumentation setups.
