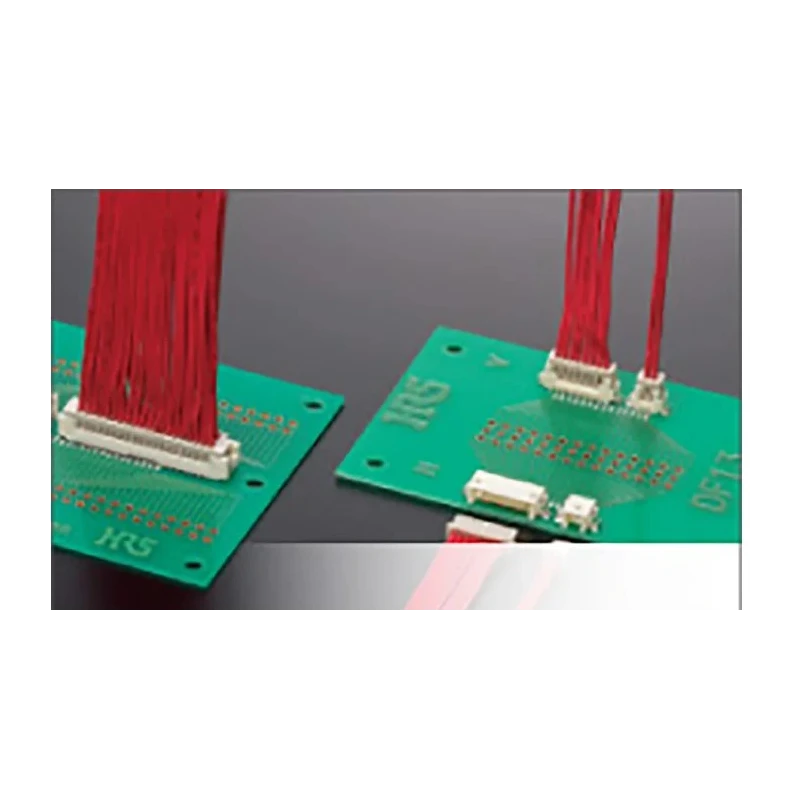

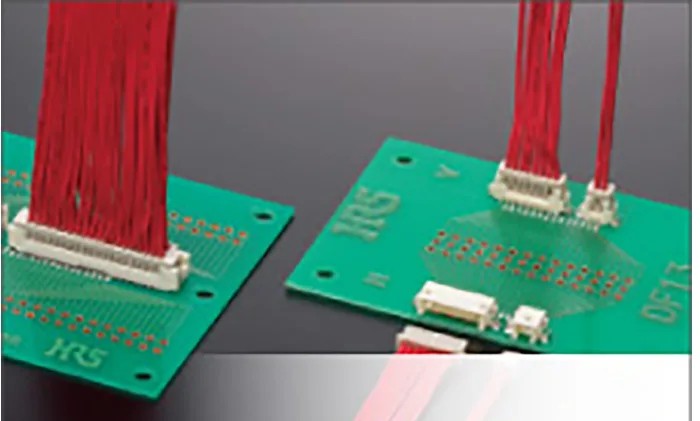

Hirose DF13 Series Straight Surface PCB Header 6 Contacts 1.25 mm Pitch 1 Row Shrouded
Specifications
| Country of Origin | Japan |
|---|---|
| Voltage | 150V |
| Brand | Hirose |
| Orientation | Straight |
| Current | 1A |
| Model | DF13 |
| Mount Type | Surface |
| Housing Material | Polyamide |
| Contact Material | Brass |
| Series | DF13 |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -35°C |
| Number of Rows | 1 |
| Pitch | 1.25mm |
| Contact Plating | Tin |
| Number of Contacts | 6 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
Key Features
- Features a shrouded housing made of durable polyamide material.
- Equipped with brass contacts plated with tin for enhanced conductivity and corrosion resistance.
- Supports a current rating of 1 ampere and voltage up to 150 volts.
- Designed for surface mounting with solder termination for secure connections.
- Operates reliably from -35°C to 85°C, suitable for varied environments.
- Compact single row configuration with a 1.25 mm row pitch for miniature applications.
- Male contact gender ensuring proper mating with compatible connectors.
- Manufactured in Japan to high-quality standards.
Product Description
Hirose DF13-6P-1.25V(75) is a high-quality, miniature straight surface mount PCB header designed for reliable wire-to-board connections in electronic assemblies. The connector features 6 male contacts arranged in a single row with a 1.25 mm pitch, providing precise and compact interconnect solutions.
The housing is made from robust polyamide material and is shrouded to protect the contacts, enhancing connection reliability and durability. Contacts are made of brass and plated with tin to ensure excellent electrical conductivity and resistance to corrosion over time. The connector supports a current rating of 1A and can withstand operating voltages up to 150V, making it suitable for various electronic applications requiring stable performance.
The product's surface mounting configuration and solder termination type facilitate automated PCB assembly processes and secure mechanical and electrical connections. It can operate effectively across a temperature range from -35°C to 85°C, allowing it to be used in diverse environmental conditions, including industrial and commercial electronics.
This PCB header is ideal for miniature applications where space-saving connectors are critical, such as consumer electronics, telecommunications equipment, industrial controls, and embedded systems. Its Japanese origin assures quality control and manufacturing precision.
Shrouded polyamide housing protects contacts and enhances durability. Brass contacts plated with tin provide stable electrical conductivity. Supports 1A current rating and 150V maximum voltage. Surface mount compatible with solder termination type.
Operating temperature range from -35°C up to 85°C. 1.25 mm pitch and single row layout for compact PCB designs. Male contact gender for proper connector mating. Manufactured in Japan following stringent quality standards.
Explore the extensive range of PCB Headers on EnvMart to find connectors tailored to your specific industrial, laboratory, or manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This PCB header supports a current rating of 1 ampere.
It can withstand operating voltages up to 150 volts.
The connector operates reliably within a temperature range from -35°C to 85°C.
This model features 6 male contacts arranged in a single row.
The contact pitch is 1.25 mm, designed for compact applications.
The housing is made of durable polyamide material.
It uses a solder termination type for secure connections.
Yes, it is designed for surface mounting, facilitating automated assembly processes.
The contacts are made of brass and plated with tin for enhanced conductivity and corrosion resistance.
It is manufactured in Japan, adhering to high-quality standards.
The orientation of this model is straight, allowing for easy integration into designs.
This series is ideal for miniature applications in consumer electronics, telecommunications, and embedded systems.
