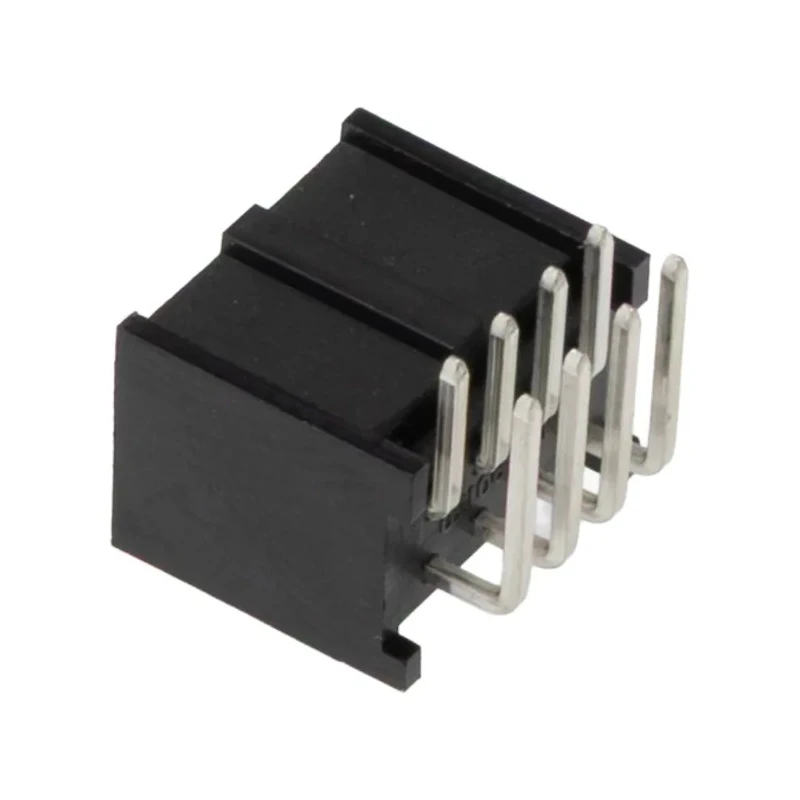

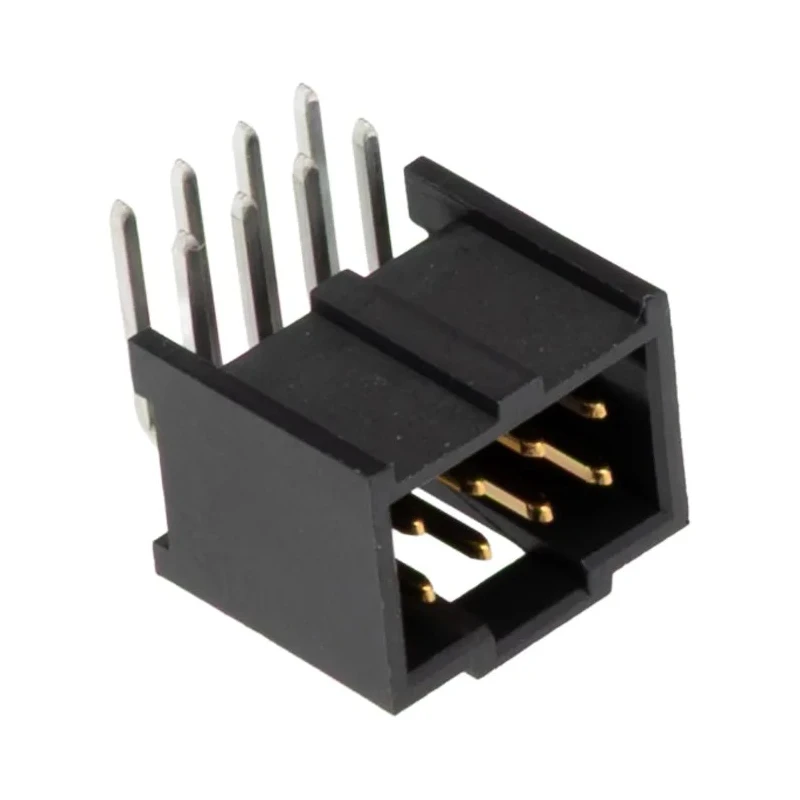

Molex C-Grid III Series Right Angle Through Hole PCB Header 8 Contacts 2.54 mm Pitch 2 Row Shrouded 90130-3208

Molex 90130-3208 is a C-Grid III Series PCB Header connector designed for reliable wire-to-board applications in industrial and electronic equipment. Featuring a 2.54 mm pitch and 8 male brass contacts arranged in 2 rows, this right angle through hole header offers a shrouded housing made of durable polyester material, enhancing electrical connection safety and protection.

The connector supports a current rating of 3A per contact and a maximum voltage of 350V AC/DC, making it well-suited for various electrical and electronic systems requiring dependable connections. Its gold plating over the brass contacts ensures superior conductivity and resistance to corrosion, extending the product's lifespan.

This PCB header is designed to withstand operating temperatures ranging from -55°C to +125°C, suitable for harsh industrial environments. The termination type is solder, and the tail pin length is 2.9 mm, while the mating pin length is 6.75 mm, allowing secure mechanical and electrical stability on the PCB. The connector supports up to 100 mating cycles, providing durability for repeated assembly and maintenance operations.

Applications include automation control panels, electronics devices requiring signal connections, and mechanical systems where reliable PCB connectivity is critical. The recommended PCB thickness of 1.60 mm ensures optimal performance and fit during installation.

With standards compliance (DIN 41651; HE13/14) and a design tailored for right angle locking housings, this Molex PCB header is a versatile component for electronics manufacturing, industrial machinery, and laboratory equipment.

Features a shrouded design for enhanced contact protection. Right angle orientation allows compact PCB layouts. Gold-plated brass contacts ensure reliable conductivity. Supports through hole mount type for durable PCB attachment.

Rated for 3A current and 350V maximum voltage. Suitable for operating temperatures from -55°C to 125°C. Designed for up to 100 mating cycles, providing durability. Ideal for automation control panels and signal connections.

Recommended PCB thickness of 1.60mm for proper installation. Explore our range of Molex PCB Headers and connectors at EnvMart for your electronic component sourcing needs.
