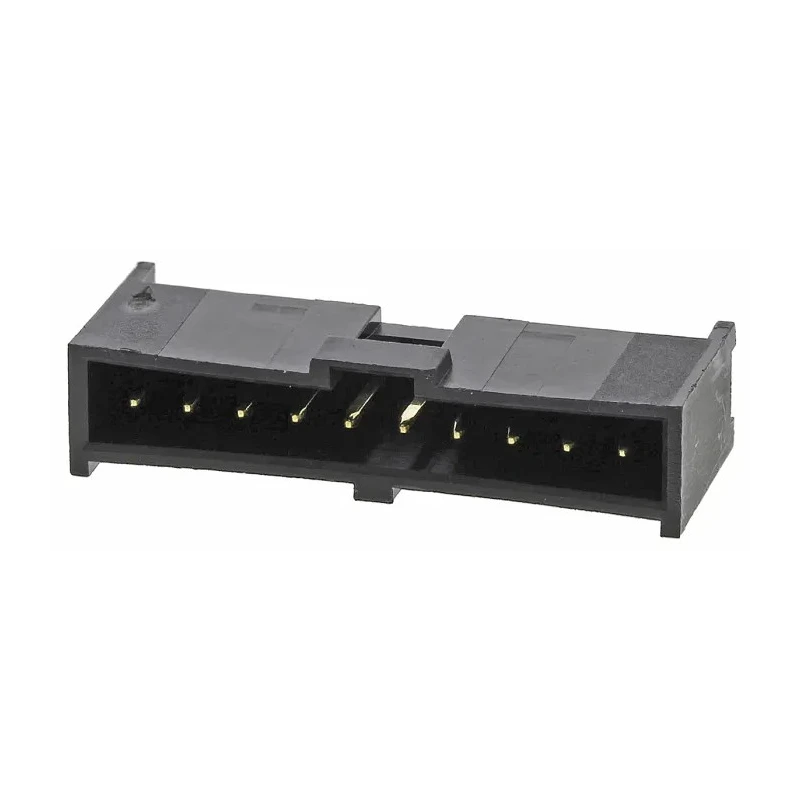

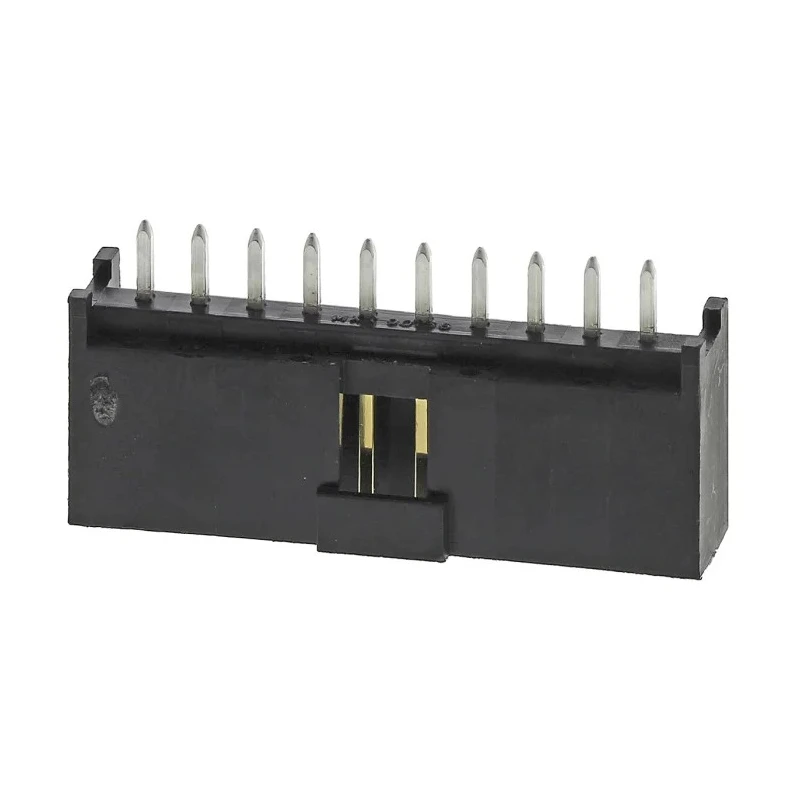

Molex C-Grid III Series Straight Through Hole PCB Header 10 Contact 2.54 mm Pitch 1 Row Shrouded 90136-1210
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 350V |
| Brand | Molex |
| Orientation | Straight |
| Current | 3A |
| Mount Type | Through Hole |
| Housing Material | Polyester |
| Contact Material | Brass |
| Series | C-Grid III |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 10 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
| Tail Pin Length | 2.9mm |
| Mating Pin Length | 6.75mm |
Key Features
- The header features 10 brass contacts plated with gold to ensure durable connectivity.
- Pitch between contacts is 2.54 mm, compatible with standard PCB designs.
- Single row configuration with a straight orientation simplifies PCB assembly.
- Housing is made of durable polyester providing insulation and strength.
- Termination type is solder for secure and permanent PCB attachment.
- Operating temperature range of -55°C to 125°C supports versatile applications.
- Maximum voltage rating is 350 V and current rating is 3 A for safe operation.
- Compliance with DIN 41651; HE13/14 standards ensures industry compatibility.
Product Description
Molex 90136-1210 is a C-Grid III Series straight through hole PCB header with 10 contacts arranged in a single row and a pitch of 2.54 mm. This shrouded male header is engineered for wire-to-board connections, offering a robust and reliable electrical interface.
The connector housing is constructed with high-quality polyester material that ensures excellent insulation and mechanical robustness. The contacts are brass with gold plating, guaranteeing excellent conductivity and corrosion resistance. The termination style is solder, providing a secure and durable attachment to the PCB.
Operating in temperature ranges of -55°C to 125°C, the header meets demanding environmental requirements in industrial, manufacturing, and electronic applications. It supports a voltage rating up to 350 V and carries a current capacity of 3 A to accommodate typical electronic circuitry needs.
Compliance with DIN 41651 and HE13/14 standards ensures the header's compatibility with a broad range of industrial electronic assemblies and equipment.
With a tail pin length of 2.9 mm and a mating pin length of 6.75 mm, the header allows for reliable mating and secure locking housing integration. Its straight orientation and through-hole mount type facilitate easy installation on printed circuit boards.
The header features 10 brass contacts plated with gold to ensure durable connectivity. Pitch between contacts is 2.54 mm, compatible with standard PCB designs. Single row with straight orientation simplifies PCB design and assembly.
Housing material Polyester offers insulation and strength. Termination type Solder ensures secure PCB connection. Operating temperatures from -55°C to 125°C enable versatile use cases.
This Molex C-Grid III Series header is ideal for electronics manufacturing, industrial equipment, and communications hardware where reliable PCB connections are critical. Its robust design supports durable and consistent performance under demanding conditions.
Explore the Molex product range and related PCB Headers for your electronic component requirements at EnvMart.
