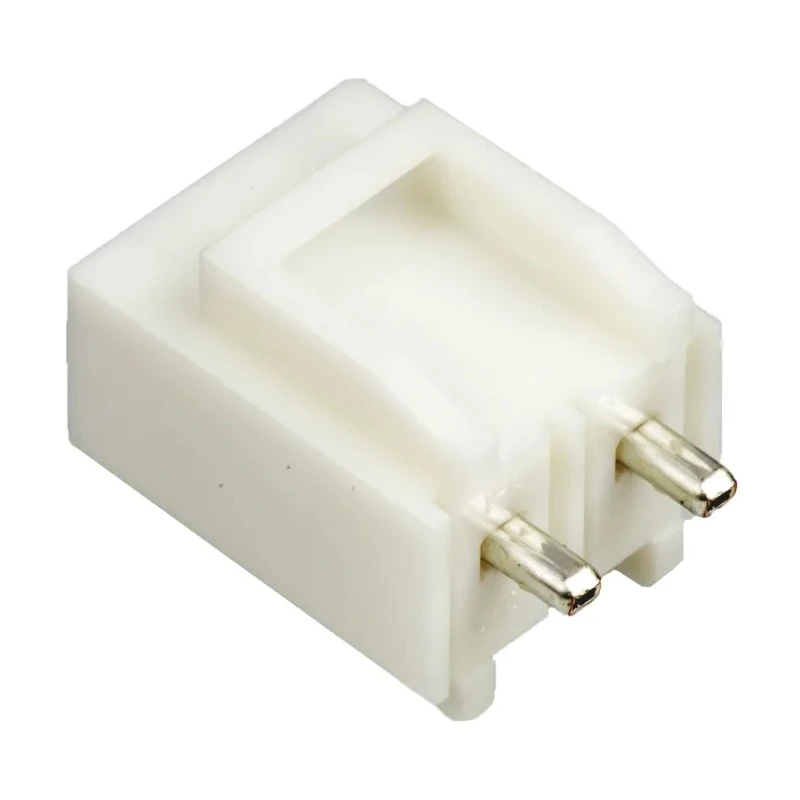

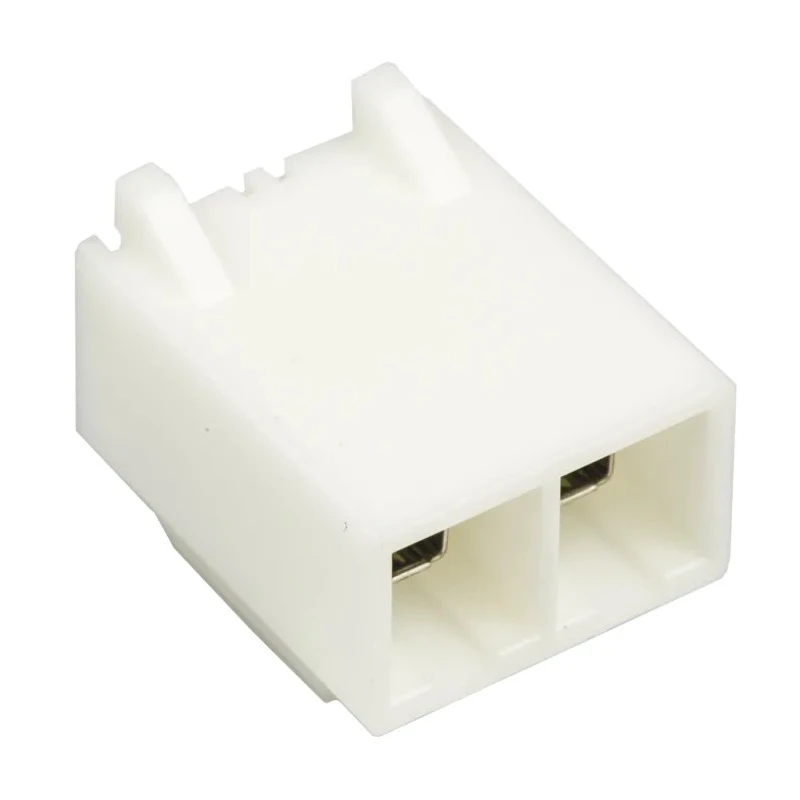

JST VL Series Straight Through Hole PCB Header, 2 Contacts, 6.2 mm Pitch, 1 Row, Shrouded B02P-VL (LF)(SN)

JST B02P-VL (LF)(SN) PCB Header is a high-quality, shrouded, straight through hole connector from the VL series designed to support demanding electronic applications. Featuring a compact 2-contact, 1-row layout with a 6.2 mm pitch, this PCB header is constructed from nylon housing material compliant with PA 66 UL94V-0 standards, making it flame resistant and durable under industrial operating conditions.

The connector supports high current loads of up to 20 amperes and high voltage of 600 volts ac/dc, making it ideal for power distribution and wire-to-board connections in industrial, manufacturing, and electronic instrumentation settings. Its copper alloy contacts with tin plating minimize contact resistance, providing reliable and low-resistance electrical pathways with a maximum initial contact resistance of 7 milliohms.

Designed for through hole mounting with solder termination, the component ensures stable mechanical and electrical connection to circuit boards. The connector's straight orientation and shrouded design provide secure mating and protection, enhanced by inter-housing locks that prevent accidental disconnection during operation or servicing.

Operating smoothly in temperature environments ranging from -25°C to 85°C, the JST VL series PCB Header is suitable for various industrial electronics and power equipment applications. Typical use cases include power supplies, electronic assemblies, and manufacturing equipment requiring robust, reliable PCB connectors for high current and voltage.

High voltage rating of 600V ac/dc for enhanced safety and performance. Current rating of 20A supports high-power wire-to-board connections. Nylon UL94V-0 housing material ensures flame retardance and durability. Copper alloy contact material with tin plating reduces oxidation and contact resistance.

Shrouded design with inter-housing locks enhances connection security. Wide operating temperature range from -25°C to 85°C for versatile use. Through hole mount with solder termination for reliable PCB attachment. Mating pin length of 3.6 mm for firm contact engagement.

1 row, 2 contacts configuration suitable for compact PCB layouts. Designed for industrial, electronic manufacturing, power supply, and other applications requiring high reliability. Explore more high-quality JST PCB connectors and components in the Electronics Components category on EnvMart for your industrial, laboratory, and manufacturing needs.
