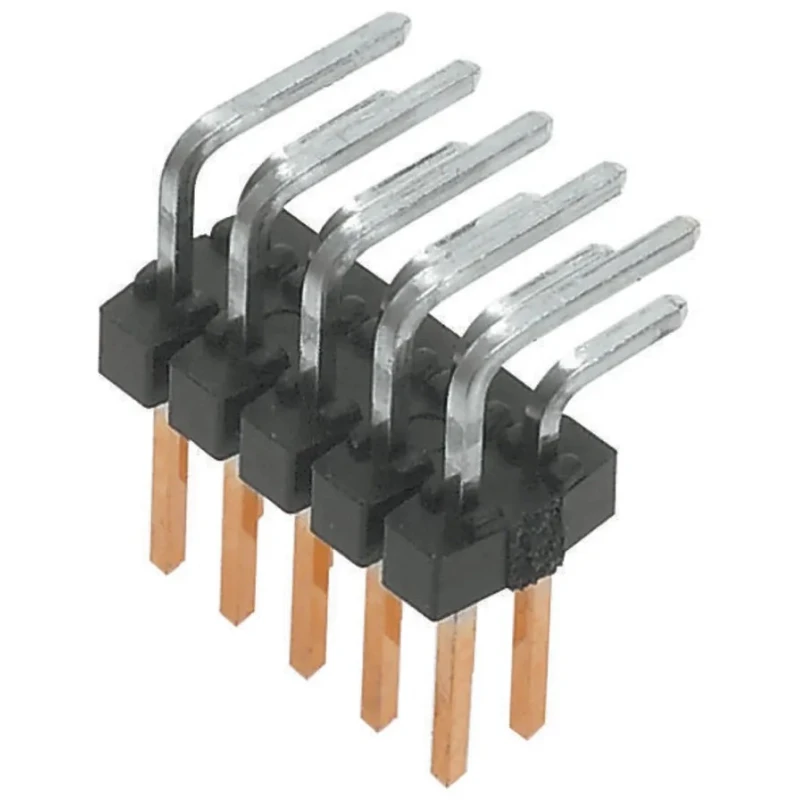

Molex C-Grid III Series Right Angle Through Hole Pin Header 12 Contacts 2.54 mm Pitch Unshrouded 90122-0766
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 350V |
| Brand | Molex |
| Orientation | Right Angle |
| Current | 3A |
| Mount Type | Through Hole |
| Housing Material | Polyester |
| Contact Material | Brass |
| Series | C-Grid III |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 12 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Unshrouded |
| Connector System | Wire-to-Board |
| Tail Pin Length | 2.9mm |
| Mating Pin Length | 6.75mm |
Key Features
- Features a right angle orientation for versatile PCB mounting.
- Constructed with brass contacts plated with gold for reliable connectivity.
- Housing made from durable polyester material ensuring mechanical stability.
- Supports a maximum current rating of 3A and voltage rating of 350V.
- Provides a breakaway design allowing customization of pin counts.
- Designed for high pin retention force guaranteeing secure mating connections.
- Suitable for solder termination providing robust board attachment.
- Operates reliably between -55°C and 125°C temperatures.
Product Description
Molex 90122-0766 C-Grid III Series Right Angle Through Hole Pin Header is engineered for high-performance PCB interconnections in industrial, computer, medical, consumer electronics, telecommunications, and transportation sectors. This 12-contact connector features a 2.54 mm pitch with 2 rows in an unshrouded design, optimizing flexibility through its breakaway construction that can be sized to design requirements.
The contact pins are manufactured from brass with gold plating to ensure excellent conductivity and corrosion resistance. The polyester housing provides mechanical robustness and high retention force once soldered onto the board, minimizing connection failures in demanding environments. The right angle orientation facilitates compact board layouts and ease of assembly in wire-to-board applications.
This pin header supports 3A current and 350V voltage ratings, operating efficiently within a wide temperature range of -55°C to 125°C. It follows DIN 41651; HE13/14 standards ensuring compatibility and quality assurance in various electronic assemblies.
Applications include desktop PCs, servers, monitors, medical instruments, household appliances, exchange stations, industrial machinery, and automotive safety electronics. The robust design and flexibility make it suitable for complex assemblies requiring reliable electrical connections.
Right angle orientation fits diverse PCB mounting needs. High retention force securing reliable connections. Breakaway design allows customizable pin counts. Gold plated brass contacts resist corrosion and ensure conductivity.
Polyester housing ensures mechanical durability. Supports 3A current at up to 350V voltage. Wide operating temperature range from -55°C to 125°C. Conforms to DIN 41651; HE13/14 standards. Widely applicable across industrial, medical, and consumer electronics.
Explore more PCB connectors and interconnection solutions at EnvMart to meet your project requirements.
Explore more products in our PCB Connectors & Wire Housings category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a maximum current rating of 3A and a voltage rating of 350V.
It features a 2.54 mm pitch and has 12 contacts arranged in 2 rows.
The contacts are made from brass with gold plating, while the housing is constructed from durable polyester material.
It operates reliably within a temperature range of -55°C to 125°C.
This unit is designed for solder termination, providing a robust board attachment.
It features a right angle orientation, which is suitable for versatile PCB mounting.
Yes, it has a breakaway design that allows for customizable pin counts to fit specific design requirements.
It conforms to DIN 41651; HE13/14 standards, ensuring compatibility and quality assurance in various electronic assemblies.
This model is suitable for applications in industrial, computer, medical, consumer electronics, telecommunications, and transportation sectors.
The tail pin length is 2.9 mm, while the mating pin length is 6.75 mm.
This pin header has a male contact gender.
It is designed with a high pin retention force, which guarantees secure mating connections once soldered onto the board.
