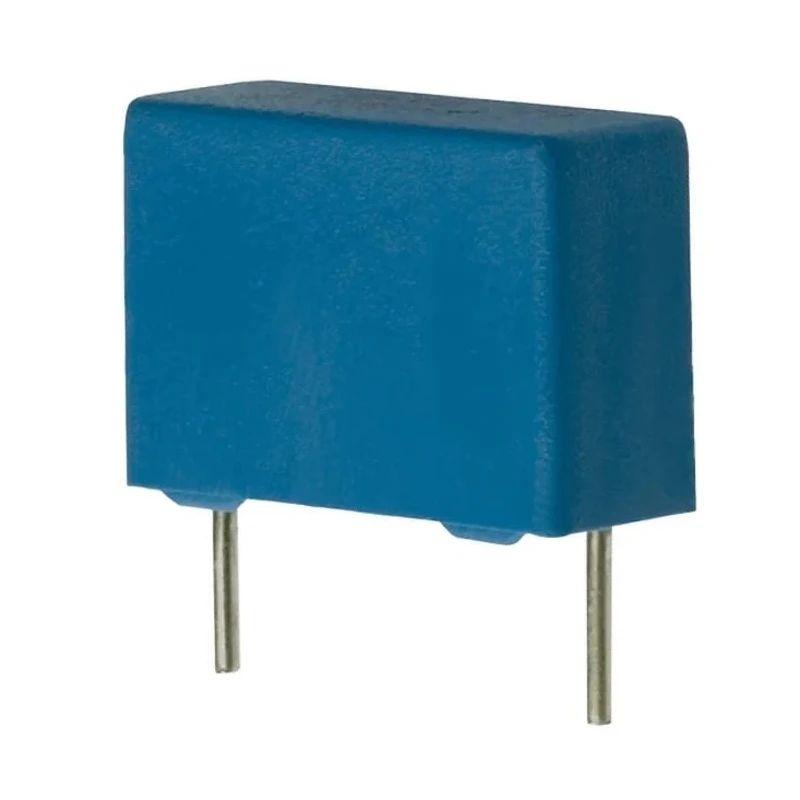

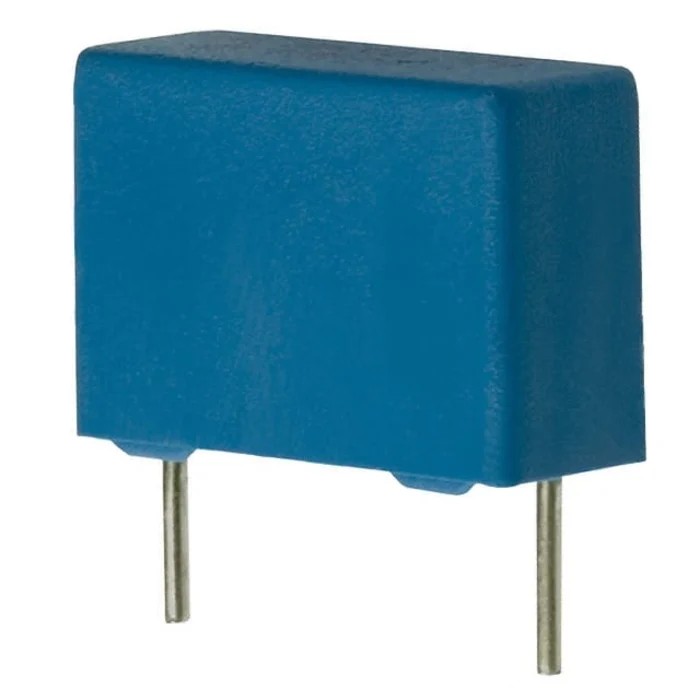

TDK Polypropylene Film Capacitor Through Hole 100 nF 305V AC/DC 15mm Pitch B32922C3104M189

Free Delivery in India | Lowest Global Shipping Charges

TDK Polypropylene Film Capacitor Through Hole 100 nF 305V AC/DC 15mm Pitch B32922C3104M189



Category Film Capacitors Brand TDK Condition New

Specifications

Country of Origin	Spain
Brand	TDK
Height	10.5mm
Length	18mm
Model	B32922C3104M189
Width	5mm
Mount Type	Through Hole
Series	B32922C
Maximum Operating Temperature	110°C
Capacitance	100nF
Pin Count	2
Rated AC Voltage	305V ac
Rated DC Voltage	305V dc
Lead Pitch	15mm
Lead Diameter	0.8mm
Suppression Class	X2

Key Features

Polypropylene dielectric material ensures excellent stability and low losses.
Rated for 305V AC and 305V DC operating voltage.
Plastic case with epoxy sealing for mechanical and environmental protection.
Lead pitch of 15 mm suitable for through hole mounting on PCBs.
Maximum operating temperature of 110°C for reliable performance.
Suppression Class X2 for EMI suppression applications.
Pin count of 2 with lead diameter of 0.8 mm, lead-free tinned parallel wire leads.

Product Description

TDK B32922C3104M189 Polypropylene Film Capacitor is designed for electronic and industrial applications requiring stable capacitance and EMI suppression.

This capacitor features polypropylene dielectric material valued for low dielectric losses and high insulation resistance, delivered in a compact plastic case with epoxy sealing to ensure durability. The device is rated for 305V AC and DC, making it suitable for use in power supplies and filtering circuits.

Mounting type is through hole with a 15 mm lead pitch, facilitating reliable PCB assembly. The capacitor supports continuous operation at temperatures up to 110°C. Its suppression Class X2 rating means it is optimized for use in EMI noise suppression applications, commonly found in industrial electronics and commercial equipment.

Its small dimensions (18 mm length, 5 mm width, and 10.5 mm height) allow easy integration into space-constrained designs. The capacitor has two leads with a diameter of 0.8 mm and uses lead-free tinned parallel wire leads, enhancing environmental compatibility.

The product meets stringent European standards EN 60384-14:2014/A1:2016 and IEC 60384-14:2013/AMD1:2016, assuring quality and compliance. Manufactured in Spain, this capacitor is ideal for applications in commercial electronics manufacturing, industrial control systems, and power supply EMI filtering.

Polypropylene film dielectric for stable performance and low losses. 305V AC/DC voltage ratings support varied electrical environments. Through hole mounting with 15 mm lead pitch for PCB assembly. Operation up to 110°C maximizes reliability in harsh conditions.

Suppression Class X2 ensures effectiveness in EMI noise suppression. Compact size enables use in tight spaces within equipment. Lead-free tinned leads promote environmental safety. Complies with EN 60384-14 and IEC 60384-14 standards.

Manufactured in Spain to high-quality standards. Explore more Film Capacitors and electronic components in EnvMart for industrial, laboratory, and commercial electronics manufacturing needs.
