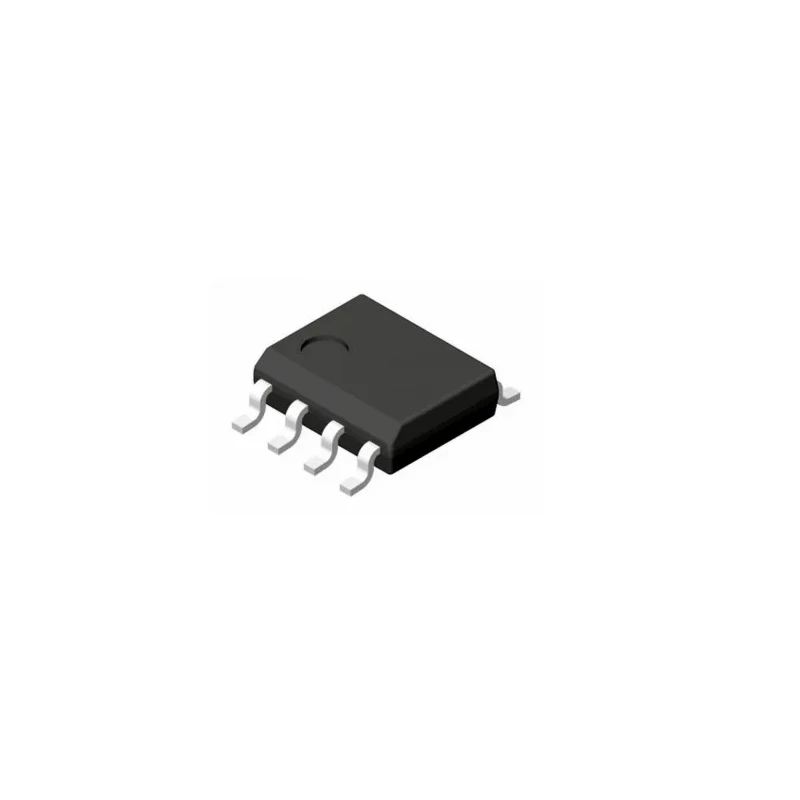

DiodesZetex Operational Amplifier 2 Channel 350 kHz Gain Bandwidth 1.8-5.5V SO 8-Pin AS2333S-13
Specifications
| Country of Origin | India |
|---|---|
| Brand | DiodesZetex |
| Height | 1.5mm |
| Length | 4.95mm |
| Model | AS2333S-13 |
| Width | 6.1mm |
| Mount Type | Surface |
| Series | AS2333 |
| Maximum Operating Temperature | 150°C |
| Package Type | SO |
| Minimum Operating Temperature | -60°C |
| Number Of Channels | 2 |
| Pin Count | 8 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 1.8V |
| GBP - Gain Bandwidth Product | 350kHz |
| Input Bias Current | 200 pA |
| Slew Rate | 0.12V/μs |
| Input Offset Current | 400 pA |
Key Features
- This amplifier supports a wide supply voltage range from 1.8V to 5.5V.
- It is designed with ultra-low input bias current of 200 pA, providing precision signal amplification.
- The device operates reliably across temperatures from -60°C to 150°C.
- Compact SO package measures 4.95 mm in length, 6.1 mm in width, and 1.5 mm in height.
- The amplifier uses a CMOS dual design with chopping stabilization for zero-drift offset performance over time.
- Pin count is 8, suitable for surface mount technology on printed circuit boards.
- Its slew rate is 0.12 V/μs, appropriate for moderate speed analog signal processing.
- Conforms to automotive grade standard AEC-Q100, ensuring quality and robustness.
Product Description
The DiodesZetex AS2333S-13 is a precision operational amplifier featuring a dual CMOS architecture with chopping stabilization to achieve ultra-low input offset voltage and zero-drift over time. It offers a gain bandwidth product of 350 kHz and supports dual channels in a compact 8-pin SO surface-mount package.
Designed for applications requiring stable and accurate signal amplification, this amplifier operates within a wide supply voltage range from 1.8V to 5.5V, making it suitable for diverse electronic systems including automotive, industrial, and consumer electronics.
Key technical parameters include an input bias current of just 200 pA and an input offset current of 400 pA, allowing for high precision measurement and signal conditioning. The device is capable of functioning over a broad temperature range from -60°C to 150°C, which enhances reliability in harsh environments.
With a small form factor (4.95 mm length x 6.1 mm width x 1.5 mm height), it is ideal for compact PCB designs. Its slew rate of 0.12 V/μs supports moderate frequency applications. The AS2333S-13's compliance with the automotive AEC-Q100 standard ensures it meets stringent quality requirements for demanding automotive systems.
Dual CMOS operational amplifier with chopping stabilization technique. Ultra-low input offset voltage with zero-drift characteristics. 350 kHz gain bandwidth product suitable for medium-speed analog processing. Wide supply voltage range: 1.8V to 5.5V.
Small outline 8-pin surface mount package (SO). Operating temperature range: -60°C to 150°C for extended environment use. Automotive AEC-Q100 compliant for automotive-grade reliability.
This operational amplifier is well suited for electronic components, semiconductor applications, and amplifiers & comparators in industrial, automotive, and communication systems. It offers reliable performance in power and signal conditioning circuits where precision and low drift are critical.
Explore more electronic components and Operational Amplifiers at EnvMart for comprehensive selection and technical support in your product designs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The gain bandwidth product of this operational amplifier is 350 kHz, making it suitable for medium-speed analog signal processing applications.
It supports a wide supply voltage range from 1.8V to 5.5V, allowing for versatility in various electronic systems.
This operational amplifier operates reliably over a temperature range from -60°C to 150°C, enhancing its performance in harsh environments.
It features two channels, allowing for dual signal amplification in a compact design.
The input bias current is 200 pA, which contributes to its precision in signal amplification.
It is packaged in a small outline 8-pin surface mount (SO) configuration, measuring 4.95 mm in length, 6.1 mm in width, and 1.5 mm in height.
The slew rate is 0.12 V/μs, making it suitable for moderate frequency applications.
It conforms to the automotive grade standard AEC-Q100, ensuring it meets stringent quality requirements for automotive applications.
The input offset current is 400 pA, which aids in maintaining accuracy in signal processing.
The operational amplifier is manufactured in India.
It utilizes a dual CMOS design with chopping stabilization to achieve zero-drift offset performance over time.
This operational amplifier is suitable for applications in automotive, industrial, and consumer electronics where precision signal amplification is required.
