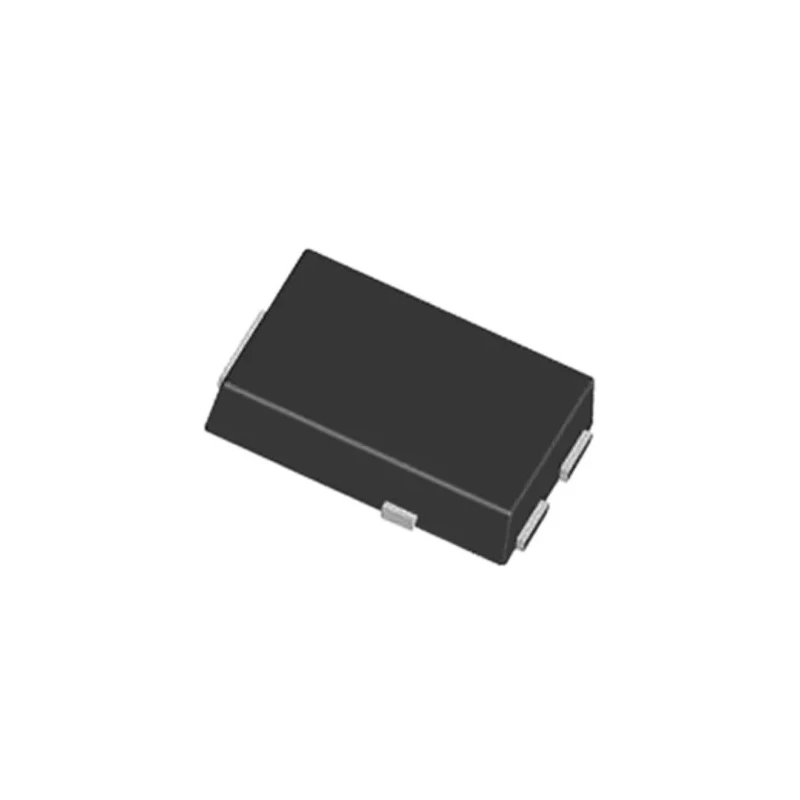

Vishay 1-Element Uni-Directional TVS Diode Surface Mount TO-277 Package 1.5 kW 60 V SMPC60ANHM3/H
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 1.2mm |
| Length | 6.15mm |
| Model | SMPC60ANHM3/H |
| Width | 4.75mm |
| Mount Type | Surface |
| Series | eSMP |
| Maximum Operating Temperature | 150°C |
| Package Type | TO-277 |
| Minimum Operating Temperature | -55°C |
| Pin Count | 3 |
| Number of Elements per Chip | 1 |
| Clamping Voltage VC | 96.8V |
| Automotive Standard | AEC-Q101 |
| Diode Configuration | Single |
| Direction Type | Uni-Directional |
| Minimum Breakdown Voltage Vbr | 66.7V |
| Maximum Reverse Stand-off Voltage Vwm | 60V |
| Peak Pulse Power Dissipation Pppm | 1.5kW |
| Test Current It | 1mA |
| Maximum Peak Pulse Current Ippm | 15.5A |
| Maximum Reverse Leakage Current | 1μA |
Key Features
- This diode supports uni-directional voltage clamping for transient voltage protection.
- It features a peak pulse power dissipation rating of 1.5 kW for surge protection.
- The device has a maximum reverse stand-off voltage of 60 V and a clamping voltage of 96.8 V.
- The compact TO-277 package enables surface mount assembly with dimensions 6.15 mm length, 4.75 mm width, and 1.2 mm height.
- It is qualified to automotive AEC-Q101 standards for reliable operation between -55°C and 150°C.
- The diode handles a maximum peak pulse current of 15.5 A with low leakage current of 1 μA.
- Designed for automated placement, it offers very fast response time and low incremental surge resistance.
- This component is ideal for industrial and automotive ESD and surge protection applications.
Product Description
Vishay SMPC60ANHM3/H is a single-element, uni-directional transient voltage suppressor (TVS) diode designed for effective transient voltage protection in electronic circuits. Housed in a low-profile surface mount TO-277 package, it features robust protection capabilities with a peak pulse power dissipation of 1.5 kW at a 10/1000 μs waveform.
This diode offers a maximum reverse stand-off voltage (Vwm) of 60 V and clamps voltage at 96.8 V, ensuring downstream components remain protected from voltage spikes. Its maximum peak pulse current rating is 15.5 A, with a low maximum reverse leakage current of 1 μA, providing stable and reliable protection performance.
The compact and low-profile design with dimensions 6.15 mm length, 4.75 mm width, and 1.2 mm height facilitates automated PCB assembly while maintaining high surge capability. The device meets automotive standard AEC-Q101, supporting operation in harsh automotive environments between -55°C and 150°C.
Its fast response time and low incremental surge resistance make it suitable for a wide range of industrial, automotive, and aerospace applications where voltage transient suppression is critical. Applications include ESD protection on data lines, power supply rail clamping, and transient voltage conditioning in control circuits.
Package contents include one TO-277 surface mount TVS diode with 3 pins configured as a single element uni-directional protection device. This diode supports uni-directional voltage clamping for transient voltage protection.
It features a peak pulse power dissipation rating of 1.5 kW for surge protection. The device has a maximum reverse stand-off voltage of 60 V and a clamping voltage of 96.8 V. The compact TO-277 package enables surface mount assembly with dimensions 6.15 mm length, 4.75 mm width, and 1.2 mm height.
It is qualified to automotive AEC-Q101 standards for reliable operation between -55°C and 150°C. The diode handles a maximum peak pulse current of 15.5 A with low leakage current of 1 μA. Designed for automated placement, it offers very fast response time and low incremental surge resistance.
This component is ideal for industrial and automotive ESD and surge protection applications. Explore the Vishay TVS Diode range on EnvMart for high-quality protection components tailored to industrial and automotive electronics needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It features a peak pulse power dissipation rating of 1.5 kW.
The dimensions of the TO-277 package are 6.15 mm in length, 4.75 mm in width, and 1.2 mm in height.
The clamping voltage of this diode is 96.8 V.
It can handle a maximum peak pulse current of 15.5 A.
The minimum operating temperature for this diode is -55°C.
Yes, it is qualified to automotive AEC-Q101 standards.
This model has a single-element, uni-directional diode configuration.
It is suitable for industrial and automotive ESD and surge protection applications.
The height of the diode in the TO-277 package is 1.2 mm.
