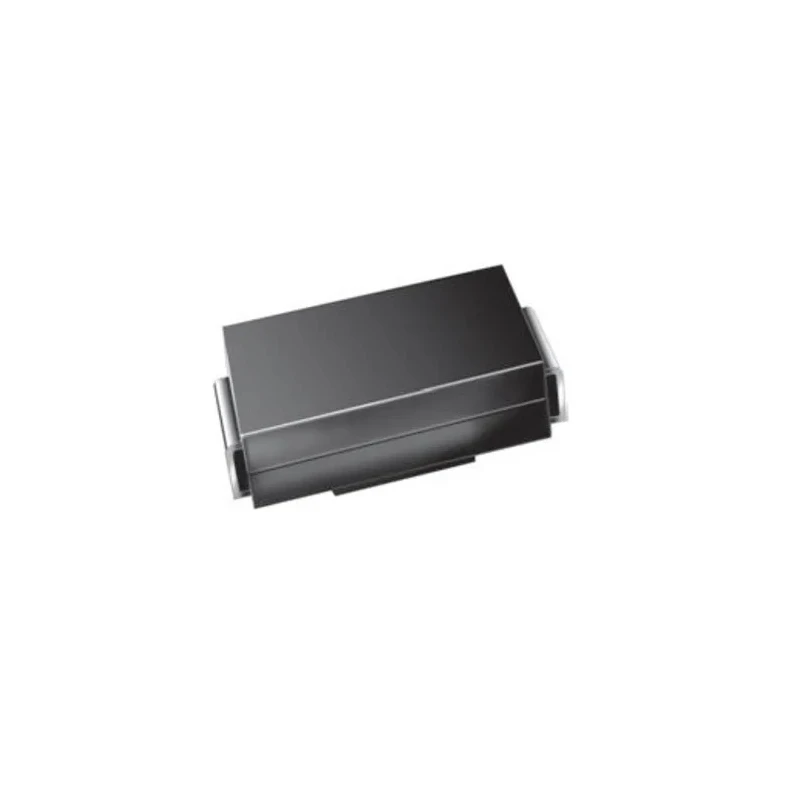

Vishay General Purpose Surface Mount Zener Diode 36V 1W 5% SMA (DO-214AC) SML4753AHE3_A/H
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 2.29mm |
| Length | 4.5mm |
| Model | SML4753AHE3_A/H |
| Mount Type | Surface |
| Series | SML47xx |
| Maximum Operating Temperature | 150°C |
| Package Type | SMA (DO-214AC) |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Automotive Standard | AEC-Q101 |
| Maximum Power Dissipation Pd | 1W |
| Diode Configuration | Single |
| Test Current It | 7mA |
| Maximum Reverse Leakage Current | 5μA |
| Nominal Zener Voltage Vz | 36V |
| Zener Type | General Purpose |
| Maximum Zener Impedance | 50Ω |
Key Features
- General purpose Zener diode designed for voltage regulation.
- Nominal Zener voltage of 36 volts with ±5% tolerance.
- Surface mount mount type with 2-pin SMA package (DO-214AC).
- Maximum power dissipation of 1 watt for reliable operation.
- Test current of 7mA ensuring stable performance.
- Low maximum Zener impedance of 50 ohms for minimal voltage drop.
- Maximum reverse leakage current of 5 microamperes.
- Operating temperature range from -65°C to 150°C.
Product Description
Vishay SML4753AHE3_A/H is a surface mount general purpose Zener diode rated for 36 volts nominal Zener voltage and 1 watt power dissipation. It is housed within the SMA (DO-214AC) surface mount package, featuring a compact 2-pin configuration optimized for space-efficient circuit integration.
This diode offers a standard Zener voltage tolerance of ±5%, making it highly suitable for precise voltage regulation tasks in electronic circuits.
The device supports a test current of 7mA and boasts a low maximum Zener impedance of 50 ohms, contributing to minimal voltage drop and stable operation. Its maximum reverse leakage current is capped at 5 microamperes, reflecting excellent reverse bias performance.
Designed for robust industrial use, this diode operates reliably across a wide temperature range from -65°C to 150°C. It complies with RoHS directives and meets IEC 61760-1 and IEC 61000-4-2 standards, guaranteeing environmental compliance and electrostatic discharge protection.
The SML4753AHE3_A/H series complies with the AEC-Q101 automotive quality standard, making it appropriate for automotive electronics applications requiring high reliability and durability.
General purpose Zener diode designed for voltage regulation. Nominal Zener voltage of 36 volts with ±5% tolerance. Surface mount mount type with 2-pin SMA package (DO-214AC). Maximum power dissipation of 1 watt for reliable operation.
Test current of 7mA ensuring stable performance. Low maximum Zener impedance of 50 ohms for minimal voltage drop. Maximum reverse leakage current of 5 microamperes. Operating temperature range from -65°C to 150°C. Compliant with RoHS and IEC 61760-1, IEC 61000-4-2 standards.
Automotive standard certified AEC-Q101 ensuring quality and reliability.
This Zener diode is ideal for use in electronic circuits requiring voltage stabilization, protection against voltage spikes, and ensuring consistent voltage supply in industrial, automotive, and consumer electronics applications. The compact surface mount package supports modern PCB assembly techniques.
Browse the Electronics & Electricals Semiconductor category at EnvMart for a comprehensive selection of Zener Diodes and related components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The nominal Zener voltage of this diode is 36 volts with a tolerance of ±5%.
The maximum power dissipation for this model is 1 watt, ensuring reliable operation.
This diode operates within a temperature range of -65°C to 150°C.
The maximum reverse leakage current is 5 microamperes.
It is housed in a surface mount SMA (DO-214AC) package with a 2-pin configuration.
The test current for stable performance is 7mA.
The maximum Zener impedance is 50 ohms, contributing to minimal voltage drop.
Yes, it complies with the AEC-Q101 automotive quality standard, ensuring high reliability.
The height of the diode is 2.29mm and the length is 4.5mm.
This Zener diode is suitable for voltage stabilization and protection against voltage spikes in industrial, automotive, and consumer electronics applications.
It complies with RoHS directives and meets IEC 61760-1 and IEC 61000-4-2 standards.
This diode has 1 element per chip, configured as a single diode.
