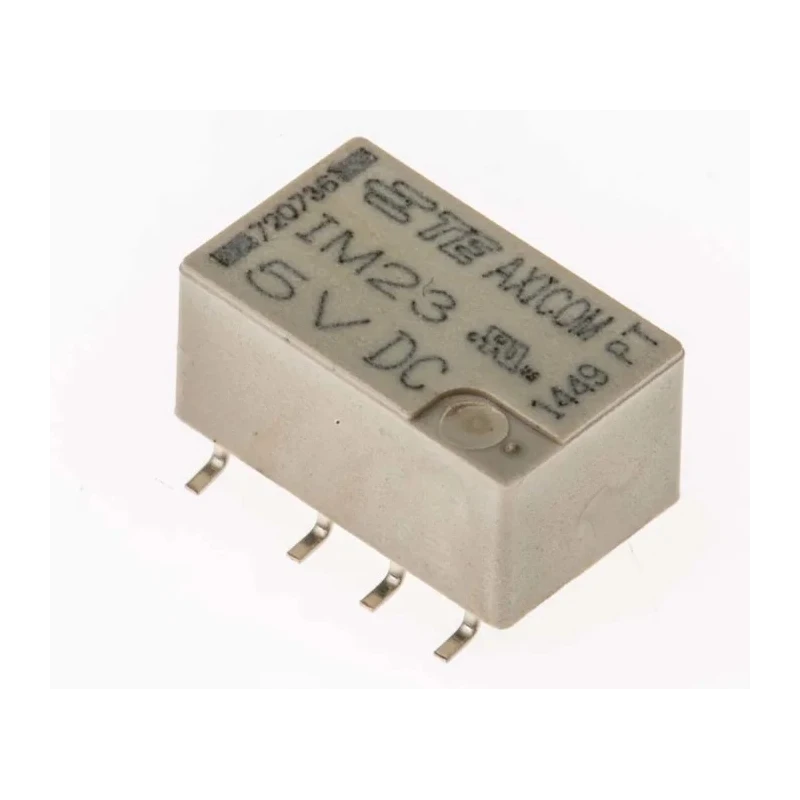

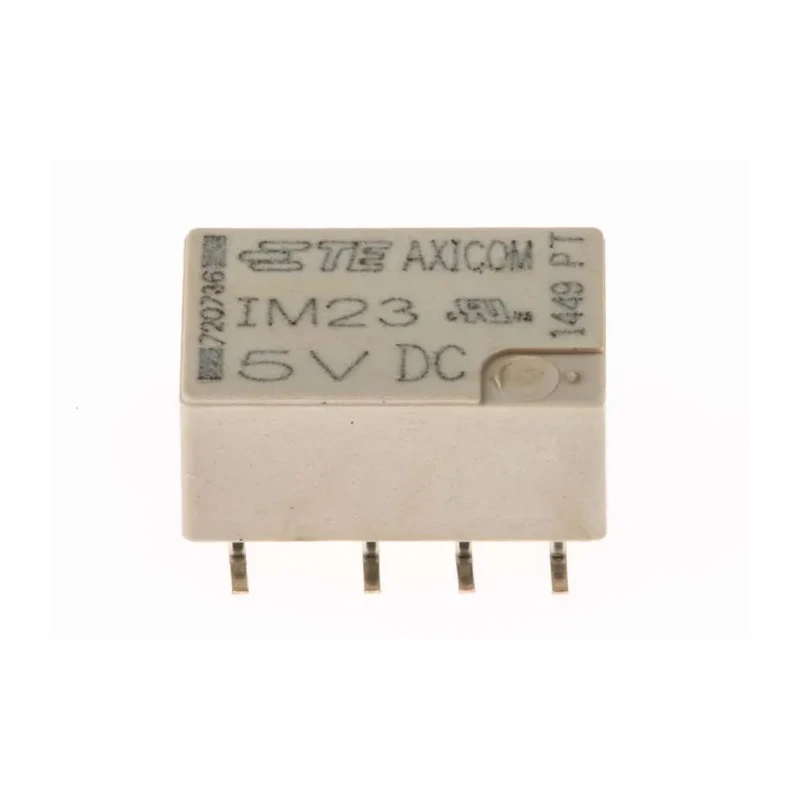

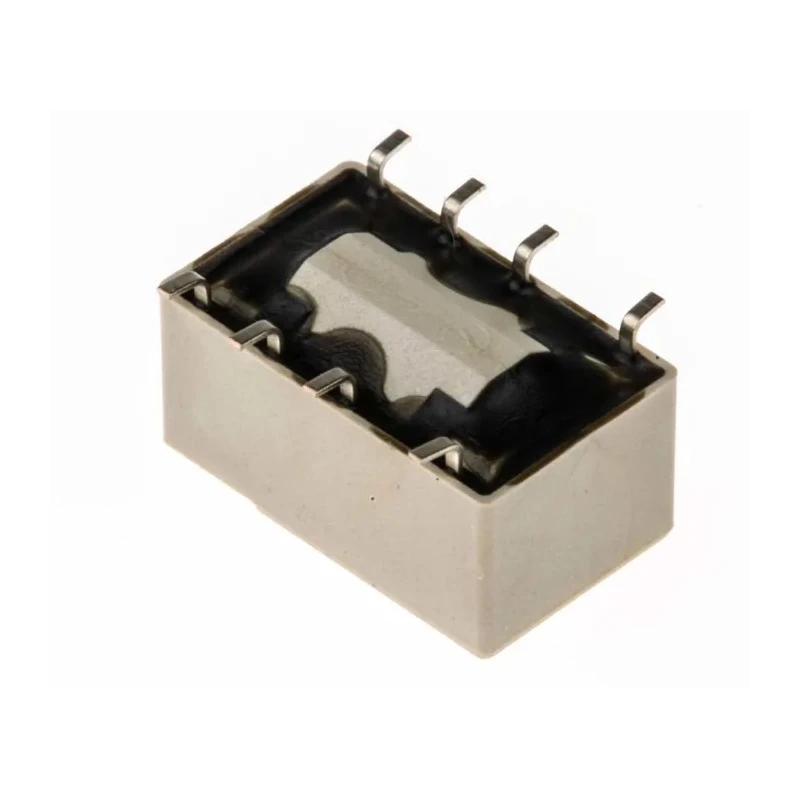

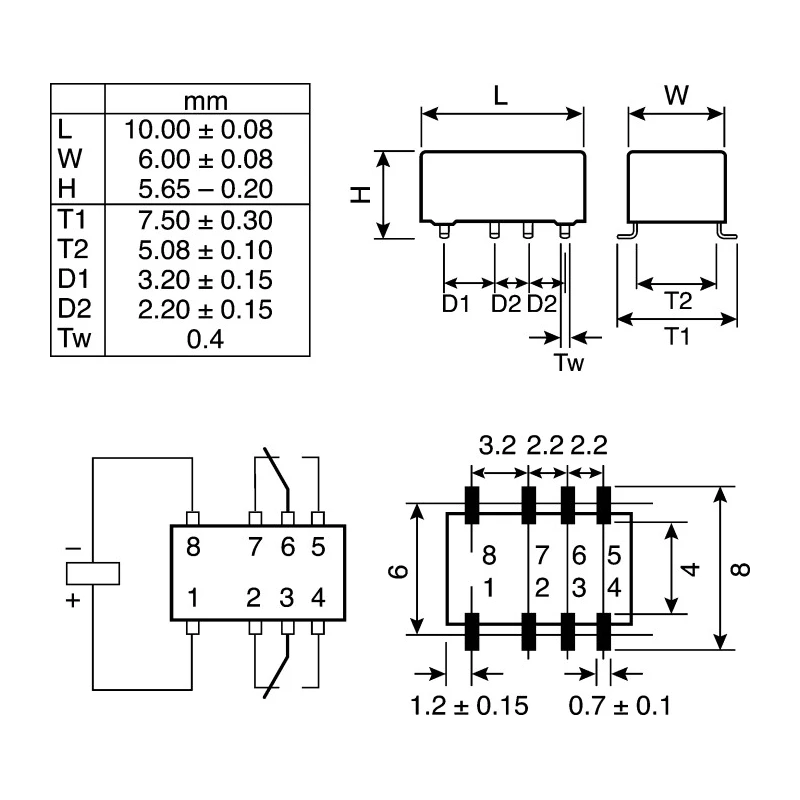

TE Connectivity Surface Signal Relay 5V dc Coil 2A DPDT IM23GR 2-1462039-9
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Height | 5.65mm |
| Length | 10mm |
| Model | IM23GR 2-1462039-9 |
| Width | 6mm |
| Mount Type | Surface |
| Contact Material | Gold Plated |
| Series | IM |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 2A |
| Terminal type | Solder |
| Standards/Approvals | RoHS |
| Coil Resistance | 500Ω |
| Coil Voltage | 5V dc |
| Switching DC Voltage | 220V dc |
| Switching AC Voltage | 250V ac |
| Coil Power | 50mW |
Key Features
- Compact slimline relay measuring 10 x 6 x 5.65 mm for efficient space utilization.
- Features gold plated bifurcated contacts for superior conductivity and corrosion resistance.
- Surface mount technology (SMT) with gull wing solder terminals for easy PCB assembly.
- Coil resistance of 500 Ω and power consumption of 50 mW operate reliably at 5V dc coil voltage.
- Rated switching current of 2A, switching AC voltage up to 250V ac, and DC voltage up to 220V dc.
- Designed for demanding environments with IP67 hermetic sealing and high mechanical shock resistance.
- Operating temperature range from -40°C to 85°C enables broad industrial application.
- Meets Telcordia TR-NWT-001089 surge standards and RoHS compliant for environmental safety.
Product Description
TE Connectivity IM23GR 2-1462039-9 Surface Signal Relay is a high-performance telecom and industrial signal relay featuring a slimline and low profile design measuring 10 x 6 x 5.65 mm. It operates on a 5V dc coil with a coil resistance of 500 Ω and low coil power consumption of 50 mW, making it energy efficient for prolonged use.
This relay offers a double-pole double-throw (DPDT) contact configuration with gold plated bifurcated contacts to ensure excellent conductivity and durability against corrosion. The surface mount device (SMD) design includes gull wing solder terminals enabling compatibility with automated PCB assembly techniques.
Rated for a switching current of 2A, it supports switching voltages up to 250V ac and 220V dc, providing versatile use in electronic control and signal conditioning systems. Its ruggedness is proven with hermetic sealing to IP67 standards, high mechanical shock resistance up to 300G functional and 500G survival, and insulation resistance exceeding 10⁹ Ω at 500V dc.
The relay meets critical industry surge testing standards such as Telcordia TR-NWT-001089 and EC 60950, guaranteeing reliability under electrical stress conditions. This makes it well suited for applications in telecom equipment, industrial automation, instrumentation, and electronic systems requiring compact and robust signal relays.
Compact slimline relay measuring 10 x 6 x 5.65 mm for efficient space utilization. Gold plated bifurcated contacts for superior conductivity and corrosion resistance. Surface mount (SMT) gull wing terminals for easy PCB assembly.
Coil resistance of 500 Ω and coil power of 50 mW at 5V dc coil voltage. Switching current rated at 2A with switching AC voltage of 250V and DC voltage of 220V. Hermetically sealed enclosure rated to IP67 for protection against dust and moisture.
High mechanical shock resistance and insulation resistance exceeding 10⁹ Ω. Surge capability certified to Telcordia TR-NWT-001089, suitable for telecom applications.
This TE Connectivity surface Signal Relay offers engineers a reliable and compact solution for high-density PCB layouts and demanding industrial environments. It enables performance optimization in automation, communication, and control equipment.
Discover more high-quality relays and electronic components from TE Connectivity on EnvMart for your automation and electronics design needs.
