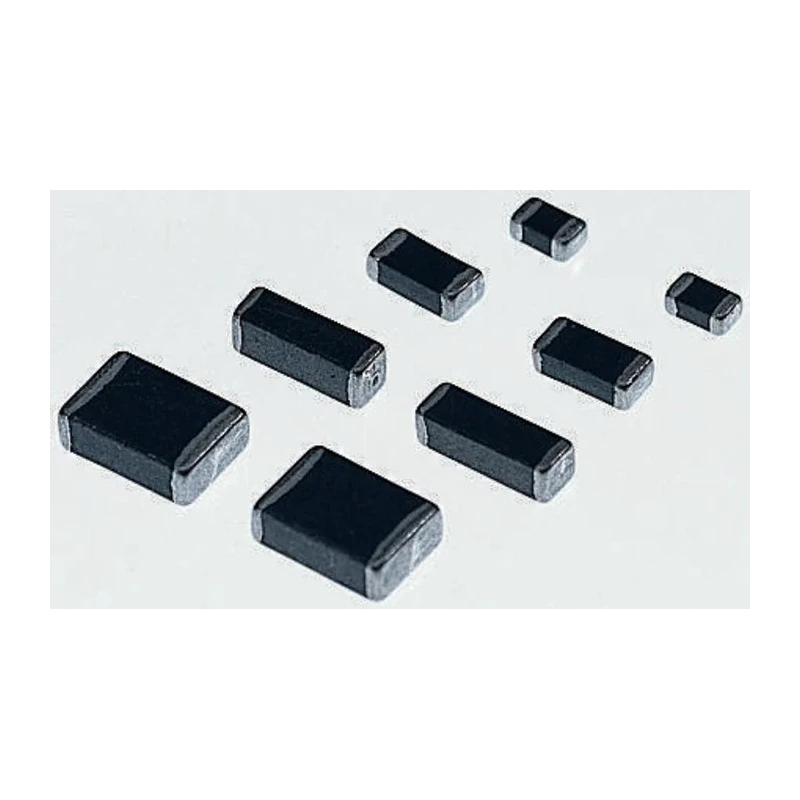

Wurth Elektronik Multilayer Surface Mount Inductor 100 nH 1206 Package Ferrite Core ±10% Tolerance 7447912

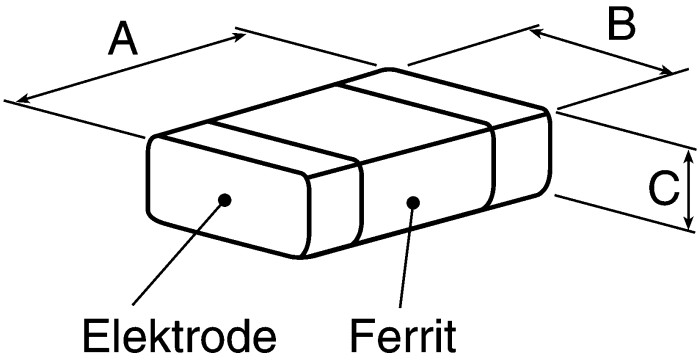

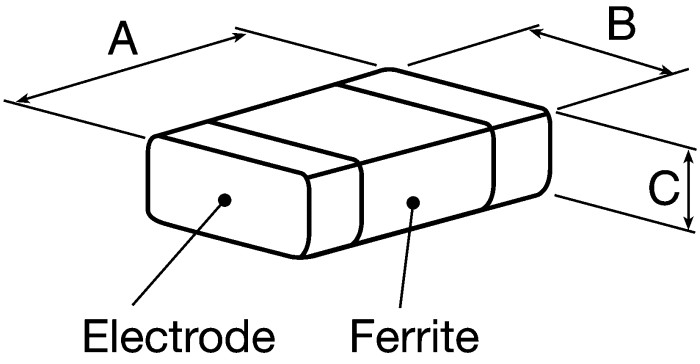

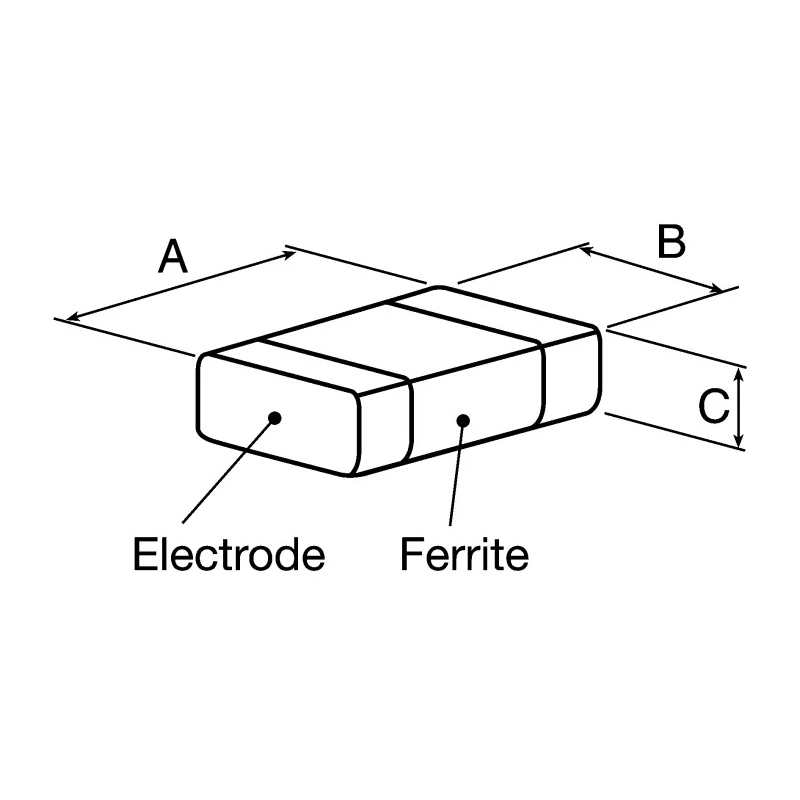

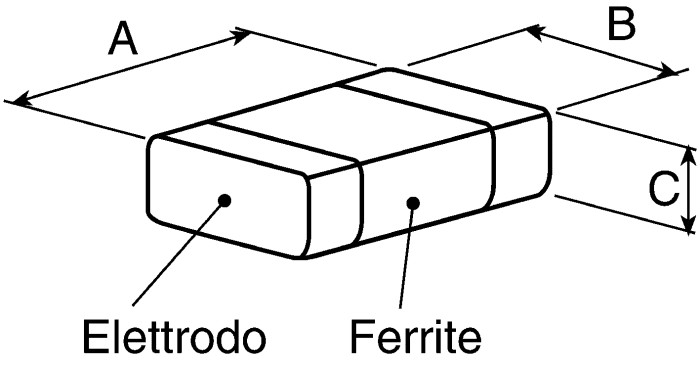

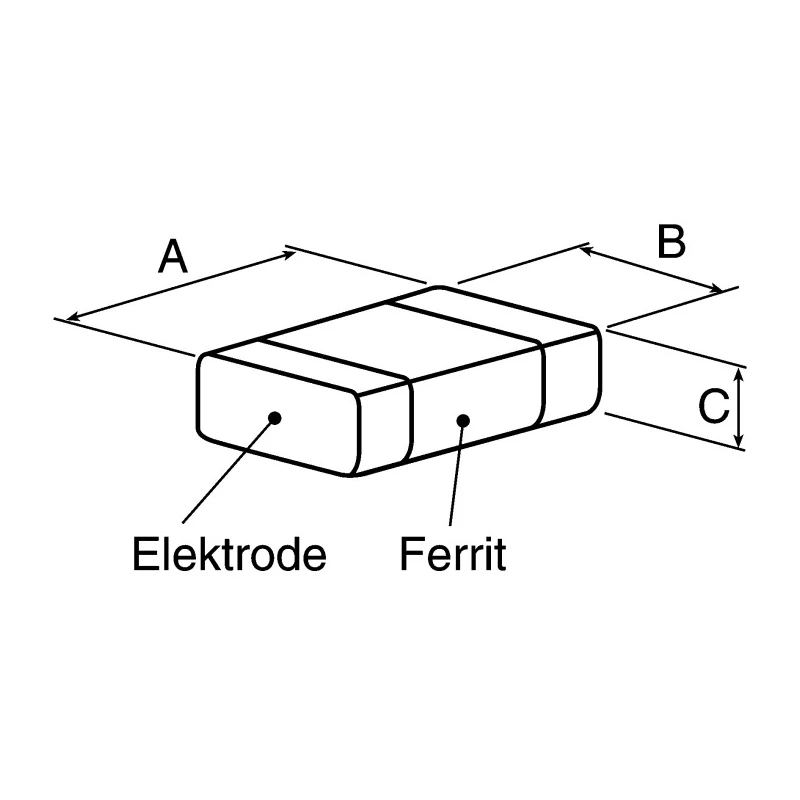

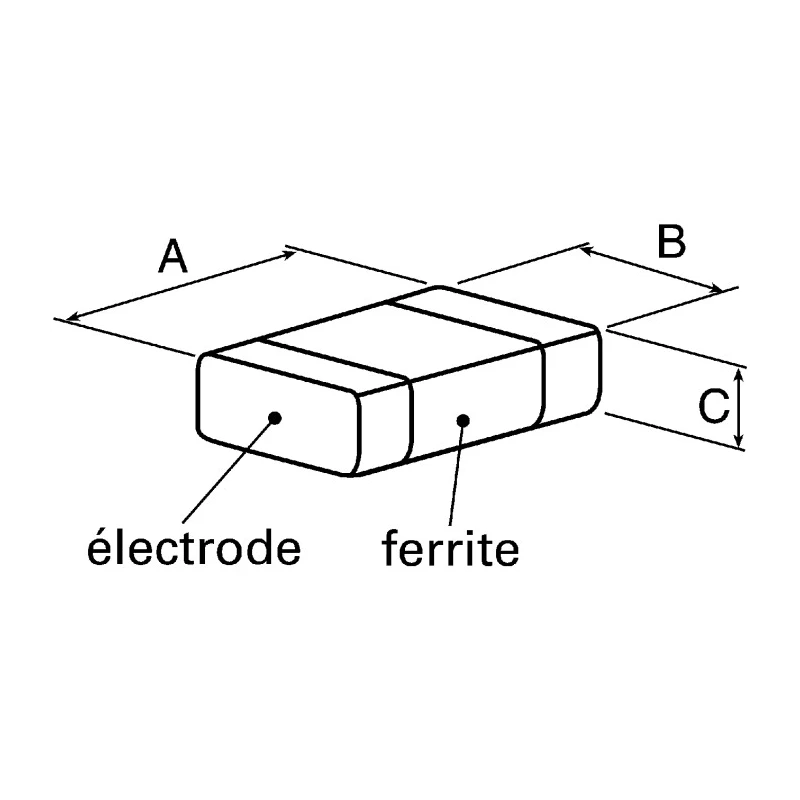

Wurth Elektronik 7447912 is a high-quality multilayer surface mount inductor featuring a ferrite core and an inductance of 100 nH with ±10% tolerance. This 1206 package component measures 3.2 mm in length, 1.1 mm in height, and 1.6 mm in depth, making it suitable for dense circuit board layouts.

It supports a maximum DC current of 250 mA and has a low maximum DC resistance of 250 mΩ, optimizing circuit efficiency and minimizing power losses. The inductor operates reliably over a wide temperature range from -55°C to 125°C, suitable for demanding environments in telecommunications, computing, filter circuits, oscillator circuits, and adapter networks.

The device features a multilayer construction with a ferrite core, enhancing magnetic performance and minimizing undesired coupling effects between components. The 7447912 uses surface mount termination style compatible with modern SMT manufacturing processes. It operates with a maximum self-resonant frequency of 270 MHz and maintains a minimum quality factor of 20.

This inductor meets key international standards including IEC 61249-2-21, JEDEC JS709B, REACH, and RoHS for quality and environmental compliance. Originating from Taiwan, Province Of China, the product ensures consistent performance tailored for professional industrial and electronic component applications.

Applications encompass telecommunications equipment, computer hardware, advanced filter and oscillator circuits, and adapter networks. Its compact size and electrical characteristics make it ideal for high-frequency and space-constrained industrial electronics.

Compact 1206 package size with length 3.2 mm, height 1.1 mm, and depth 1.6 mm. Maximum DC current rating of 250 mA with low DC resistance of 250 mΩ. Operating temperature range from -55°C to 125°C ensuring reliable performance.

Maximum self-resonant frequency of 270 MHz suitable for high-frequency circuits. Multilayer construction with ferrite core providing excellent magnetic shielding and stability. Surface mount termination style ideal for automated PCB assembly.

Compliant with IEC 61249-2-21, JEDEC JS709B, REACH, and RoHS standards. Minimum quality factor of 20 for efficient energy storage applications. Explore more electronics components including Inductors and surface mount devices at EnvMart for reliable industrial and manufacturing solutions.
