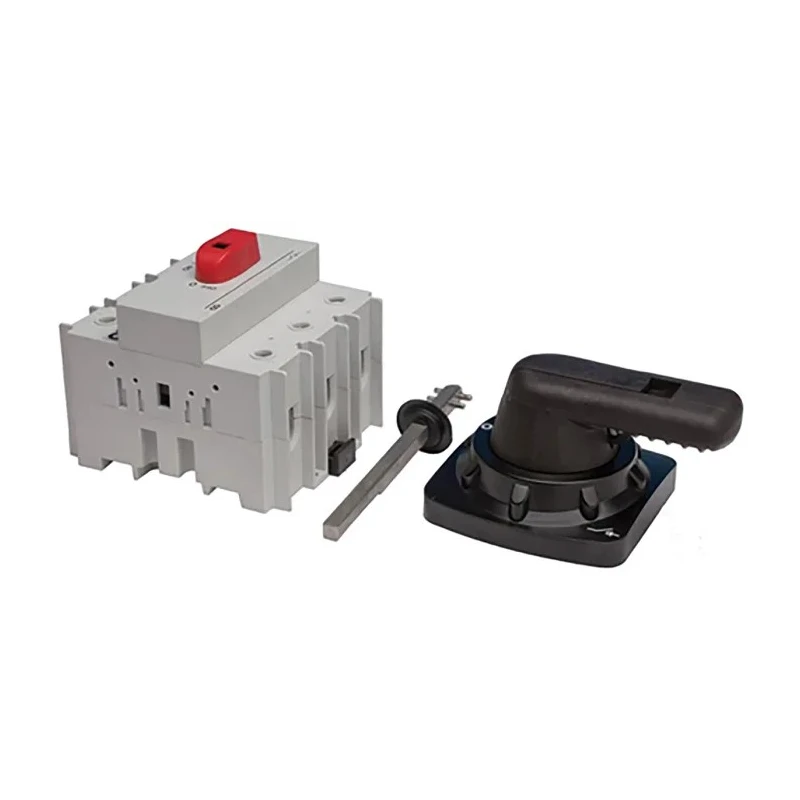

Craig & Derricott 3-Pole DIN Rail Isolator Switch, IP65, 125A, 63 kW SDC01253B

Craig & Derricott SDC01253B 3-Pole DIN Rail Isolator Switch is specially designed for industrial applications requiring electrical isolation and load break switching with enhanced safety features. Rated for 125A switching current and 63 kW power, this isolator switch supports three electrical poles providing reliable interruption of power circuits.

Its IP65 rated enclosure protects against dust and water ingress, making it suitable for demanding operational environments in manufacturing plants, HVAC systems, electrical automation, and other industrial installations. The black door interlock handle comes with an override facility, enhancing operational flexibility while maintaining safety compliance.

Mounted on a standard DIN rail, the device allows quick and secure integration into existing electrical panels. It features screw terminals for robust electrical connections and auxiliary contacts to interface with control circuits or signaling devices.

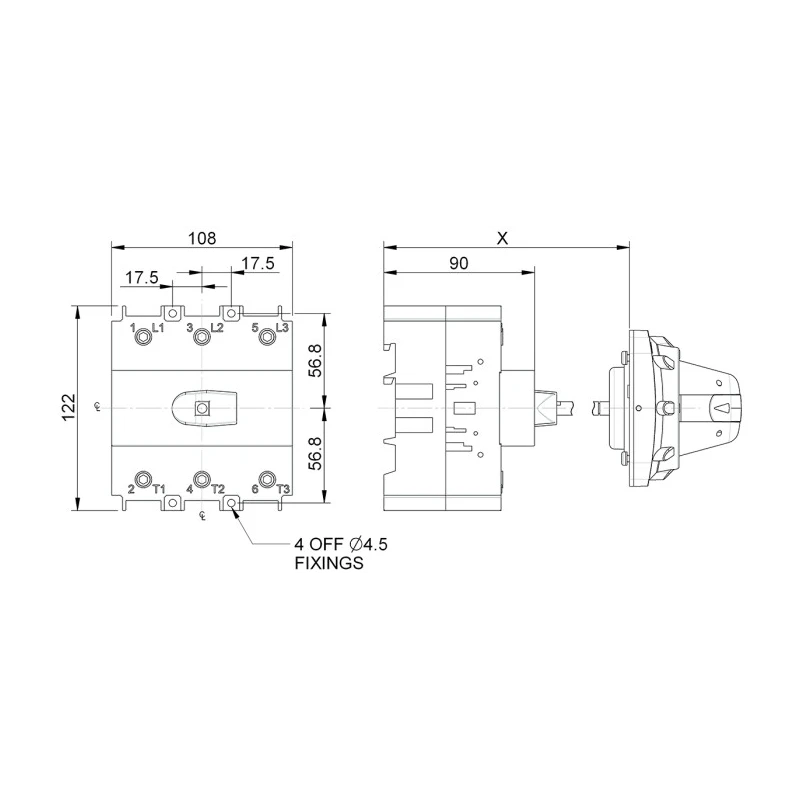

The compact form factor with 108 mm length, 122 mm width, and 90 mm depth minimizes panel space requirements while delivering high functionality. The isolator switch is manufactured in the United Kingdom and conforms to industrial quality requirements, though it carries no specific hazardous area or other certification ratings.

This product is ideal for use in electrical power isolation in industrial automation, machinery power supply, and general electrical distribution systems. It offers dependable switching capabilities for three-phase circuits up to 440V AC.

This isolator switch supports 3 electrical poles for robust three-phase power isolation. DIN rail mount type provides easy installation and integration into electrical panels. High ingress protection (IP65) ensures reliable operation in harsh industrial environments.

Black handle color with door interlock override feature enhances operational safety and usability. Switching power capacity of 63kW accommodates heavy-duty electrical loads. The device has screw terminal types providing secure electrical connections.

Operating temperature starts from 0°C, suitable for various indoor industrial settings. Auxiliary contacts are available for control circuit integration. Compact design dimensions: 108 mm length, 122 mm width, and 90 mm depth.

Manufactured in the United Kingdom, ensuring high-quality industrial standards. Explore more Isolator Switches and electrical components in the Electronics & Electricals category at EnvMart for quality and dependable industrial solutions.
