ABB 2-Pole DIN Rail Isolator Switch, IP20, 63A, SD202 Series, Toggle Actuator,

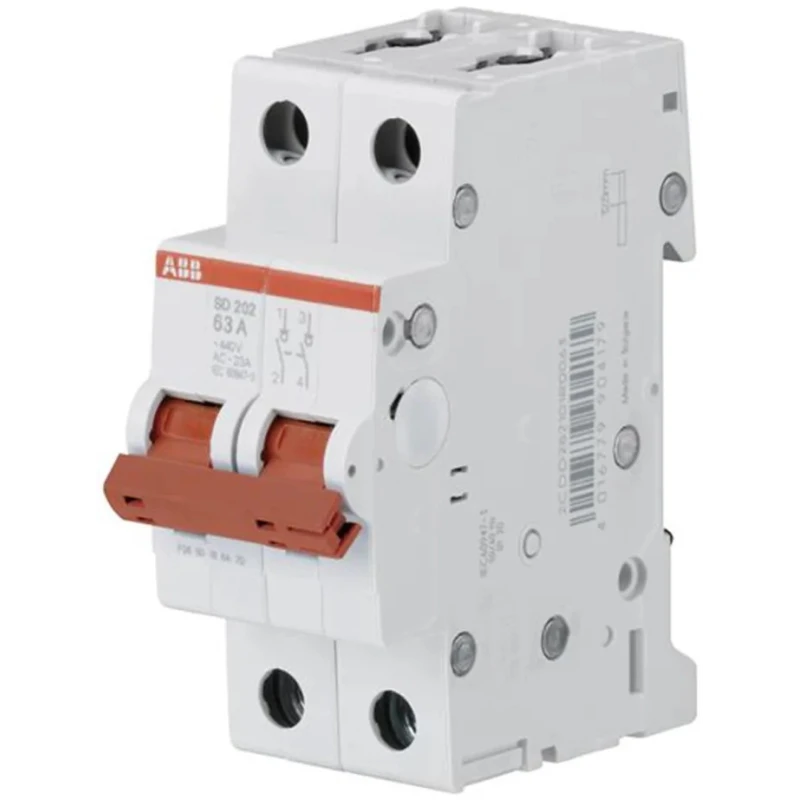

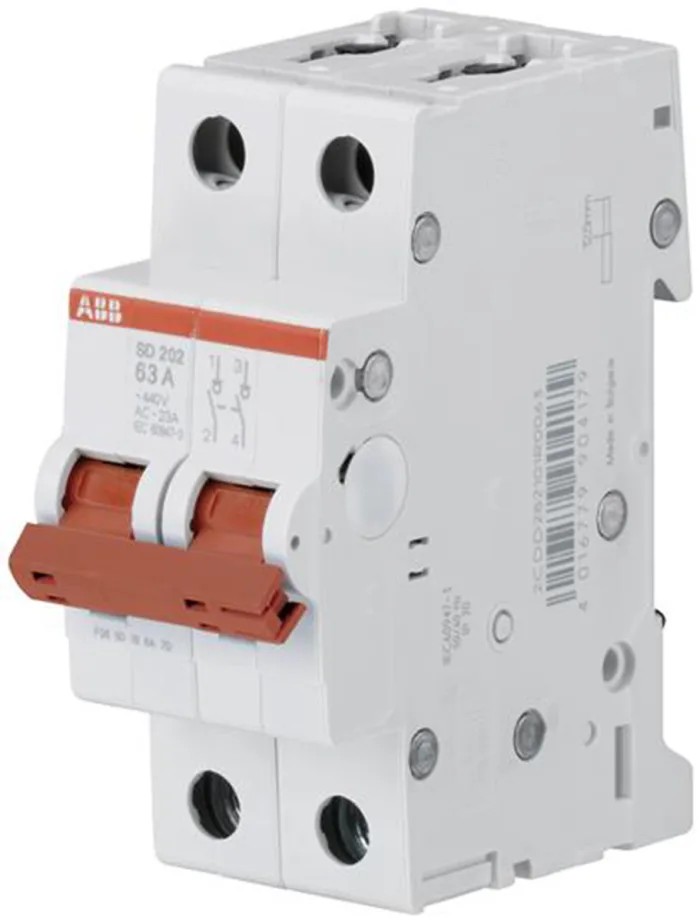

ABB presents the 2CDD282101R0063 model, a 2-Pole DIN Rail Isolator Switch that delivers reliable circuit isolation for demanding applications. This unit is specifically engineered to support industrial, automation, and commercial settings requiring secure and efficient disconnection of electrical circuits. The isolator switch features a robust toggle actuator, ensuring consistent performance and easy operation during maintenance or repair procedures.

Rated at 63A, the ABB SD202 series switch is suitable for use with high-power loads, providing an effective solution for safely de-energising circuits. The device's IP20 protection safeguards against accidental touch and ingress of objects greater than 12mm, contributing to operator safety. Its compact dimensions of 69mm x 35mm x 88mm enable space-saving installations, particularly valuable in panel-building, factory automation, and control cabinet layouts.

The switch supports padlock compatibility, allowing maintenance teams to securely isolate circuits using lockout/tagout procedures. Screw terminal connections provide reliable and straightforward wiring, eliminating the need for special tools. Designed for both AC and DC operation, the switch accepts up to 462V AC and 131V DC across its terminals, broadening its deployability in diverse settings such as industrial control systems, automotive workshops, and bottling plants.

Built for endurance, the isolator switch can withstand up to 20,000 mechanical cycles, offering substantial longevity for frequent use cases. With a broad operating temperature range from -25°C to 55°C, it is resilient against temperature variation in locations like manufacturing floors and commercial buildings. The switch incorporates auxiliary contacts for monitoring and control, further extending its functional versatility.

Every element is crafted to promote safety and reliability, with compliance to CE and RoHS standards. The toggle actuator is intuitive and sturdy, and the grey handle is visible, aiding identification in multi-device installations. Its practical enclosure design makes installation straightforward, optimizing workflow efficiency for electricians and maintenance staff. Typical application scenarios include isolating power feeds to machinery, distribution boards, and critical equipment where safe access or intervention is required.

In summary, the ABB 2CDD282101R0063 2-Pole DIN Rail Isolator Switch offers a comprehensive solution for circuit isolation with high amperage and safety features. Explore the EnvMart catalog for more industrial switchgear, circuit protection, and ABB power equipment solutions.
