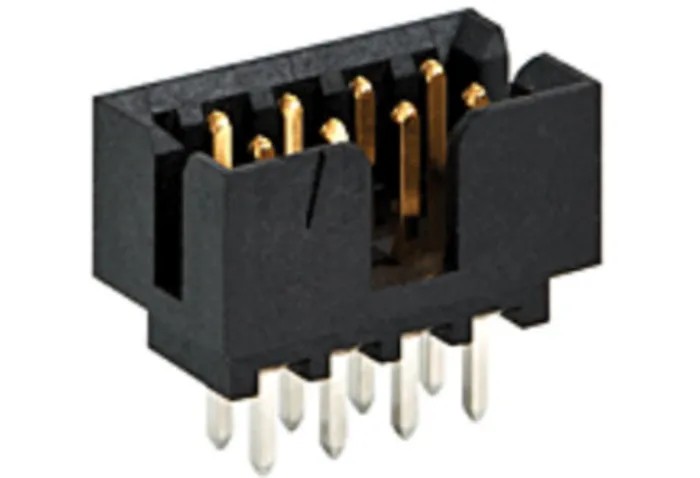

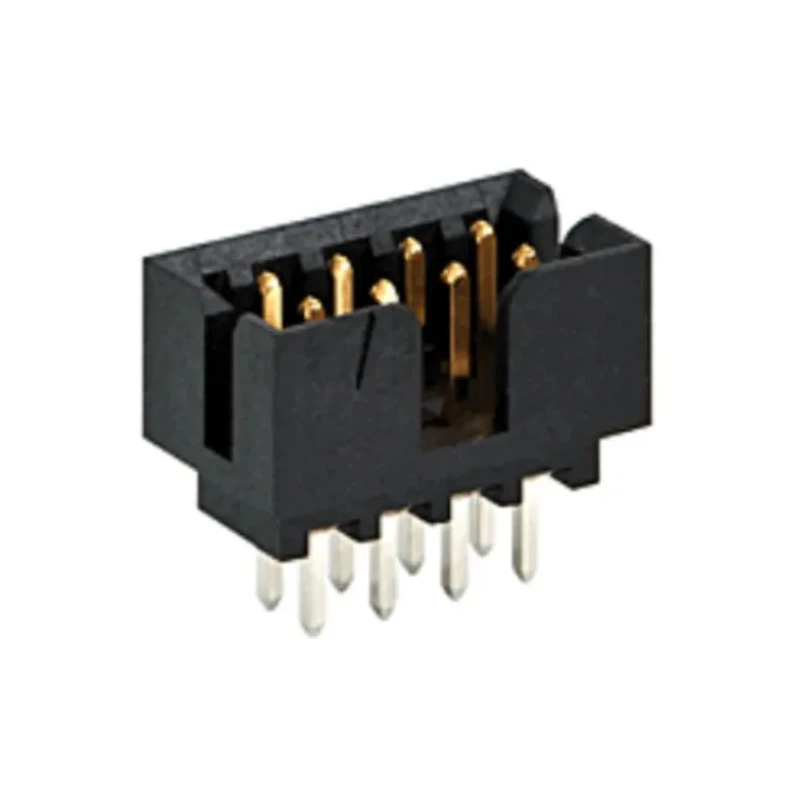

Molex Milli-Grid Series Vertical Through Hole PCB Header 20 Contacts 2 mm Pitch 2 Row Shrouded 878312020

The Molex Milli-Grid Series Vertical Through Hole PCB Header model 878312020 offers a high-quality connector solution for electronic assemblies requiring reliable electrical and mechanical connections. This PCB header features 20 contacts arranged in 2 rows with a 2 mm pitch, designed for vertical mounting through holes on printed circuit boards.

Constructed with phosphor bronze contacts plated in gold for enhanced conductivity and corrosion resistance, the component supports a voltage rating of 125V and a current rating of 2A, suitable for various low power electronic applications. The housing is made from durable nylon, providing excellent insulation and mechanical protection.

Operational in harsh environmental conditions, this connector supports temperatures ranging from -55°C to +105°C. The termination type is tin plated, and the contact gender is male with tail pin lengths of 2.5 mm and mating pin lengths of 3.6 mm, ensuring secure and stable connections.

The shrouded design offers improved alignment and protection, minimizing connection errors. The product complies with recognized safety standards CSA LR19980 and UL E29179 and is halogen free and RoHS compliant, ensuring environmental safety and regulatory adherence. The connector system utilizes the Milli Grid Connector System and is packaged in tubes for ease of handling and storage.

This PCB header is ideal for applications in electronics manufacturing, industrial control systems, and HVAC equipment requiring dependable connections. It is also suited for laboratories and commercial electronics where compact and efficient PCB connectors are essential.

The connector system is from the Milli-Grid Series featuring phosphor bronze contact material. Contacts are plated with gold for durability and conductivity. Rated for 125V voltage and 2A current, ensuring safe electrical performance.

Housing made of nylon material provides excellent insulation and mechanical strength. Operating temperature range from -55° to +105°C for diverse environments. Termination type is tin with male contact gender and a tail pin length of 2.5 mm.

Mating pin length measures 3.6 mm for secure mating connections. Shrouded design prevents misalignment and enhances connector protection. Meets CSA LR19980 and UL E29179 standards for quality and safety compliance. Manufactured in Malaysia and delivered in tube packaging with RoHS compliance.
