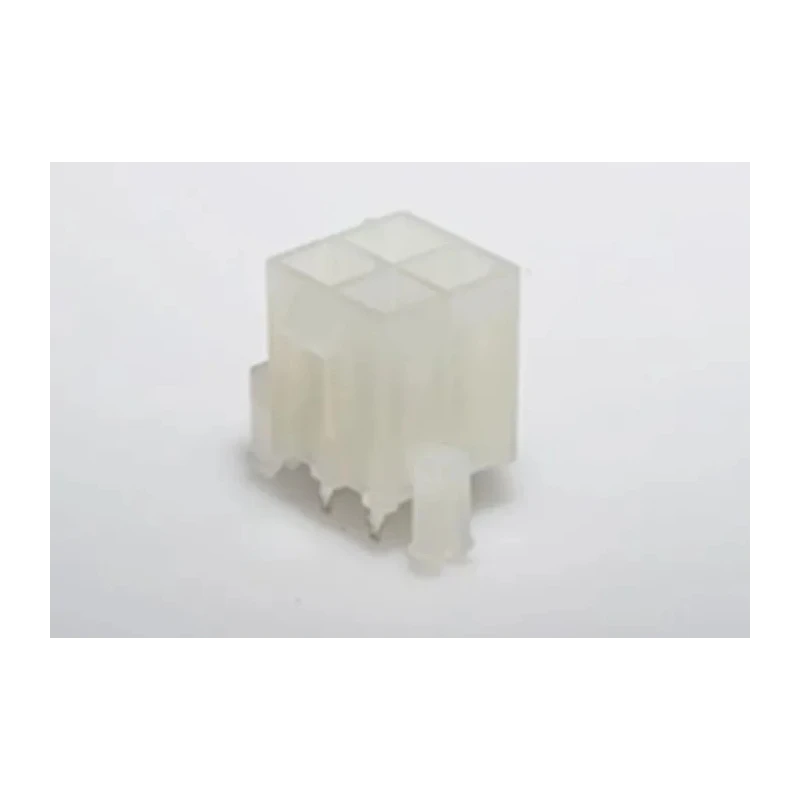

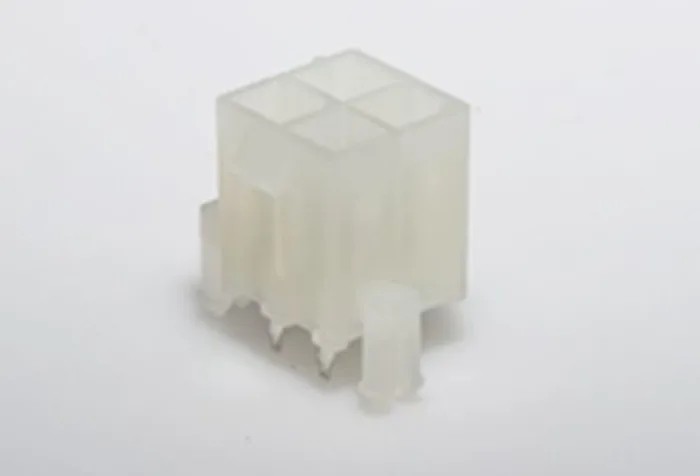

Molex Mini-Fit Jr Series Vertical Through Hole PCB Header, 4 Contacts, 4.2 mm Pitch, 2 Rows, Shrouded 39299042
Specifications
| Country of Origin | Mexico |
|---|---|
| Voltage | 600V |
| Brand | Molex |
| Orientation | Vertical |
| Current | 9A |
| Model | 39299042 |
| Mount Type | Through Hole |
| Housing Material | Nylon |
| Contact Material | Brass |
| Series | Mini-Fit Jr |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 2 |
| Pitch | 4.2mm |
| Standards/Approvals | CSA LR19980, UL E29179 |
| Contact Plating | Tin |
| Number of Contacts | 4 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
| Tail Pin Length | 3.5mm |
Key Features
- Features a 4.2 mm pitch between contacts for precise PCB integration.
- Constructed with durable nylon housing material ensuring excellent insulation.
- The brass contacts with tin plating provide reliable electrical conductivity.
- Rated for 9A current and 600V voltage for demanding electrical requirements.
- Operating temperature ranges from -40°C to 105°C for versatile usage environments.
- Shrouded design offers enhanced protection against contact damage and short circuits.
- Vertical orientation facilitates straightforward through-hole mounting on PCBs.
- Meets industry standards including CSA LR19980 and UL E29179 for safety compliance.
Product Description
Molex 39299042 Mini-Fit Jr Series Vertical Through Hole PCB Header is an industrial-grade wire-to-board connector with 4 contacts arranged in 2 rows and a contact pitch of 4.2 mm. Designed for robust electrical connections, this PCB header incorporates a high-quality nylon housing that is shrouded to protect the contacts and prevent accidental shorting.
The connector features brass contacts plated with tin, ensuring high conductivity and corrosion resistance, suitable for demanding electronics applications. Rated at 9A and 600V, it supports medium power requirements in diverse environments, with an operating temperature range spanning from -40°C up to 105°C.
Its vertical orientation facilitates easy through-hole mounting onto printed circuit boards, making it ideal for industrial electronics assemblies, power distribution modules, and general electrical component interfacing.
This connector complies with CSA LR19980 and UL E29179 standards, assuring safety and conformity in industrial and commercial applications. The 3.5 mm tail pin length supports reliable solder termination on PCBs.
Manufactured in Mexico, the product ensures consistent build quality and reliability for use in electronics manufacturing, assembly, and repair sectors. Features a 4.2 mm contact pitch for precise PCB mounting. Brass contact material with tin plating for corrosion resistance.
Shrouded nylon housing protects contacts and enhances durability. Rated for 9A current and 600V voltage for medium-power applications. Wide operating temperature range from -40°C to 105°C. Vertical orientation for through-hole PCB mounting.
Compliance with CSA LR19980 and UL E29179 safety standards. 3.5 mm tail pin length for secure solder connections. Manufactured in Mexico ensuring quality control.
This Molex Mini-Fit Jr Series connector is suitable for industrial electronics, power modules, and equipment requiring reliable PCB interfacing with medium voltage and current ratings. Explore a broad range of PCB Headers and connectors in EnvMart’s electronics components category for all your assembly needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for a current of 9A and a voltage of 600V, suitable for medium power applications.
The contact pitch for this PCB header is 4.2 mm, allowing for precise integration on printed circuit boards.
It features a nylon housing for insulation and brass contacts plated with tin for reliable electrical conductivity and corrosion resistance.
This unit operates effectively within a temperature range of -40°C to 105°C, making it versatile for various environments.
It is designed for through-hole mounting, facilitating straightforward installation on PCBs.
It meets CSA LR19980 and UL E29179 standards, ensuring safety and compliance for industrial and commercial applications.
This model has 4 contacts arranged in 2 rows, providing a compact connection solution.
The tail pin length is 3.5 mm, which supports secure solder termination on printed circuit boards.
It utilizes a wire-to-board connector system, suitable for various electrical interfacing applications.
The connector is designed for vertical orientation, which aids in easy mounting on PCBs.
This PCB header is manufactured in Mexico, ensuring consistent build quality and reliability.
The contact gender for this model is male, designed for secure connections with compatible female connectors.
