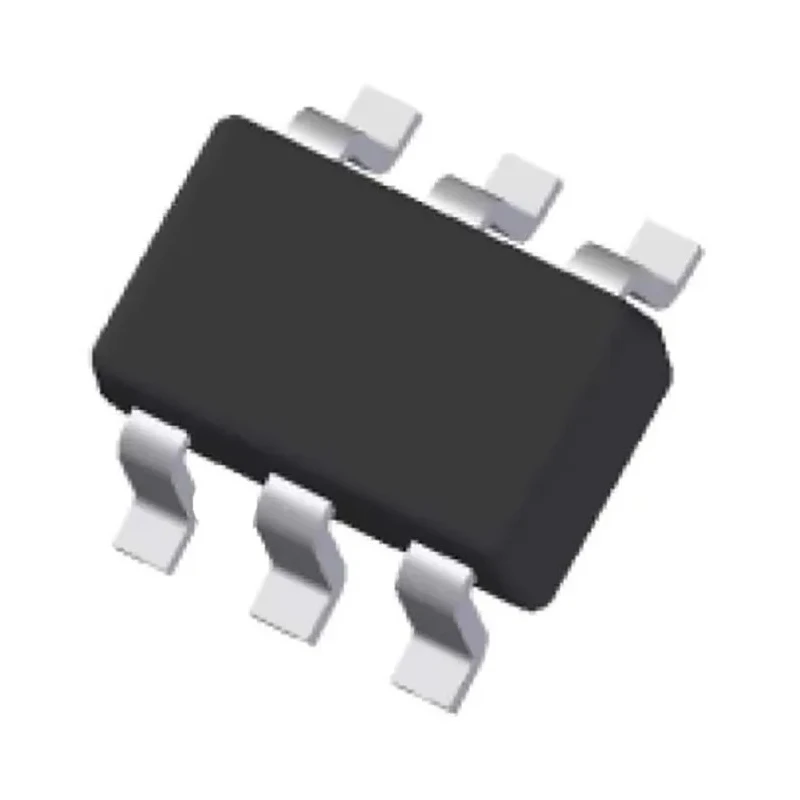

DiodesZetex High Side 1 Load Switch Power Switch IC 6-Pin TSOT-25 AP22615BWU-7

Free Delivery in India | Lowest Global Shipping Charges

DiodesZetex High Side 1 Load Switch Power Switch IC 6-Pin TSOT-25 AP22615BWU-7

Name: DiodesZetex High Side 1 Load Switch Power Switch IC 6-Pin TSOT-25 AP22615BWU-7
Brand: DiodesZetex
SKU: 165694
Price: 0.77 USD
Availability: InStock



Category Power Switch IC Brand DiodesZetex Condition New

Specifications

Country of Origin	China
Brand	DiodesZetex
Height	1mm
Length	3mm
Model	AP22615BWU-7
Width	2.8mm
Mount Type	Surface
Number of inputs	1
Series	AP2261
Maximum Operating Temperature	85°C
Package Type	TSOT-25
Minimum Operating Temperature	-40°C
Operating Current	3A
Number of outputs	5
Pin Count	6
Maximum Supply Voltage	5.5V
Minimum Supply Voltage	3V
Switch On Resistance RdsOn	50mΩ

Key Features

The device features a fast short-circuit and overvoltage response for robust system protection.
Offers a low on-resistance of 50mΩ ensuring efficient current conduction.
Supports an operating current of up to 3A suitable for moderate power loads.
Compact TSOT-25 surface mount package with 6 pins and dimensions 3mm x 2.8mm x 1mm.
Operates over a supply voltage range from 3V to 5.5V.
Temperature rating from -40°C up to 85°C for reliable operation in varied environments.
Active low enable pin with fast role swap functionality.
Designed to improve system robustness with output overvoltage protection.

Product Description

DiodesZetex AP22615BWU-7 is a high side single-channel 3A power switch integrated circuit designed for load switch applications requiring current limiting and output overvoltage protection. This 6-pin IC housed in a low profile TSOT-25 surface mount package is ideal for USB power protection and hot-swap environments.

The device provides a low on-resistance (RdsOn) of 50mΩ, ensuring minimal conduction losses and efficient energy use during operation. It operates over a supply voltage range of 3V to 5.5V and supports an operating current of 3A, making it suitable for various electronic power management applications.

Featuring an active low enable input and fast short-circuit response times, it enhances system reliability and protects connected loads from overcurrent and overvoltage events. The thermal efficiency and compact dimensions of 3mm length, 2.8mm width, and 1mm height facilitate integration into space-constrained electronic assemblies.

The operating temperature range from -40°C to 85°C allows deployment in diverse environmental conditions, including automotive and industrial equipment. The device does not carry automotive certification but ensures robust performance within its operating limits.

Applications include power management in consumer electronics, industrial automation, and communication devices where safe load switching and protection are critical. The device is manufactured in China under the AP2261 series from DiodesZetex.

Fast response for short-circuit and overvoltage protection. Low on-resistance of 50mΩ reduces power loss. Supports up to 3A operating current in a compact TSOT-25 package. Wide operating temperature range from -40°C to 85°C.

Supply voltage range from 3V to 5.5V for versatile power management. Active low enable pin enhances control and safety. Thermally efficient low profile package ideal for compact designs. Suitable for USB power protection and hot-swap applications.

This product is part of the Power Switch IC category on EnvMart, providing reliable and efficient power switch solutions for industrial, electronic, and commercial applications.
