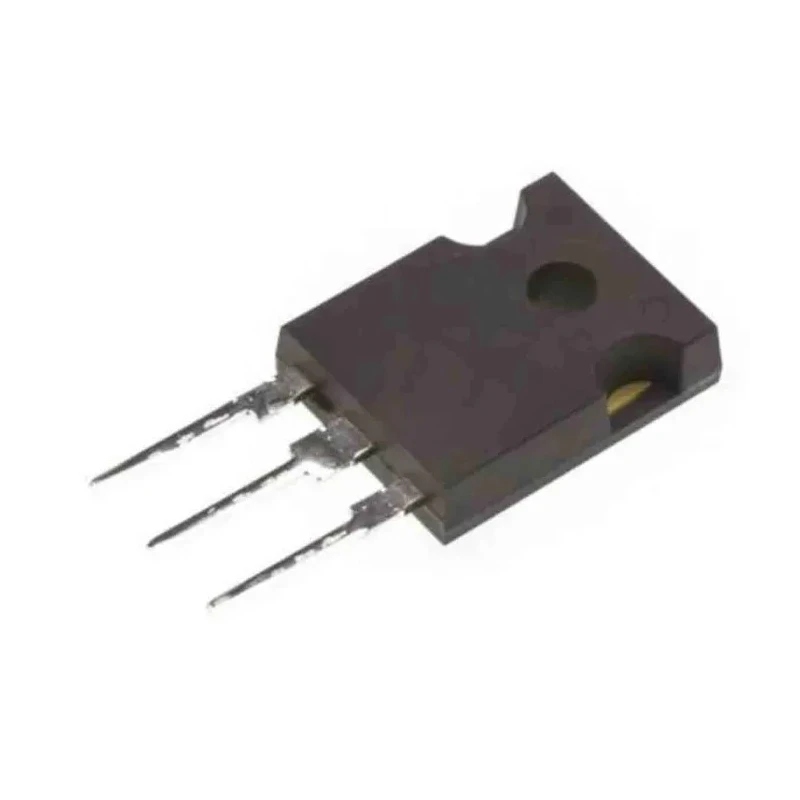

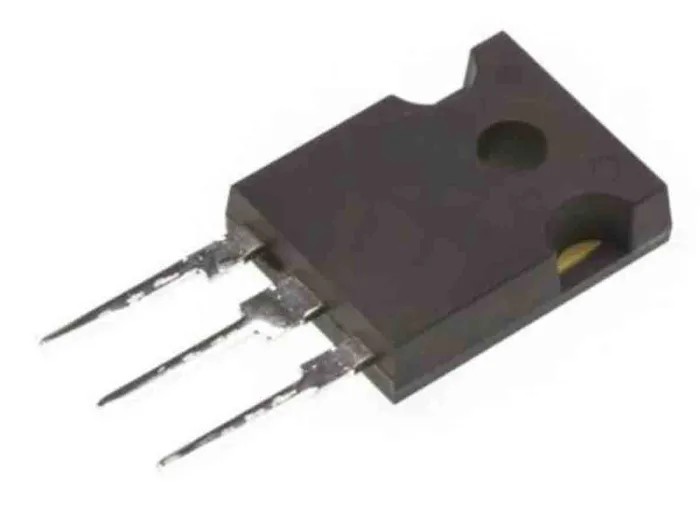

onsemi N-Channel Field Stop Trench IGBT 80 A 650 V 3-Pin TO-247 Through Hole AFGHL40T65SQ
Specifications
| Country of Origin | India |
|---|---|
| Brand | onsemi |
| Model | AFGHL40T65SQ |
| Mount Type | Through Hole |
| Series | Trench |
| Maximum Operating Temperature | 175°C |
| Package Type | TO-247 |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | RoHS |
| Pin Count | 3 |
| Maximum Continuous Collector Current Ic | 80A |
| Maximum Collector Emitter Voltage Vceo | 650V |
| Maximum Collector Emitter Saturation Voltage VceSAT | 1.6V |
| Automotive Standard | AEC-Q101 |
| Channel Type | N |
| Maximum Power Dissipation Pd | 1W |
| Maximum Gate Emitter Voltage VGEO | ±3 V |
Key Features
- Fast switching technology optimized for automotive applications.
- High current capability rated at 80 amperes.
- AEC-Q101 qualification ensuring automotive standard compliance.
- RoHS compliant with environmentally conscious manufacturing.
- Compact 3-pin TO-247 package suitable for through-hole mounting.
- Operates in temperature range from -55°C to 175°C.
- Maximum gate emitter voltage tolerance of ±3 volts.
- Maximum collector emitter saturation voltage of 1.6 volts for efficient conduction.
Product Description
onsemi AFGHL40T65SQ is a high-performance N-Channel Field Stop Trench Insulated Gate Bipolar Transistor (IGBT) designed for automotive and industrial applications. This component supports a maximum continuous collector current of 80 A and withstands collector emitter voltages up to 650 V, making it suitable for high power electronic circuits.
Encapsulated in a 3-pin TO-247 through-hole package, this IGBT facilitates ease of mounting and reliable thermal performance. The device supports operation in extreme environments with an operating temperature range from -55°C to 175°C, meeting automotive-grade standards with AEC-Q101 qualification.
With a maximum power dissipation of 1 watt, the transistor features a low collector emitter saturation voltage of 1.6 V, improving efficiency and reducing heat generation in power switching applications. It accepts a maximum gate emitter voltage of ±3 V, enhancing switching speed and reliability.
The onsemi AFGHL40T65SQ IGBT is RoHS compliant, aligning with environmental regulations. It is optimized for both hard and soft switching in automotive power electronic topologies, enabling enhanced performance and durability.
This product finds utility in industrial power control systems, automotive motor drives, power inverters, and other high-current switching solutions requiring robust semiconductor components.
Fast switching technology optimized for automotive applications. High current capability rated at 80 amperes. AEC-Q101 qualification ensuring automotive standard compliance. RoHS compliant with environmentally conscious manufacturing.
Compact 3-pin TO-247 package suitable for through-hole mounting. Operates in temperature range from -55°C to 175°C. Maximum gate emitter voltage tolerance of ±3 volts. Maximum collector emitter saturation voltage of 1.6 volts for efficient conduction.
Explore our comprehensive range of electronic semiconductors for automotive and industrial applications at EnvMart for reliable performance and quality assurance.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous collector current for the AFGHL40T65SQ is rated at 80 A.
This IGBT can withstand a maximum collector emitter voltage of 650 V.
It operates within a temperature range from -55°C to 175°C.
The maximum collector emitter saturation voltage for this model is 1.6 V.
The AFGHL40T65SQ comes in a compact 3-pin TO-247 package suitable for through-hole mounting.
Yes, it is RoHS compliant, ensuring adherence to environmental regulations.
This model meets the AEC-Q101 qualification, ensuring compliance with automotive standards.
The maximum gate emitter voltage tolerance is ±3 V.
The maximum power dissipation for this IGBT is 1 watt.
It is suitable for automotive motor drives, power inverters, and other high-current switching solutions.
The AFGHL40T65SQ features an N-channel configuration.
The minimum operating temperature for the AFGHL40T65SQ is -55°C.
