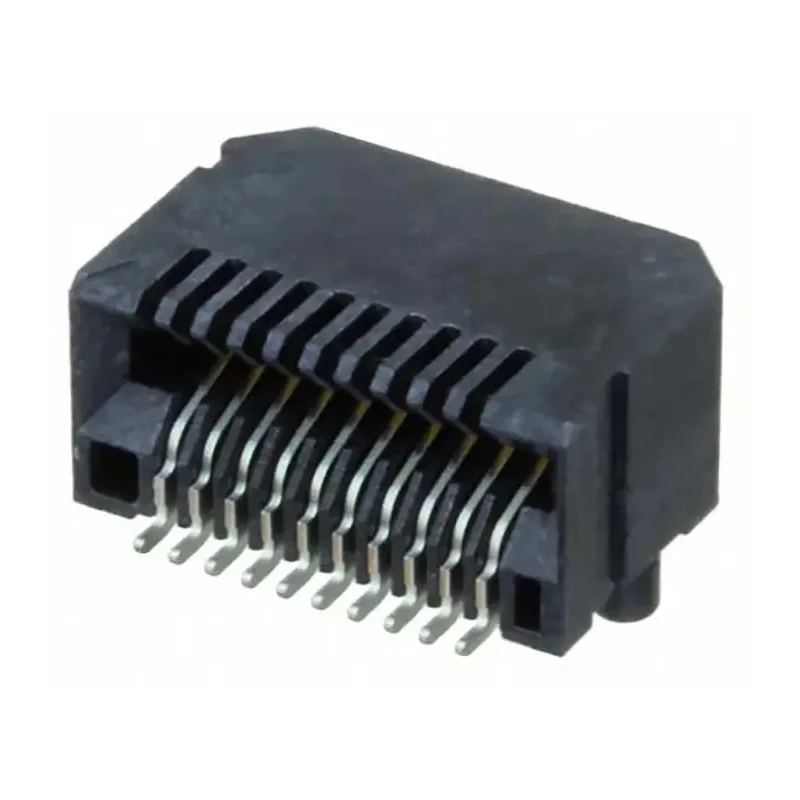

Samtec MECT Series Vertical Edge Connector Female, Surface Mount, 10 Contacts, 2 Row, Gold Plated MECT-110-01-MM-D-RA1
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 265V |
| Brand | Samtec |
| Orientation | Vertical |
| Current | 2A |
| Model | MECT-110-01-MM-D-RA1 |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Phosphor Bronze |
| Series | MECT |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Contact Plating | Gold |
| Number of Contacts | 10 |
| Contact Gender | Male |
| Connector Gender | Female |
| Card Type | Edge |
| Card Thickness | 1mm |
Key Features
- The connector features a vertical orientation suitable for edge card interfaces.
- It has 10 gold-plated contacts ensuring reliable conductivity and corrosion resistance.
- Constructed with phosphor bronze contact material for high durability.
- Designed with solder termination for secure PCB mounting.
- Supports a maximum current rating of 2A and voltage up to 265V.
- Operates reliably from -55°C to 125°C temperature range.
- Housing is made of liquid crystal polymer ensuring robust insulation and mechanical stability.
- This edge connector mates with SFP, SFP+, XFP, or XENPAK transceivers.
Product Description
Samtec MECT-110-01-MM-D-RA1 vertical edge connector female is a high-quality surface mount connector designed for reliable and precise edge card connections. It has 10 gold-plated contacts arranged in 2 rows with phosphor bronze contact material providing excellent conductivity and durability. This connector supports a current rating of 2A and is rated for voltage up to 265V, making it suitable for robust electronic applications.
The connector's housing is made from liquid crystal polymer, offering resistance to high temperatures and mechanical stresses. It is designed to operate across a broad temperature range from -55°C up to 125°C, ensuring reliable performance in demanding industrial and commercial environments.
Termination is via soldering, allowing secure attachment to printed circuit boards. This MECT series Edge Connector is compatible with SFP, SFP+, XFP, and XENPAK transceivers, commonly used in communications hardware.
The 1mm card thickness compatibility allows integration with standard edge cards. Its vertical orientation and surface mount type make it ideal for compact and high-density electronic assemblies.
The connector features vertical orientation suited to edge card interfaces. Gold-plated contacts provide excellent conductivity and corrosion resistance. Phosphor bronze contacts assure durable electrical connections. Solder termination enables firm PCB attachment.
Electrical ratings include 2A current and 265V voltage capacity. Temperature range from -55°C to +125°C for diverse operating conditions. Liquid crystal polymer housing ensures insulation and mechanical strength. Compatible with common transceiver modules like SFP and XFP.
Supports 1mm card thickness standard. Ideal for electronic component, power connector, and computing connector applications.
This connector is widely used in electronics manufacturing, telecommunications, industrial automation, and computing hardware development. Choose Samtec MECT series connectors for reliable, high-performance edge card connectivity.
Explore the Electronics Components category at EnvMart for a comprehensive range of connectors and related devices designed for industrial and commercial electronics applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This edge connector supports a maximum current rating of 2A and a voltage rating of up to 265V.
It operates reliably within a temperature range of -55°C to 125°C.
The contacts are made from phosphor bronze and are gold plated, while the housing is constructed from liquid crystal polymer.
This model features 10 contacts arranged in 2 rows.
It utilizes solder termination for secure attachment to printed circuit boards.
Yes, its vertical orientation and surface mount type make it ideal for compact and high-density electronic assemblies.
It supports a card thickness of 1mm, making it compatible with standard edge cards.
This connector is compatible with SFP, SFP+, XFP, and XENPAK transceivers commonly used in communications hardware.
The connector features a vertical orientation suitable for edge card interfaces.
The connector is manufactured in India.
The connector gender is female, while the contact gender is male.
Gold plating ensures reliable conductivity and corrosion resistance for the contacts.
