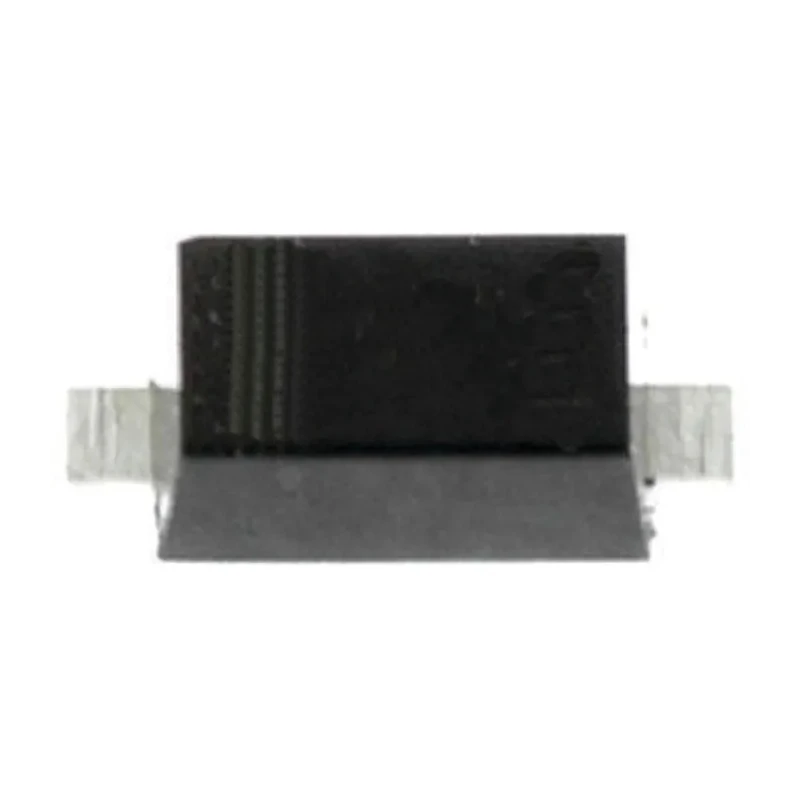

Nexperia 40 V 500 mA Schottky Diode 2-Pin SOD-123F PMEG4005EH,115

Free Delivery in India | Lowest Global Shipping Charges

Nexperia 40 V 500 mA Schottky Diode 2-Pin SOD-123F PMEG4005EH,115

Name: Nexperia 40 V 500 mA Schottky Diode 2-Pin SOD-123F PMEG4005EH,115
Brand: Nexperia
SKU: 162532
Price: 0.14 USD
Availability: InStock



Category Schottky Diodes & Rectifiers Brand Nexperia Condition New

Specifications

Country of Origin	India
Brand	Nexperia
Height	1.2mm
Length	2.7mm
Model	PMEG4005EH,115
Width	1.7mm
Mount Type	Surface
Series	PMEG4005EH
Maximum Operating Temperature	150°C
Package Type	SOD-123F
Minimum Operating Temperature	-65°C
Pin Count	2
Maximum Continuous Forward Current If	500mA
Peak Reverse Repetitive Voltage Vrrm	40V
Diode Configuration	Single
Rectifier Type	Schottky
Peak Reverse Current Ir	20μA
Peak Non-Repetitive Forward Surge Current Ifsm	10A
Maximum Forward Voltage Vf	470mV

Key Features

This diode is configured as a single Schottky barrier diode.
It is designed for surface mount applications in the SOD-123F package type.
Maximum continuous forward current is 500 mA with a peak forward surge current of 10 A.
It features a low forward voltage of 470 mV and low leakage current valued at 20 μA peak reverse current.
Package dimensions measure 2.7 mm length, 1.7 mm width, and 1.2 mm height.
The diode operates in a temperature range from -65°C to 150°C.
It is optimized for high efficiency with negligible power switching losses and low capacitance.
No automotive certifications or other approvals are applicable to this specific model.

Product Description

The Nexperia PMEG4005EH,115 is a highly efficient Schottky barrier diode designed for applications requiring fast switching and low forward voltage drop. This device is surface mounted in the compact SOD-123F package, making it suitable for space-constrained electronics assemblies.

Its maximum peak reverse voltage of 40 V and maximum continuous forward current of 500 mA ensure reliable operation in power sensitive circuits. The low forward voltage of 470 mV minimizes power dissipation, improving system efficiency.

The device features low peak reverse current leakage of 20 μA, helping reduce standby power consumption. Capable of withstanding peak non-repetitive forward surge current up to 10 A, it can handle transient current spikes safely.

With operating temperature limits from -65°C to 150°C, the diode suits diverse industrial, consumer, and telecommunications applications that operate under harsh environments including automotive electronics (non-certified for automotive standards).

Package dimensions of 2.7 mm length, 1.7 mm width, and 1.2 mm height support high-density circuit board layouts. Typical uses include rectification, free-wheeling, and protection in power management circuits, DC/DC converters, and switching power supplies.

This single Schottky diode is optimized for low forward voltage drop and high junction temperature. Its ultra-small, low-profile surface-mount package supports space-efficient designs. Low capacitance and negligible switching losses enhance high-frequency performance.

The device provides high surge current capability for robust transient handling. Operating temperature range of -65°C to 150°C supports a broad spectrum of industrial applications. Package size balances compactness with thermal performance in tight PCB layouts.

No external standards or approvals apply; recommended for general purpose Schottky applications. Explore more in the Nexperia Schottky Diodes & Rectifiers category at EnvMart for reliable semiconductor components.

Explore more products in our Schottky Diodes & Rectifiers category.
