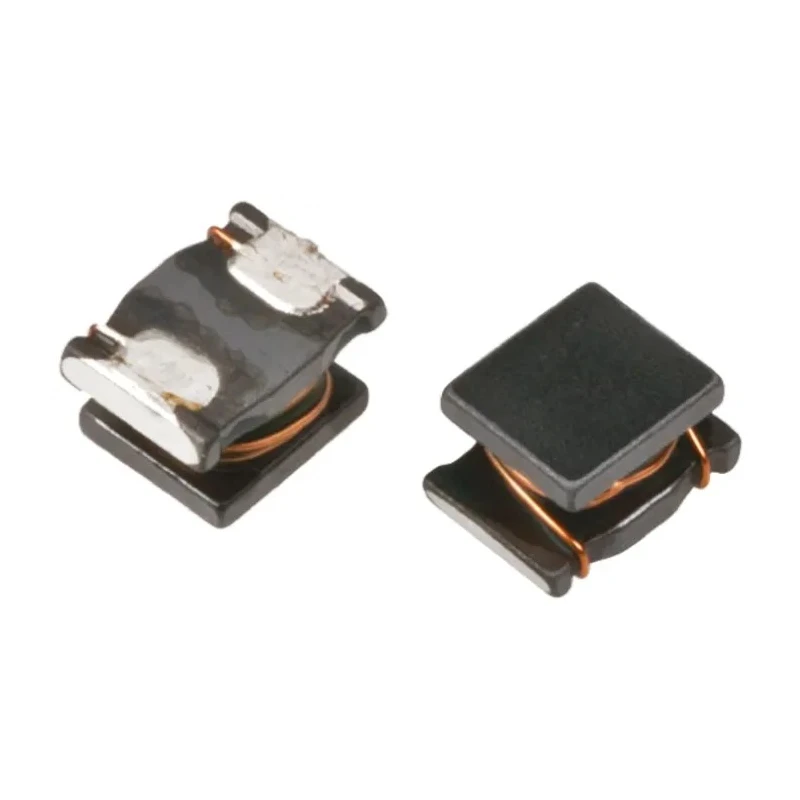

Murata 1812 Unshielded Wirewound Surface Mount Inductor with Ferrite Core 33μH ±10% 310mA Idc LQH43CN
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Murata |
| Height | 2.6mm |
| Length | 4.5mm |
| Model | LQH43CN |
| Depth | 3.2mm |
| Packaging | Embossed Tape |
| Series | LQH43CN |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite |
| Inductance | 33μH |
| Standards/Approvals | RoHS |
| Package/Case | 1812 |
| Maximum DC Current | 310mA |
| Pin Count | 2 |
| Maximum DC Resistance | 1Ω |
| Inductance Tolerance | ±10 % |
| Termination Style | Solder |
| Maximum Self Resonant Frequency | 12MHz |
| Inductor Construction | Wirewound |
Key Features
- Constructed with a wirewound ferrite core for durability and stability.

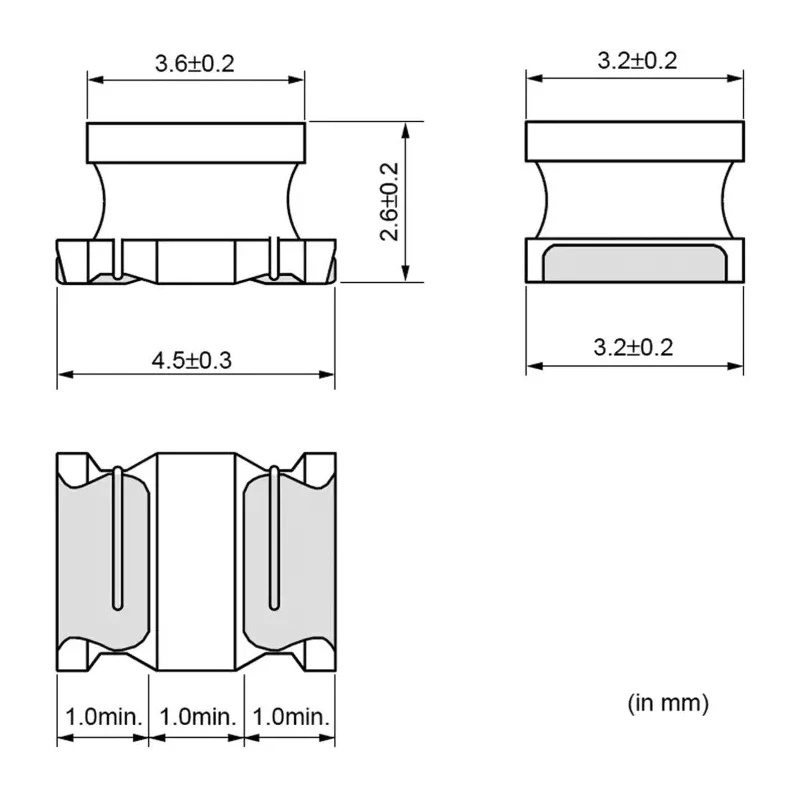

- Compact 1812 package size with length 4.5mm, height 2.6mm, and depth 3.2mm.
- Features a maximum DC resistance of 1Ω and maximum operating temperature of 85°C.
- Embossed tape packaging suitable for automated surface mount assembly.
- Compliance with RoHS standards ensuring environmentally safe manufacturing.
- Designed for filtration in switch mode power supplies and other electronic applications.
- Non-shielded design provides low voltage drop and high temperature stability.
- Ideal for industrial, commercial, and manufacturing use in electronic circuit design.
Product Description
Murata LQH43CN is an 1812 wirewound surface mount inductor featuring an unshielded ferrite core with a nominal inductance of 33μH and tolerance of ±10%. It supports a maximum DC current of 310mA and boasts low DC resistance of 1Ω, contributing to minimal voltage drop and stable operation under varying temperatures up to 85°C. The inductor comes in a compact 1812 package size with precise dimensions of 4.5mm length, 2.6mm height, and 3.2mm depth and is supplied in embossed tape for seamless integration into SMT manufacturing processes.
This high-quality component is RoHS compliant and designed primarily for filtration applications in switch mode power supplies. Its wirewound construction on a ferrite core ensures high temperature stability and reliable inductance characteristics, making it a suitable choice for industrial and commercial electronic circuits, water treatment systems, automotive electronics, and manufacturing automation.
Murata's LQH43CN series supports a maximum self-resonant frequency of 12MHz, enabling effective operation in high-frequency environments. The solder termination style ensures secure mounting on PCBs, providing durability and excellent electrical connection.
Wirewound ferrite core construction for robust performance. Compact 1812 case size suitable for dense PCB layouts. Embossed tape packaging ready for automated industrial assembly. Designed for filtration inductors in switch mode power supply circuits.
Low DC resistance to reduce power loss and heat generation. RoHS compliant ensuring adherence to environmental regulations. Supports long-term reliability across automotive and industrial applications. Operating temperature range from -40°C to 85°C for versatile use.
Choose Murata LQH43CN for reliable, efficient filtering and inductive functions in electronic manufacturing and engineering projects. Explore more electronic components and Surface Mount Inductors available on EnvMart for your industrial and laboratory needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductor has a nominal inductance of 33μH with a tolerance of ±10%.
This model supports a maximum DC current of 310mA.
The inductor has dimensions of 4.5mm in length, 2.6mm in height, and 3.2mm in depth.
It can operate at a maximum temperature of 85°C.
It features a wirewound ferrite core construction.
The inductor is supplied in embossed tape packaging suitable for automated surface mount assembly.
The LQH43CN supports a maximum self-resonant frequency of 12MHz.
It has a maximum DC resistance of 1Ω.
The operating temperature range is from -40°C to 85°C.
Yes, it complies with RoHS standards, ensuring environmentally safe manufacturing.
It is designed primarily for filtration in switch mode power supplies and other electronic applications.
This model features a solder termination style for secure mounting on PCBs.
