| Country of Origin | China |
|---|---|
| Brand | Nexperia |
| Height | 0.47mm |
| Length | 1.02mm |
| Model | PMEG4002EL,315 |
| Width | 0.62mm |
| Mount Type | Surface |
| Maximum Operating Temperature | 150°C |
| Package Type | SOD-882 |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 200mA |
| Peak Reverse Repetitive Voltage Vrrm | 40V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 10μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 3A |
| Maximum Forward Voltage Vf | 600mV |

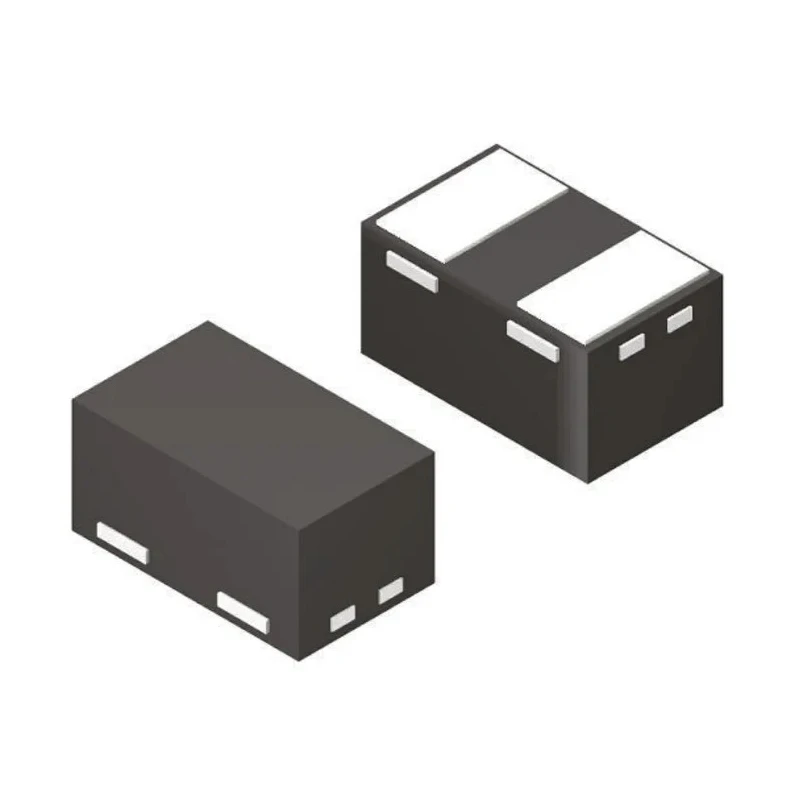

Nexperia PMEG4002EL,315 Schottky Diode 2-Pin SOD-882 is a high-efficiency surface mount diode tailored for electronics applications requiring a low forward voltage drop and high junction temperature tolerance.
It supports a maximum continuous forward current of 200mA and a peak reverse repetitive voltage of 40 volts, making it suitable for precise rectification and switching applications in semiconductors.

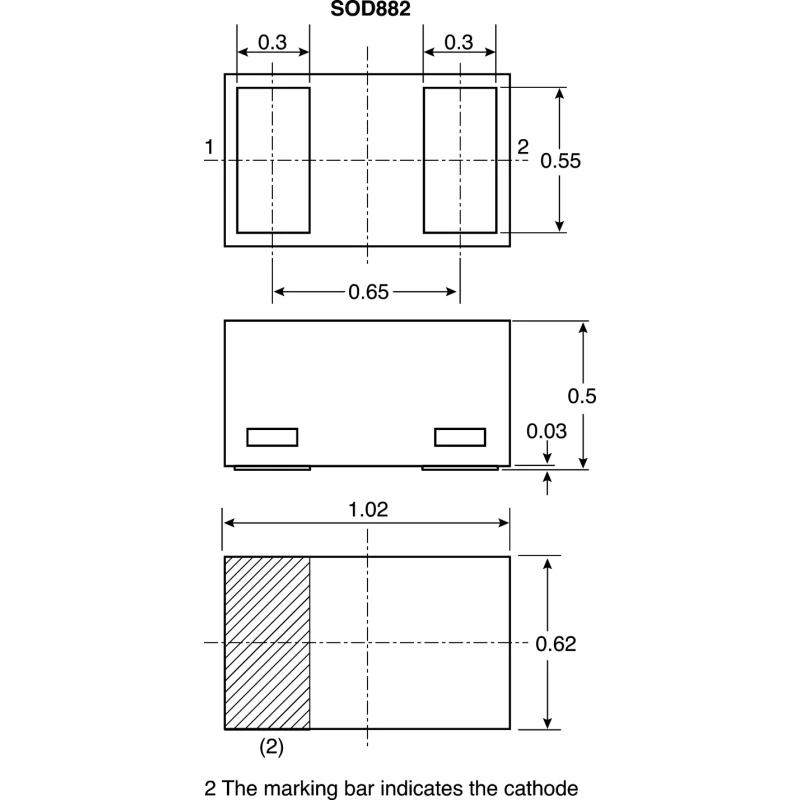

The device is packaged in a compact SOD-882 form factor measuring 1.02mm length, 0.62mm width, and 0.47mm height, suitable for space-saving PCB layouts.
This Schottky diode exhibits a maximum forward voltage of 600mV and handles peak non-repetitive forward surge currents up to 3A, ensuring robust performance under transient load conditions.
The operational temperature range from -65°C to 150°C enables reliable usage across industrial and commercial electronics environments. Maximum continuous forward current: 200mA. Peak reverse repetitive voltage: 40V. Package: SOD-882 2 pin surface mount.
Maximum forward voltage: 600mV. Peak surge current: 3A for transient loads. Operating temperature: -65°C to 150°C. Low junction capacitance and leakage current. Compact dimensions enable efficient PCB design. Manufactured in China.
This diode is ideal for use in power rectification, signal demodulation, and voltage clamping in industrial, laboratory, electronic manufacturing, and commercial equipment settings.
