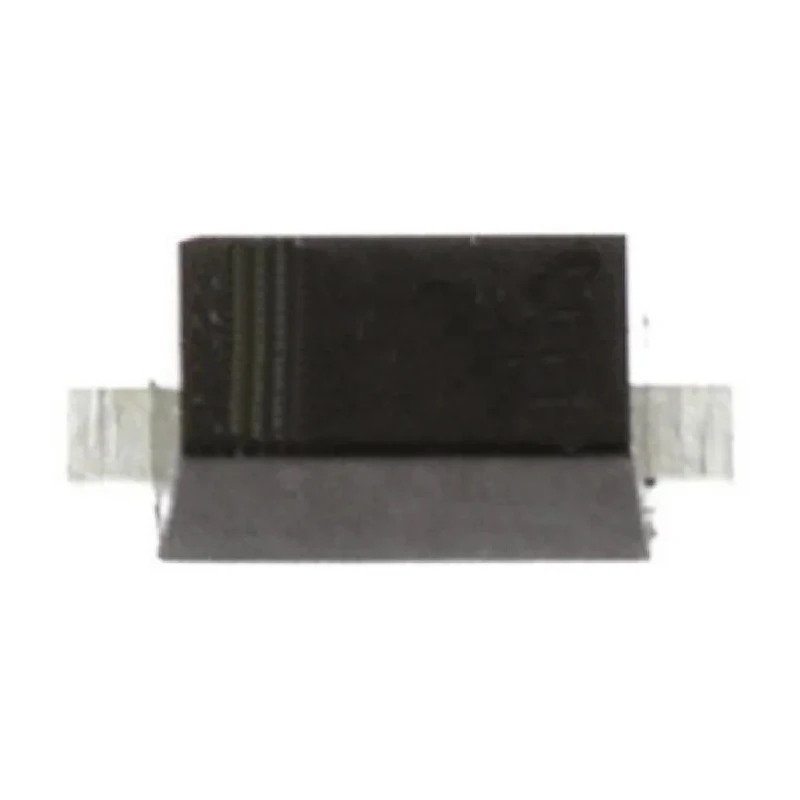

Nexperia 40 V 1 A Schottky Diode 2-Pin SOD-123F PMEG4010EH,115
Specifications
| Country of Origin | China |
|---|---|
| Brand | Nexperia |
| Height | 1.2mm |
| Length | 1.7mm |
| Model | PMEG4010EH,115 |
| Width | 2.7mm |
| Mount Type | Surface |
| Series | PMEG4010EH |
| Maximum Operating Temperature | 150°C |
| Package Type | SOD-123F |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 1A |
| Peak Reverse Repetitive Voltage Vrrm | 40V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 100μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 9A |
| Maximum Forward Voltage Vf | 540mV |
Key Features
- The diode features a maximum continuous forward current of 1 A for stable current handling.
- Peak reverse repetitive voltage capability is 40 V, suitable for low-voltage protection circuits.
- The Schottky barrier design ensures low forward voltage drop of 540 mV reducing power loss.
- Compact SOD-123F package with dimensions 1.7 mm length, 2.7 mm width, and 1.2 mm height.
- Operates within a temperature range from -65°C to 150°C for reliability in various environments.
- Peak non-repetitive forward surge current of 9 A supports transient current demands.
- Low peak reverse current of 100 μA minimizes leakage and power dissipation.
- Surface mount mount type enables automated assembly in high volume production.
Product Description
The Nexperia PMEG4010EH,115 is a high-efficiency Schottky diode designed for applications requiring fast switching and low forward voltage drop. Packaged in a compact 2-pin SOD-123F surface mount form, this diode offers a maximum continuous forward current rating of 1 A and a peak reverse repetitive voltage of 40 V, making it ideally suited for power rectification and low-voltage protection in electronic devices.
With a forward voltage of just 540 mV, this diode reduces power loss and enhances energy efficiency in circuits, especially in power supply and signal applications. Its diodes construction ensures low capacitance and negligible switching losses, supporting high-frequency operation and thermal performance.
The device supports operation from a minimum temperature of -65°C up to a maximum of 150°C, providing reliability under harsh thermal conditions. Additionally, it tolerates peak non-repetitive forward surge currents up to 9 A, allowing it to handle transient events safely.
Measuring 1.7 mm in length, 2.7 mm in width, and only 1.2 mm in height, the diode fits compact PCB layouts. Its low peak reverse current of 100 μA further minimizes leakage current and power dissipation during reverse voltage applications. The surface mount technology (SMT) package type facilitates automated placement in modern manufacturing lines.
It complies with RoHS environmental directives, ensuring safe use in eco-conscious applications. Maximum continuous forward current: 1 A. Peak reverse repetitive voltage: 40 V. Forward voltage drop: 540 mV. Peak non-repetitive forward surge current: 9 A.
Operating temperature range: -65°C to 150°C. SOD-123F package dimensions: 1.7 mm x 2.7 mm x 1.2 mm. Peak reverse current: 100 μA. Surface mount design enables efficient PCB assembly. Manufactured in China, new product condition.
Explore more products in our Schottky Diodes & Rectifiers category for your semiconductor requirements at EnvMart.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current for this model is 1 A.
This diode has a peak reverse repetitive voltage capability of 40 V.
The SOD-123F package measures 1.7 mm in length, 2.7 mm in width, and 1.2 mm in height.
The forward voltage drop for this Schottky diode is 540 mV.
It operates within a temperature range of -65°C to 150°C.
The peak non-repetitive forward surge current rating is 9 A.
The peak reverse current is 100 μA.
This model features a surface mount design, suitable for automated assembly.
This diode has a single diode configuration.
This diode is manufactured in China.
It is a Schottky rectifier type, designed for fast switching and low forward voltage drop.
This model is suitable for power rectification and low-voltage protection in electronic devices.
