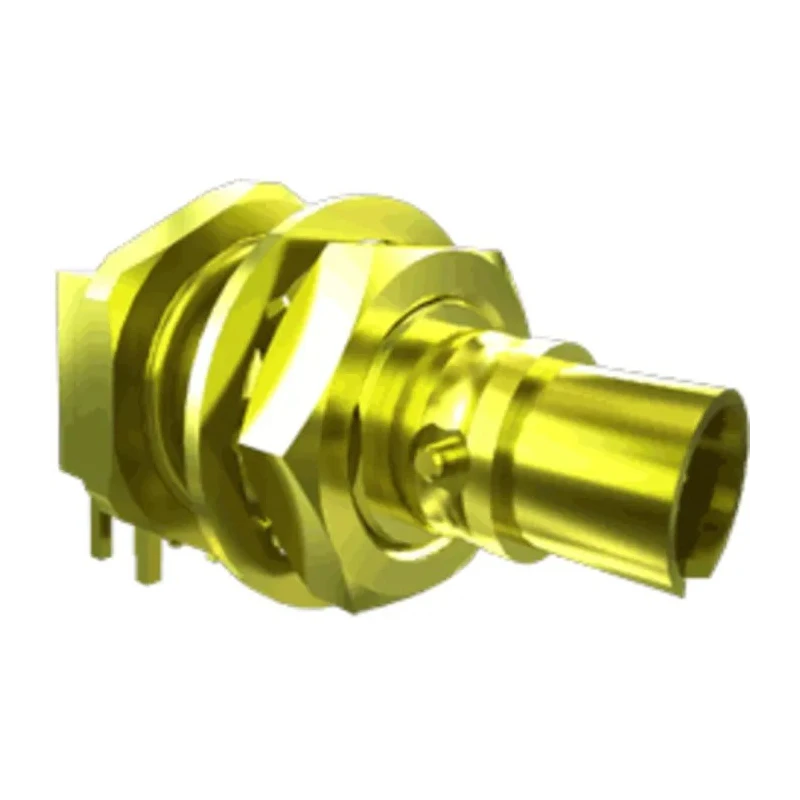

Samtec CJT TH Series Twin Axial Coaxial Connector PCB Male Right Angle Body Solder CJT-T-P-HH-RA-BH1

Samtec CJT-T-P-HH-RA-BH1 is a high-quality twin axial coaxial connector designed for PCB mounting applications. This male connector features a right angle body with solder termination, enabling efficient space usage on circuit boards. Its operating frequency covers up to 4 GHz, making it ideal for RF and high-frequency signal transmission in electronic devices.

The connector body is constructed from durable brass material providing excellent mechanical strength and effective electromagnetic shielding. The contact material consists of phosphor bronze plated with gold, ensuring reliable electrical contact and resistance against corrosion. The insulator is made from PTFE, offering outstanding insulation properties and thermal stability.

This RJ circular RF twinax jack supports standard size and includes a bulkhead mounting capability, ideal for robust assembly in industrial, telecommunication, and electronic manufacturing environments. The RoHS compliance confirms its adherence to environmental and safety regulations by restricting hazardous substances in its composition.

The connector operates reliably within a temperature range from -20°C to 105°C, suitable for varied environmental conditions including moderate industrial and commercial settings. Termination type by solder guarantees a secure and durable attachment to PCB pads, ensuring signal integrity and mechanical stability.

This product is part of the CJT TH series from Samtec, designed to meet the needs of high-performance coaxial applications typically found in RF communications, instrumentation, and networking equipment. The right angle body design assists designers in minimizing PCB footprint while maintaining robust signal pathways.

PCB mount twin axial Coaxial Connector with male gender. Constructed with brass shell and PTFE insulator for durability and electrical isolation. Gold-plated phosphor bronze contacts ensure conductivity and corrosion resistance.

Compatible with standard size PCB layouts and bulkhead mounting. RoHS compliant and environmentally safe. Supports operating frequencies up to 4 GHz and temperature range from -20°C to 105°C. Solder termination type for secure electrical connections.

Ideal for industrial, laboratory, telecommunication, and manufacturing use cases. Explore more connectors and electronics components in the Samtec range on EnvMart to support your project and production needs with reliable quality and technical specifications.
