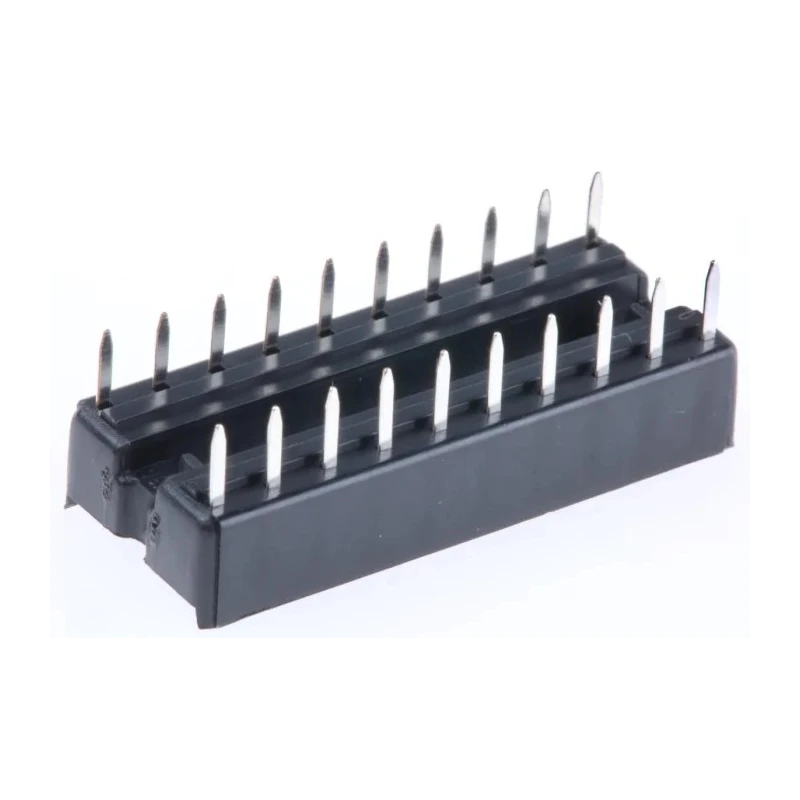

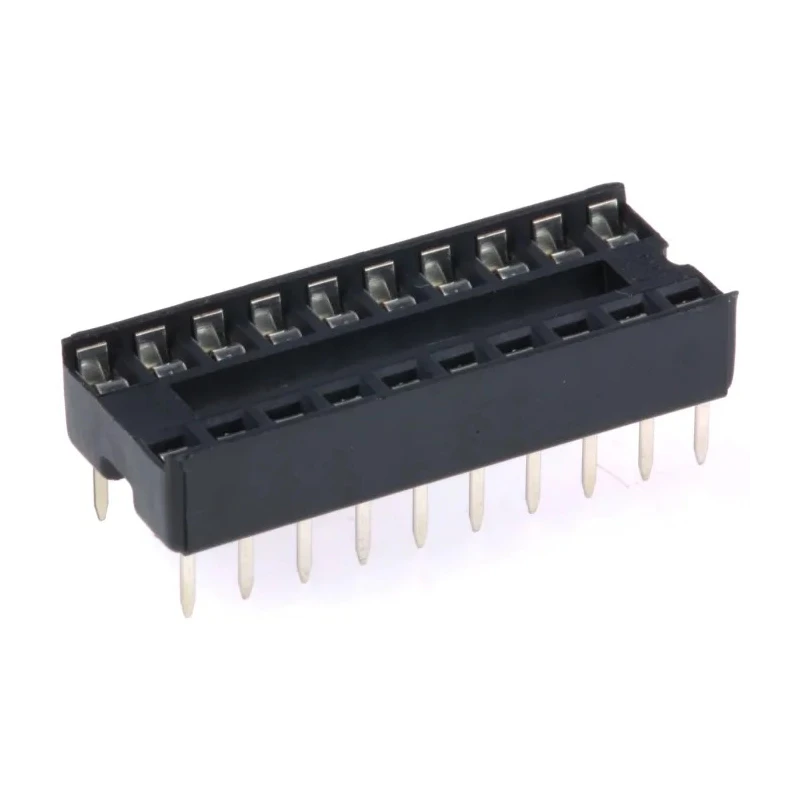

Winslow W3100 2.54 mm Pitch Vertical 20 Way Through Hole Stamped Pin Open Frame DIL Socket 10A W3120TRC

Winslow W3120TRC is a high-quality, vertical 20-way DIL socket designed for reliable electrical connections in electronic assemblies. Featuring stamped phosphor bronze pins with tin plating, this through-hole socket supports a current rating of 10A and maintains performance even in environments up to 150°C.

The open frame design allows efficient heat dissipation and easy installation in dense circuit layouts. With its 2.54 mm pitch and 7.62 mm row width, it is compatible with a wide range of integrated circuits and electronic components requiring precise socket connections.

Constructed using durable polybutylene terephthalate housing, the socket ensures mechanical stability and longevity. It incorporates a 35-degree angled contact to prevent IC leg misalignment during insertion, enhancing assembly reliability.

Typical applications include industrial electronics, laboratory instrumentation, telecommunication equipment, and manufacturing automation systems where dependable socket connections are required.

Designed for vertical mounting in electronic circuits. Open frame construction allows high-density layouts. Contacts are made of phosphor bronze for reliable conductivity. Contact surfaces are tin plated to enhance solderability and corrosion resistance.

Compatible with through-hole soldering techniques using solder termination. Maximum operating temperature of 150°C ensures durability under harsh conditions. Row width measures 7.62 mm, and pitch is standard 2.54 mm. Compact dimensions: length 25.27 mm, width 4.5 mm, depth 10.14 mm.

Housing constructed from polybutylene terephthalate for mechanical strength. Manufactured in Taiwan, Province Of China.

This 20-way DIL socket from Winslow belongs to the W3100 series, known for its low profile and side stackable design, making it suitable for high-density PCB layouts requiring easy IC insertion and extraction.
