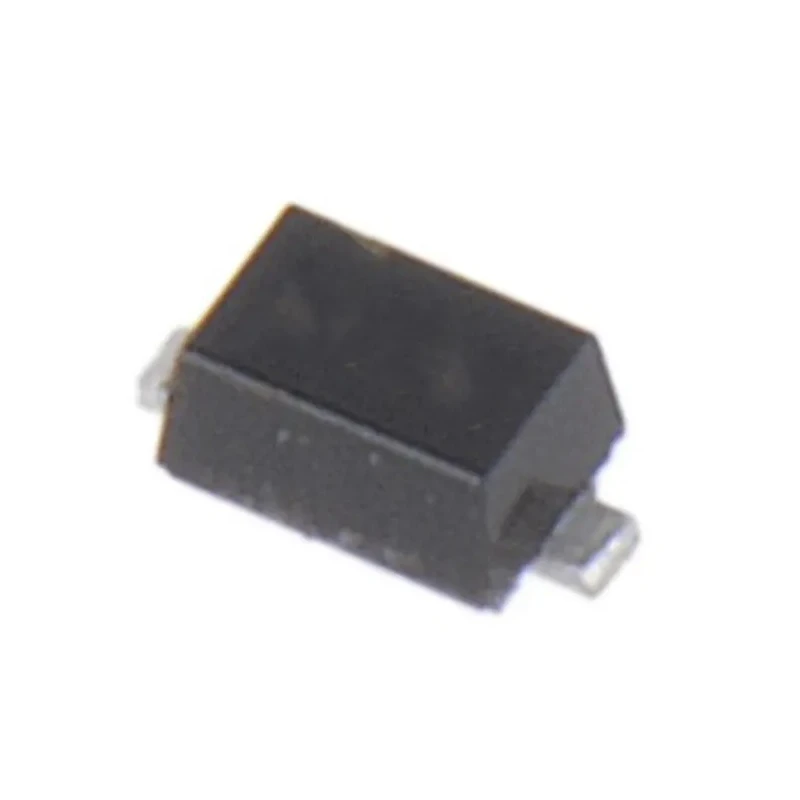

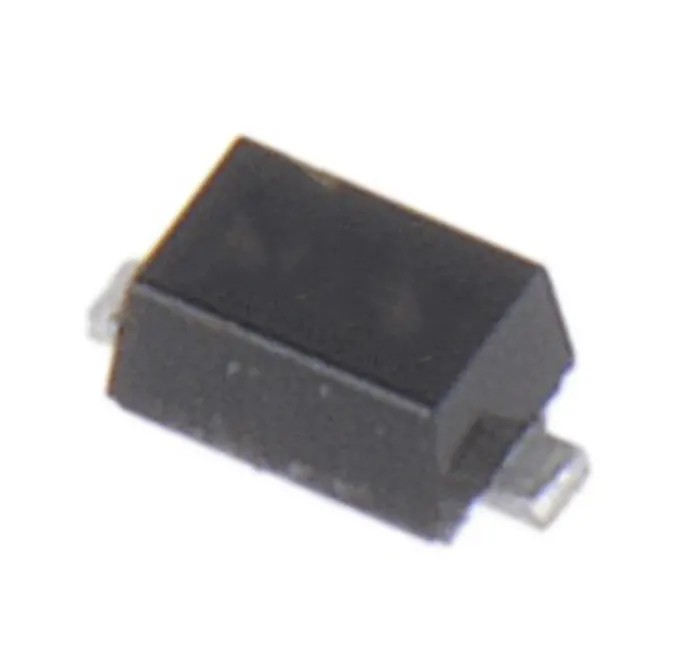

onsemi 1.5 V Zener Diode Single 500 mW Surface Mount 2-Pin SOD-523 MM5Z5V1T1G

Free Delivery in India | Lowest Global Shipping Charges

onsemi 1.5 V Zener Diode Single 500 mW Surface Mount 2-Pin SOD-523 MM5Z5V1T1G

Name: onsemi 1.5 V Zener Diode Single 500 mW Surface Mount 2-Pin SOD-523 MM5Z5V1T1G
Brand: onsemi
SKU: 156406
Price: 0.04 USD
Availability: InStock



Category Zener Diodes Brand onsemi Condition New

Specifications

Country of Origin	China
Brand	onsemi
Height	0.7mm
Length	1.7mm
Model	MM5Z5V1T1G
Mount Type	Surface
Series	MM5ZxxxT1G
Maximum Operating Temperature	150°C
Package Type	SOD-523
Minimum Operating Temperature	-65°C
Standards/Approvals	RoHS
Pin Count	2
Number of Elements per Chip	1
Automotive Standard	AEC-Q101
Maximum Power Dissipation Pd	500mW
Diode Configuration	Single
Test Current It	5mA
Maximum Reverse Leakage Current	2μA
Nominal Zener Voltage Vz	5.1V
Zener Type	Voltage Regulator
Maximum Zener Impedance	60Ω
Typical Voltage Temperature Coefficient	1.2mV/K
Lead Finish	100% Matte Sn (Tin)
Low Body Height	0.028in (0.7mm)
Small Body Outline Dimensions	0.047in x 0.032in (1.20mm x 0.80mm)
Standard Zener Breakdown Voltage Range	2.4V to 75V
Qualified Maximum Reflow Temperature	260C
Nexperia 1, 5.1 V Zener Diode, Single 300 mW 5 % Surface 2-Pin SOD-523Brand	Nexperia
onsemi 1, 5.1 V Zener Diode, Single 500 mW Surface 2-Pin SOD-523Brand	onsemi

Key Features

Nominal Zener voltage of 5.1 V ensures steady voltage regulation.
Maximum power dissipation rated at 500 mW for reliable operation.
Compact SOD-523 package with body dimensions 1.7 mm length and 0.7 mm height.
Surface mount design suitable for high-density printed circuit boards.
Low maximum reverse leakage current of 2 µA for efficient performance.
Maximum operating temperature rated up to 150 °C.
Automotive standard compliant (AEC-Q101) ensuring high reliability.
Lead finish with 100% matte tin ensures excellent solderability.

Product Description

onsemi MM5Z5V1T1G is a single-element Zener diode designed for voltage regulation with a nominal Zener voltage of 5.1 V and a maximum power dissipation of 500 mW. Packaged in the SOD-523 surface mount 2-pin package, this diode is optimized for compact electronic devices requiring reliable voltage protection.

The compact physical dimensions, 1.7 mm length and 0.7 mm height, make it suitable for dense printed circuit board layouts such as those found in cellular phones, handheld portables, and other miniaturized electronic systems.

This diode conforms to the RoHS standard and meets the automotive quality standard AEC-Q101, providing assurance of long-term reliability and performance in demanding environments. The device features a low maximum reverse leakage current of just 2 µA and a maximum Zener impedance of 60 Ω, enabling precise voltage regulation with minimal energy loss.

The lead finish is 100% matte tin which ensures superior solderability and assembly integrity. The diode’s qualified maximum reflow temperature is 260 °C allowing compatibility with high-temperature soldering processes during PCB assembly.

The MM5Z5V1T1G diode is well-suited for voltage regulation and protection applications in a wide range of industries including industrial electronics, automotive systems, telecommunications, and consumer electronics where compact size and performance reliability are critical.

Nominal Zener voltage of 5.1 V for stable regulation. Maximum power dissipation rated at 500 mW. Surface mount SOD-523 package dimensions: 1.7 mm length, 0.7 mm height. Compliance to automotive AEC-Q101 standard. Low leakage current and impedance for efficient operation.

High reflow temperature capability of 260 °C. Pb-free, RoHS-compliant construction. Explore more semiconductor and Zener diode solutions on EnvMart for your industrial and electronic component needs.

Explore more products in our Zener Diodes category.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The nominal Zener voltage of this diode is 5.1 V, which ensures stable voltage regulation.

The maximum power dissipation rated for this model is 500 mW, allowing for reliable operation in various applications.

The SOD-523 package has dimensions of 1.7 mm in length and 0.7 mm in height, making it suitable for compact electronic devices.

The maximum operating temperature is rated at 150 °C, allowing it to function in high-temperature environments.

The maximum reverse leakage current for this diode is 2 µA, contributing to its efficient performance.

Yes, this diode is compliant with the automotive standard AEC-Q101, ensuring high reliability in automotive applications.

The lead finish is 100% matte tin, which ensures excellent solderability and assembly integrity.

The typical voltage temperature coefficient for this Zener diode is 1.2 mV/K, indicating its performance stability over temperature variations.

The maximum Zener impedance is rated at 60 Ω, which helps in achieving precise voltage regulation.

The minimum operating temperature is -65 °C, allowing it to function effectively in low-temperature environments.

This Zener diode is suitable for voltage regulation and protection applications in industrial electronics, automotive systems, telecommunications, and consumer electronics.

The qualified maximum reflow temperature for this model is 260 °C, making it compatible with high-temperature soldering processes during PCB assembly.
