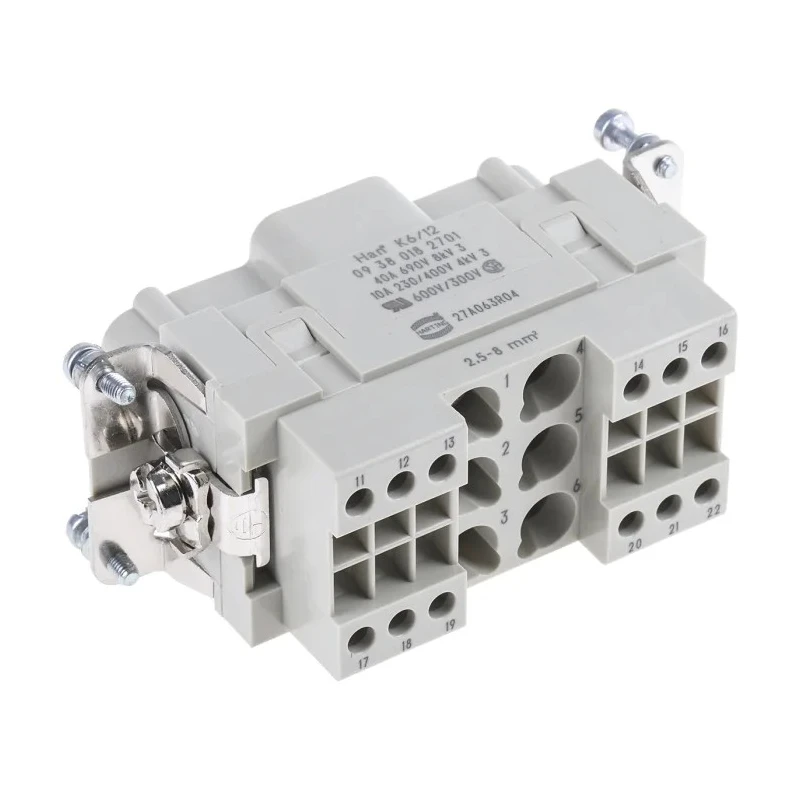

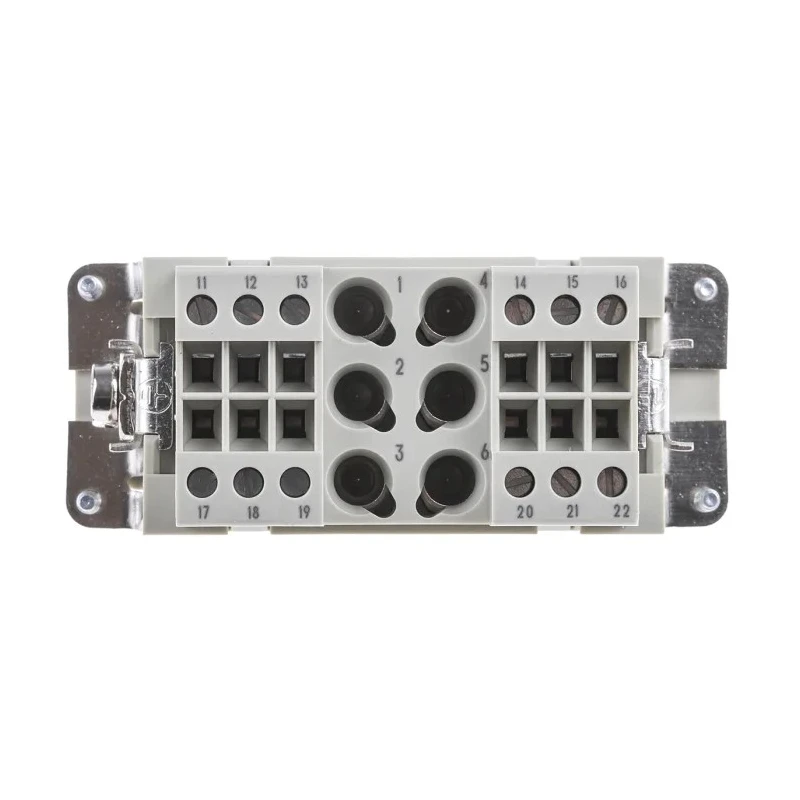

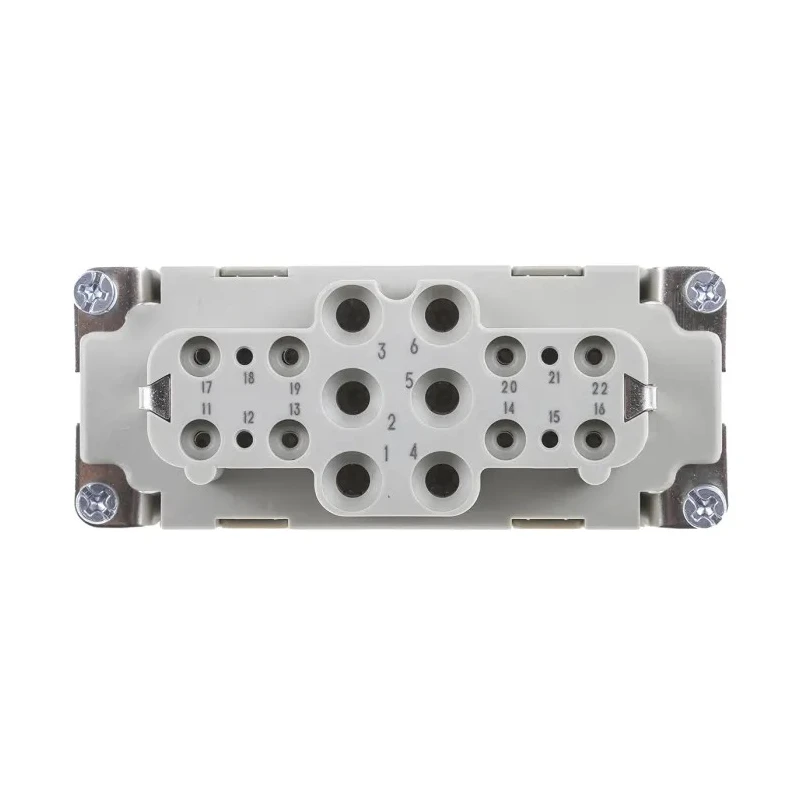

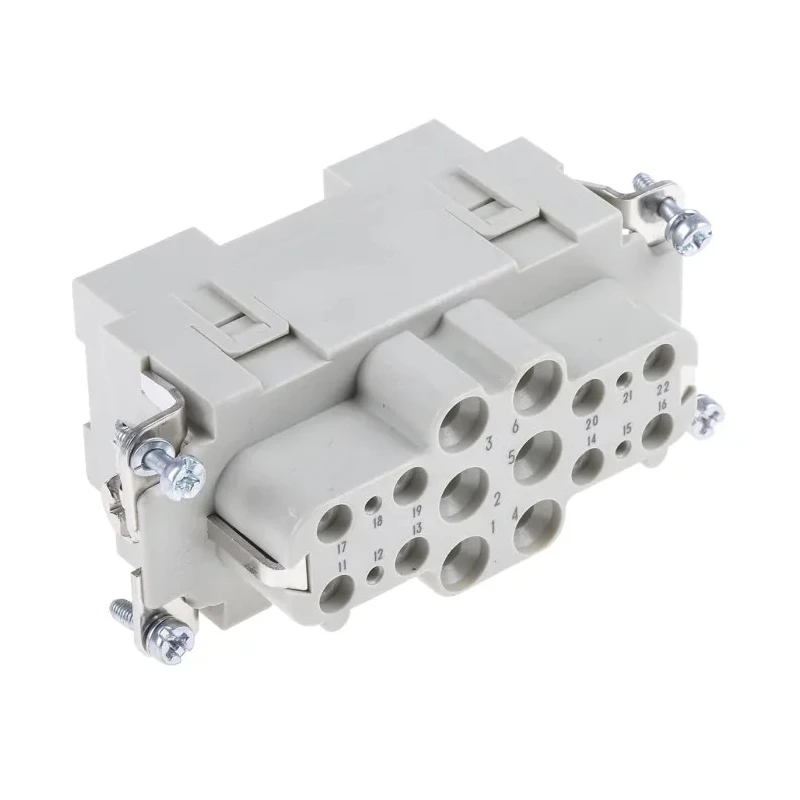

HARTING Heavy Duty Power Connector Insert 40A 690V Han-Com Series Female 18 Contacts 09380182701
Specifications
| Country of Origin | Romania |
|---|---|
| Voltage | 690V |
| Brand | HARTING |
| Orientation | Straight |
| IP Rating | IP65 |
| Mount Type | Cable |
| Contact Material | Copper Alloy |
| Current Rating | 40A |
| Series | Han-Com |
| Sub Type | Connector Insert |
| Number of Rows | 3 |
| For Use With | Heavy Duty Power Connector |
| Standards/Approvals | IEC 60664-1 |
| Pole Format | 18+E |
| Contact Plating | Silver |
| Number of Contacts | 18 |
| Connector Gender | Female |
| Minimum Wire Size mm² | 2.5mm² |
| Maximum Wire Size mm² | 8mm² |
Key Features
- Rated for continuous current capacity of 40A at 690V voltage.
- Features 18 contacts plus dedicated earth for multi-pole power distribution.
- Copper alloy contacts plated with silver ensure low resistance and superior conductivity.
- IP65 rated enclosure offers protection against dust ingress and water jets.
- Compatible with wire sizes from 2.5 mm² to 8 mm² for flexible cable installation.
- Designed for cable-mount with straight orientation for easy termination.
- Conforms to IEC 60664-1 insulation standards for industrial safety.
- Ideal for heavy machinery, automation cabinets, mobile equipment, and temporary electrical distribution.
Product Description
HARTING 09380182701 Heavy Duty Power Connector Insert is a high-performance industrial-grade connector insert designed for secure and reliable multi-pole power transmission in demanding environments. This cable-mounted female insert is part of the Han-Com Series and rated for 40A current and 690V voltage operations, ensuring suitability for heavy machinery and automation systems requiring robust electrical connections.
The insert features 18 contacts plus an earth contact arranged in three rows with a straight orientation to facilitate organized wiring and efficient power distribution. Contacts are manufactured from copper alloy and finished with silver plating to provide excellent conductivity and low electrical resistance.
Its IP65 rating guarantees protection against dust and water jets, making it suitable for harsh industrial conditions including manufacturing plants, mechanical system installations, and temporary on-site electrical setups. Suitable for conductors ranging from 2.5 mm² up to 8 mm², the design supports a variety of cable sizes ensuring versatility in installation.
This product complies with IEC 60664-1 standards, ensuring reliable insulation coordination and safe voltage withstand capability. The cable-mount design provides straightforward termination with appropriate crimp contacts and extraction tools for maintenance or replacement.
40A continuous current rating for reliable power supply. 690V voltage rating supports high-voltage industrial systems. 18 contacts plus earth for comprehensive multi-pole power distribution. Copper alloy contacts with silver plating enhance conductivity.
IP65 ingress protection resists dust and water jets. Compatible with 2.5 mm² to 8 mm² conductor sizes for installation flexibility. Straight orientation contact arrangement in three rows. Conforms to IEC 60664-1 for insulation and safety compliance.
Applications include powering automation control cabinets, manufacturing heavy machinery, mobile industrial equipment, temporary site electrical distribution, and panel-to-cable mechanical system connections. This insert must not be mated or unmated under load to prevent connector damage and ensure safety. For extraction and maintenance, compatible contact extraction tools are specified in supporting documentation.
HARTING products are recognized for quality and durability in industrial power connectors. Browse more Heavy Duty Power Connector Inserts and Modules on EnvMart for comprehensive industrial power connectivity solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This connector insert is rated for a continuous current capacity of 40A and a voltage of 690V, making it suitable for high-voltage industrial applications.
It features 18 contacts plus a dedicated earth contact, arranged in three rows for efficient power distribution.
The insert has an IP65 rating, which provides protection against dust ingress and water jets, suitable for harsh industrial environments.
The contacts are made from copper alloy and are plated with silver to ensure low resistance and superior conductivity.
It is compatible with wire sizes ranging from 2.5 mm² to 8 mm², allowing for flexible cable installation.
This model conforms to IEC 60664-1 insulation standards, ensuring reliable insulation coordination and safety.
The contacts are arranged in a straight orientation, which facilitates organized wiring and efficient termination.
It is designed for cable mounting, which allows for straightforward termination with appropriate crimp contacts.
It is ideal for applications involving heavy machinery, automation cabinets, mobile equipment, and temporary electrical distribution.
The contacts are arranged in three rows, optimizing the layout for multi-pole power distribution.
No, it must not be mated or unmated under load to prevent connector damage and ensure safety during operation.
The connector insert is manufactured in Romania, ensuring compliance with industrial standards.
