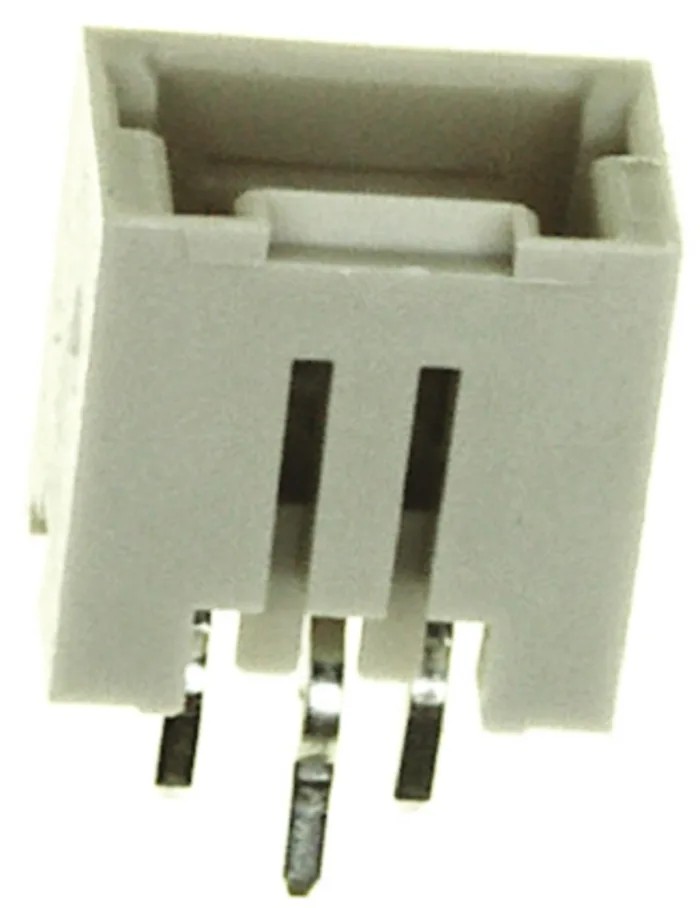

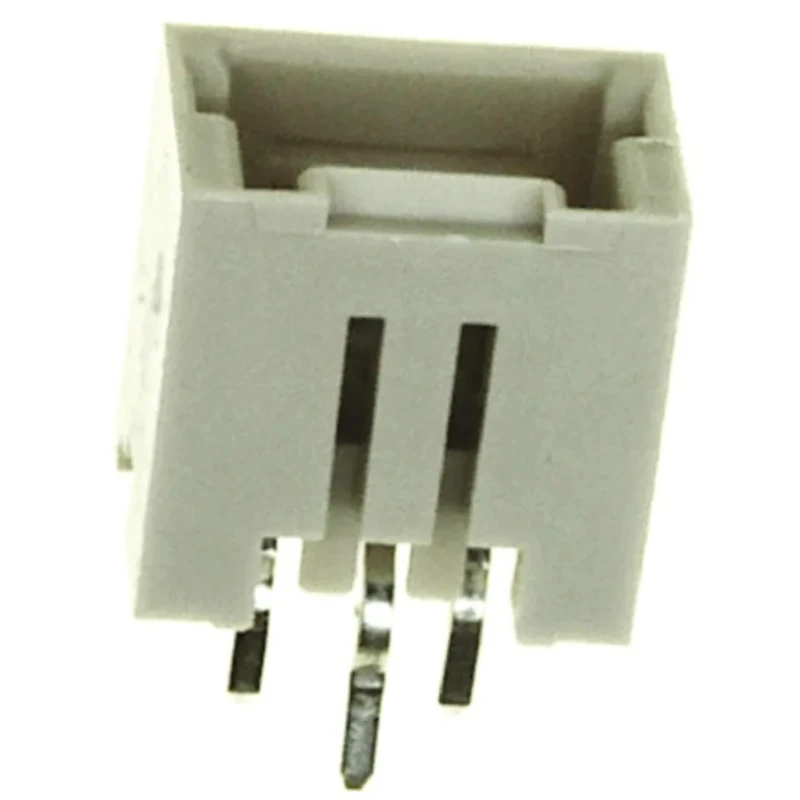

TE Connectivity AMP Mini CT Series Straight Through Hole Shrouded PCB Header 3 Contacts 1.5 mm Pitch 1 Row 292207-3
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 125V |
| Brand | TE Connectivity |
| Orientation | Straight |
| Model | 292207-3 |
| Mount Type | Through Hole |
| Housing Material | Nylon |
| Contact Material | Brass |
| Series | AMP Mini CT |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -30°C |
| Number of Rows | 1 |
| Pitch | 1.5mm |
| Contact Plating | Tin |
| Number of Contacts | 3 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
Key Features
- Compact PCB header designed for reliable wire-to-board connections.
- Features a 1.5 mm pitch and one row with three contacts.
- Shrouded housing made from durable nylon for secure mating.
- Brass contacts plated with tin ensure good conductivity and corrosion resistance.
- Kinked solder legs provide self-retention to the PCB for stability during assembly.
- Designed for through-hole mounting ensuring mechanical strength.
- Operating temperature range from -30°C to 105°C supports diverse environments.
- Rated for 125V voltage applications.
Product Description
TE Connectivity 292207-3 AMP Mini CT Series Straight Through Hole PCB Header offers a compact and precise interconnection solution with a 1.5 mm pitch and 3 contacts arranged in a single row. The shrouded housing made of robust nylon material provides polarization and mating retention features ensuring an accurate connection to cables and wire harnesses.
The male brass contacts with tin plating provide excellent electrical performance and resistance to corrosion. The solder legs feature a kinked design for secure self-retention on through-hole PCBs, enhancing assembly reliability. This header is suitable for a wide range of manufacturing and industrial applications including business equipment, industrial machinery, LED lighting systems, and consumer electronics.
Operating reliably within a temperature range from -30°C to 105°C and rated for 125V, this header supports varied environmental and electrical demands. Product variations include versions with PCB locating bosses to ensure precise alignment during assembly.
These AMP Mini CT PCB Headers are ideal for wire-to-board connection systems with proven wire harness capability. They comply with TE Connectivity quality standards and are manufactured in China. The robust design makes them suitable for use in demanding industrial, commercial, and HVAC applications.
Compact PCB header designed for reliable wire-to-board connections. 1.5 mm pitch with 3 contacts in a single row configuration. Shrouded nylon housing offering mating retention and polarization features. Brass male contacts plated with tin for long-term electrical reliability.
Kinked solder legs ensure secure self-retention on the PCB. Designed for through-hole mount for mechanical durability. Wide operating temperature range from -30°C to 105°C. Rated for 125V applications ensuring safety and performance.
Applications include industrial machinery, consumer electronics, LED lighting, and business equipment. Explore more high-quality connectors and components from TE Connectivity in the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pitch of this PCB header is 1.5 mm.
This model features 3 contacts arranged in a single row.
The maximum operating temperature is 105°C.
It is designed for through-hole mounting, ensuring mechanical strength.
The housing is made from nylon, and the contacts are brass plated with tin.
It is rated for 125V voltage applications.
This header is suitable for applications in industrial machinery, consumer electronics, LED lighting, and business equipment.
Yes, it features a shrouded housing that provides polarization and mating retention for secure connections.
The contacts in this connector have a straight orientation.
It uses solder termination for connecting to PCBs.
It is manufactured in China.
The contacts in this model are male.
