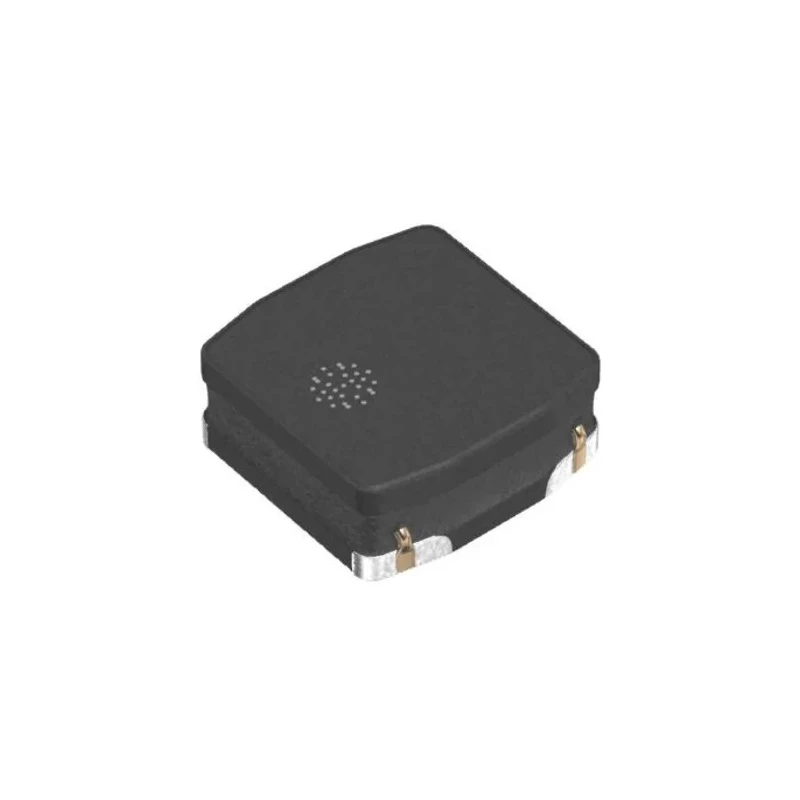

TDK Shielded Wirewound Surface Mount Inductor with Ferrite Core 22 μH ±20% 780 mA Idc VLS3012CX-220M-1
Specifications
| Country of Origin | China |
|---|---|
| Brand | TDK |
| Height | 1.2mm |
| Operating Temperature Range | - 40 to +105°C (including self-temperature rise) |
| Length | 3mm |
| Model | VLS3012CX-220M-1 |
| Depth | 3mm |
| Series | VLS-CX-1 |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite |
| Inductance | 22μH |
| Standards/Approvals | Halogen Free, Lead Free, REACH SVHC-Free, RoHS |
| Package/Case | 3012 |
| Maximum DC Current | 780mA |
| Maximum DC Resistance | 668mΩ |
| Inductance Tolerance | ±20 % |
| Termination Style | Surface Mount |
| Inductor Construction | Wirewound |
| Application guides | Smart phones/tablets |
Key Features
- Magnetic shield type wirewound inductor suitable for power circuits.
- Constructed with ferrite magnetic material for high magnetic shield performance.
- Compatible with high-density mounting on PCBs.
- Features a maximum DC resistance of 668 mΩ to reduce power loss.
- Wide operating temperature range from -40 to +105°C accommodating self-temperature rise.
- Package dimensions are 3 mm length, 3 mm depth, and 1.2 mm height.
- Inductance tolerance of ±20% ensures reliable circuit behavior.
- Designed for surface mount termination style for easy PCB integration.
Product Description
TDK VLS3012CX-220M-1 shielded wirewound surface mount inductor utilizes a ferrite core and offers an inductance of 22 μH with ±20% tolerance and a maximum DC current rating of 780 mA. This inductor is designed for power circuits and boasts a high magnetic shield construction compatible with high-density PCB mounting.
The device achieves larger current handling and lower DC resistance (668 mΩ) through optimization of the ferrite core design. It operates reliably across a temperature range of -40 to +105°C, including self-temperature rise effects.
Dimensions of the 3012 package measure 3 mm in length, 3 mm in depth, and 1.2 mm in height, suitable for compact surface mount applications with the surface mount termination style.
Compliant with international environmental standards including halogen free, lead free, REACH SVHC-Free, and RoHS, this inductor is a robust choice for modern electronics.
Common industrial and consumer applications encompass smartphones, tablet terminals, hard disk drives (HDDs), solid-state drives (SSDs), digital video cameras (DVCs), digital still cameras (DSCs), mobile display panels, portable gaming devices, and compact power supply modules.
Magnetic shield type wirewound inductor for power circuits using ferrite magnetic material. High magnetic shield construction compatible with high-density mounting. Optimized ferrite core allowing larger current and lower DC resistance.
Operating temperature range from -40 to +105°C including self-temperature rise. Dimensions: 3 mm length × 3 mm depth × 1.2 mm height. Inductance tolerance of ±20% ensures consistent circuit performance. Complies with halogen free, lead free, REACH SVHC-Free, and RoHS standards.
Surface mount termination style facilitates compact PCB assembly. Ideal for electronic devices such as smartphones, tablets, HDDs, SSDs, cameras, displays, and gaming devices. Explore more Surface Mount Inductors and similar products at EnvMart.
