| Country of Origin | China |
|---|---|
| Brand | Vishay |
| Height | 1.15mm |
| Length | 3.1mm |
| Model | BAS70-06-E3-08 |
| Width | 1.43mm |
| Mount Type | Surface |
| Series | BAS70 |
| Maximum Operating Temperature | 125°C |
| Package Type | SOT-23 |
| Minimum Operating Temperature | -55°C |
| Pin Count | 3 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 200mA |
| Peak Reverse Repetitive Voltage Vrrm | 70V |
| Diode Configuration | Common Anode |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 100nA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 600mA |
| Maximum Forward Voltage Vf | 1V |
| Peak Reverse Recovery Time trr | 5ns |

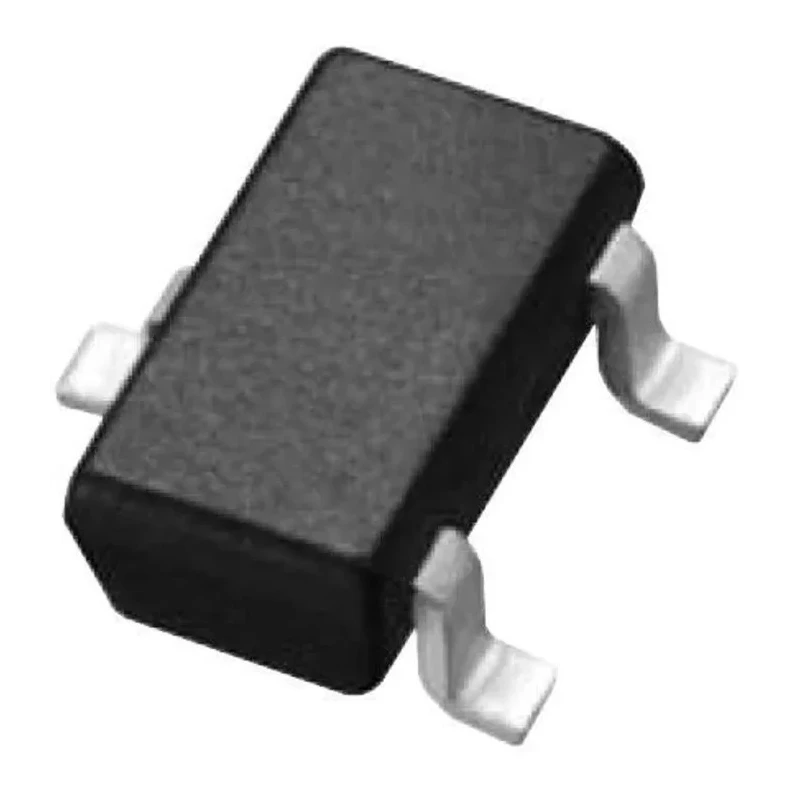

Vishay BAS70-06-E3-08 is a 3-pin Schottky rectifier diode designed for surface mount technology in a compact SOT-23 package. It features a maximum continuous forward current rating of 200 mA and a peak reverse repetitive voltage of 70 V. This diode delivers extremely low forward voltage drop and fast recovery time of 5 ns, making it ideal for high-efficiency power conversion and switching applications.
Its operating junction temperature ranges from -55°C to 125°C, ensuring dependable performance under demanding industrial and automotive conditions. The diode's common anode configuration and low leakage current of 100 nA make it suitable for use in DC/DC converters, polarity protection circuits, and switching power supplies.
The SOT-23 package measures 3.1 mm length, 1.43 mm width, and 1.15 mm height, facilitating compact PCB designs. Its peak non-repetitive forward surge current is 600 mA, providing robustness against transient events. Vishay's AEC-Q101 automotive qualification further guarantees high reliability in automotive electronics.
This diode is free from lead (Pb-free) and protected by a PN junction guarding against excessive voltage, including electrostatic discharges. Applications include industrial electronics, automotive systems, and power supply modules requiring efficient rectification and fast switching capabilities.
Provides extremely low turn-on voltage ensuring efficient power conversion. Fast switching characteristics reduce energy losses in high-frequency circuits. Operates reliably from -55°C to 125°C junction temperature. Common anode configuration suitable for various DC/DC converter applications.
Compact SOT-23 package with dimensions 3.1 mm length, 1.43 mm width, and 1.15 mm height. Peak reverse repetitive voltage of 70 V and peak forward surge current up to 600 mA. Low peak reverse current of 100 nA ensures minimal leakage losses.
AEC-Q101 automotive qualified for enhanced reliability in automotive electronics. Ideal for polarity protection, power supplies, and switching power supplies. Explore Vishay semiconductor diodes for efficient, reliable electronic component solutions on EnvMart.
