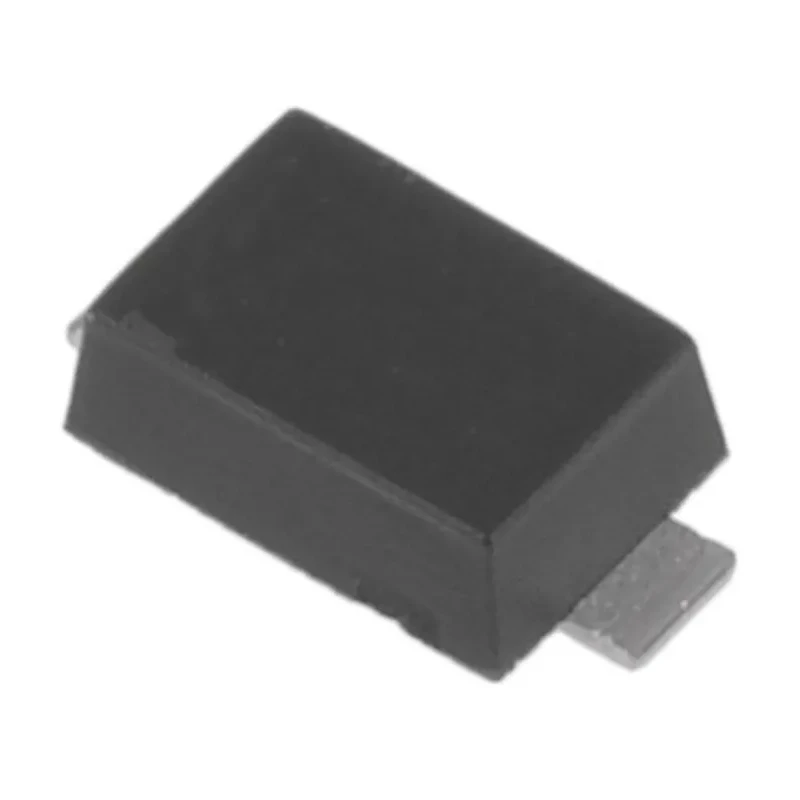

Vishay 1.12 V Zener Diode Single 500 mW 5% Surface Mount 2-Pin SOD-123 MMSZ5242B-E3-08

Free Delivery in India | Lowest Global Shipping Charges

Vishay 1.12 V Zener Diode Single 500 mW 5% Surface Mount 2-Pin SOD-123 MMSZ5242B-E3-08

Name: Vishay 1.12 V Zener Diode Single 500 mW 5% Surface Mount 2-Pin SOD-123 MMSZ5242B-E3-08
Brand: Vishay
SKU: 154936
Price: 0.05 USD
Availability: InStock



Category Zener Diodes Brand Vishay Condition New

Specifications

Country of Origin	India
Brand	Vishay
Height	1.35mm
Length	2.85mm
Model	MMSZ5242B-E3-08
Mount Type	Surface
Series	MMSZ5242
Maximum Operating Temperature	150°C
Package Type	SOD-123
Minimum Operating Temperature	-55°C
Pin Count	2
Number of Elements per Chip	1
Automotive Standard	AEC-Q101
Maximum Power Dissipation Pd	500mW
Diode Configuration	Single
Test Current It	20mA
Maximum Reverse Leakage Current	1μA
Nominal Zener Voltage Vz	12V
Zener Type	Small Signal
Maximum Zener Impedance	30Ω

Key Features

The diode features a nominal Zener voltage of 12 V with ±5% tolerance.
Maximum power dissipation rating is 500 mW ensuring reliable performance.
Package type is SOD-123 suitable for surface mount technology.
It has a maximum reverse leakage current of 1 µA and maximum Zener impedance of 30 Ω.
Operating temperature range spans -55°C to 150°C for diverse environmental conditions.
Automotive standard AEC-Q101 certified ensuring high-quality and reliability.
Pin count is 2 enabling simple circuit integration.
Typical test current for the diode is 20 mA.

Product Description

Vishay MMSZ5242B-E3-08 is a high-quality Zener diode designed for precise voltage regulation in electronic circuits, featuring a nominal Zener voltage of 12 V and maximum power dissipation of 500 mW. Packaged in a compact SOD-123 2-pin surface mount form factor, it offers excellent performance and reliability across a wide temperature range from -55°C to 150°C.

This silicon planar diode type is suitable for a wide array of applications including industrial electronics, automotive systems, and telecommunications. It complies with the automotive AEC-Q101 standard, ensuring it meets stringent quality and reliability requirements.

Key electrical characteristics include a maximum reverse leakage current of 1 µA, a maximum Zener impedance of 30 Ω, and a test current of 20 mA. Its small-signal Zener type configuration ensures low noise and stable voltage regulation across varying conditions.

The diode’s surface mount package (SOD-123) is optimized for automated assembly and compact PCB layouts, making it ideal for modern electronic manufacturing requirements. Its robust operating temperature limits make it suitable for demanding industrial and automotive environments.

This product is beneficial for design engineers seeking robust voltage regulation components compliant with automotive standards. It fits well in applications involving protection circuits, voltage clamps, and reference voltage sources.

The diode features a nominal Zener voltage of 12 V with ±5% tolerance. Maximum power dissipation rating is 500 mW ensuring reliable performance. Package type is SOD-123 suitable for surface mount technology. It has a maximum reverse leakage current of 1 µA and maximum Zener impedance of 30 Ω.

Operating temperature range spans -55°C to 150°C for diverse environmental conditions. Automotive standard AEC-Q101 certified ensuring high-quality and reliability. Pin count is 2 enabling simple circuit integration. Typical test current for the diode is 20 mA.

The diode is designed as a small signal Zener type for precise voltage regulation. Explore similar Vishay Zener Diodes and other semiconductor components in the Electronics & Electricals category at EnvMart for comprehensive selection and technical support.
