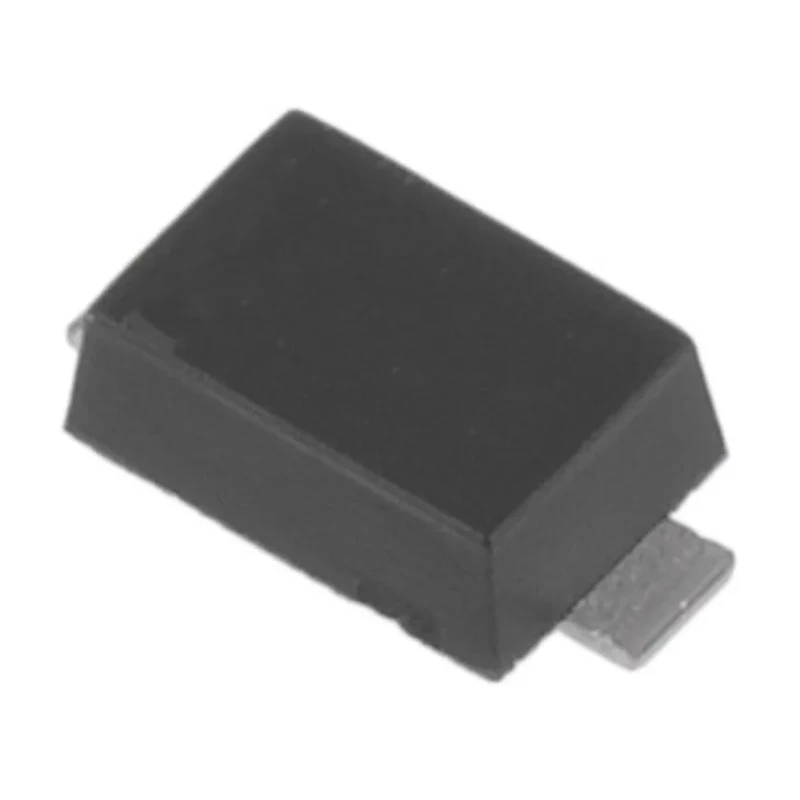

Vishay 1, 10 V Zener Diode, Single 500 mW 5 % Surface Mount 2-Pin SOD-123 MMSZ5240B-E3-08

Vishay MMSZ5240B-E3-08 is a single element, small signal Zener diode designed for surface mount applications in a compact 2-pin SOD-123 package. It offers a nominal Zener voltage of 10 volts and a maximum power dissipation of 500 milliwatts, making it suitable for precise voltage regulation and protection in electronic circuits.

The diode features a maximum reverse leakage current of 3 microamperes and maximum Zener impedance of 17 ohms at its test current of 20 mA, ensuring stable operation under varying electrical conditions. Its operating temperature range extends from -55°C up to 150°C, meeting requirements for harsh industrial and automotive environments.

Compliance with the automotive standard AEC-Q101 guarantees high reliability and robustness, making this diode a preferred choice for automotive electronics and industrial equipment.

This device is typically used in power supplies, voltage reference circuits, and general purpose electronic applications where stable voltage clamping is critical. The silicon planar technology enhances performance consistency and longevity.

Compact and robust surface mount 2-pin SOD-123 package. Nominal 10 V Zener voltage with ±5% tolerance. High reliability conforming to AEC-Q101 automotive standard. Wide operating temperature from -55 to 150°C. Low leakage current for energy-efficient circuits.

500 mW power dissipation suitable for moderate power electronic designs. Single element diode for precise, small signal applications.
