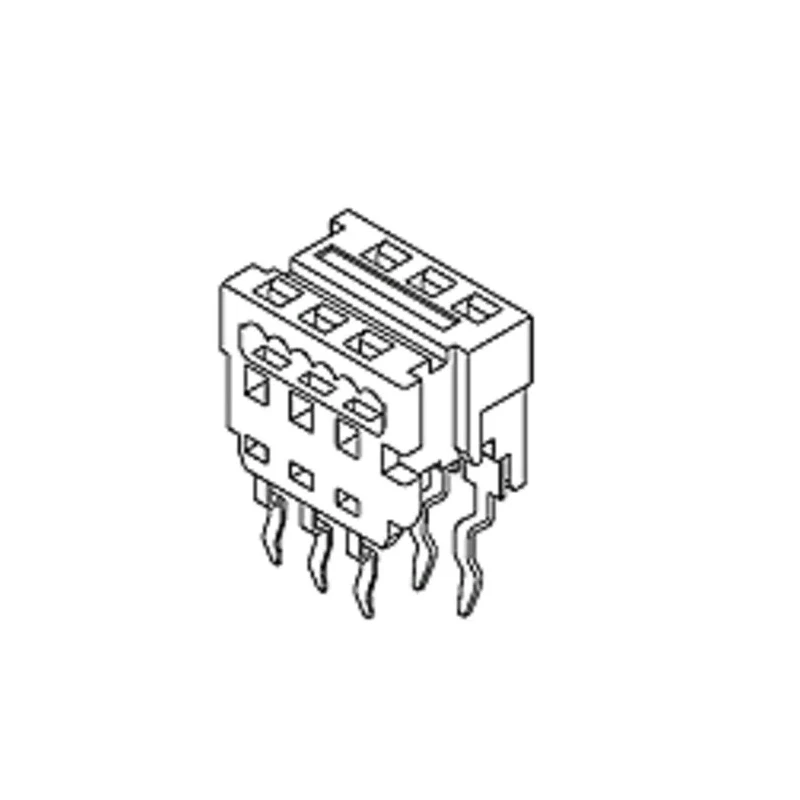

Molex 6-Way IDC Connector Female for Through Hole, 2 Row, 1.27mm Pitch, 1.2A, 250V AC, Polyester Housing 90584-1306
Specifications
| Country of Origin | Ireland |
|---|---|
| Voltage | 250V ac |
| Brand | Molex |
| Orientation | Straight |
| Current | 1.2A |
| Mount Type | Through Hole |
| Housing Material | Polyester |
| Contact Material | Phosphor Bronze |
| Series | Picoflex |
| Termination Type | Kinked Pin |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 2 |
| Pitch | 1.27mm |
| Contact Plating | Tin |
| Number of Contacts | 6 |
| ANSI/ESD S20.20 | 2014 |
| BS EN 61340-5-1 | 2007 |
| Contact Gender | Female |
| Connector Gender | Female |
| Shrouded/Unshrouded | Unshrouded |
Key Features
- The connector features female contacts with kinked pins for secure mounting.
- It supports a current rating of 1.2 amps and voltage rating of 250V AC.
- Constructed with a polyester housing and phosphor bronze contacts plated with tin for durability.
- Operating temperature ranges from -40°C to 105°C, suitable for various environments.
- The connector is unshrouded with a straight orientation for easy assembly.
- Ideal for PCB connections in electronic assemblies, facilitating ribbon cable interfacing.
- Manufactured in Ireland, ensuring stringent quality control.
Product Description
Molex 90584-1306 IDC Connector Female for Through Hole, 2 Row, with a 1.27mm pitch, rated for 1.2A current and 250V AC voltage, is engineered for secure and efficient PCB connections.
This connector is designed with female phosphor bronze contacts plated with tin, housed in durable polyester material. The kinked pin termination ensures a reliable through-hole mounting on printed circuit boards.
Its operating temperature range from -40°C to 105°C makes it suitable for industrial, electronic assembly, and manufacturing environments requiring stable electrical connections.
This 6-way, 2-row connector features an unshrouded, straight orientation design facilitating ribbon cable interfacing. The Picoflex series ensures compatibility and performance for various electronic interconnections.
Compliant with ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007, it meets electrostatic discharge protection standards, vital for sensitive electronic components. The connector features female contacts with kinked pins for secure mounting.
Supports a current rating of 1.2 amps and voltage rating of 250V AC. Constructed with polyester housing and tin-plated phosphor bronze contacts for durability. Operating temperature ranges from -40°C to 105°C. Unshrouded design with straight orientation.
Complies with electrostatic discharge protection standards. Manufactured in Ireland with precise quality control. Ideal for electronic, industrial, and manufacturing PCB applications.
This Molex IDC Connector is an ideal choice for electrical engineers and manufacturers looking for reliable and quality PCB connectors to optimize assembly lines and ensure durable wire housing solutions.
Browse other electronic connectors and PCB components at EnvMart for comprehensive industrial and laboratory needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This connector supports a current rating of 1.2 amps and a voltage rating of 250V AC.
The operating temperature range for this model is from -40°C to 105°C, making it suitable for various environments.
It features a through-hole mounting type, designed for secure installation on printed circuit boards.
The housing is made from polyester, and the contacts are phosphor bronze plated with tin for durability.
This connector has a total of 6 contacts arranged in 2 rows.
The pitch of this IDC connector is 1.27mm.
Yes, it complies with ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 for electrostatic discharge protection.
The connector has a straight orientation, which facilitates easy assembly.
This connector is manufactured in Ireland, ensuring stringent quality control.
It uses a kinked pin termination type for secure mounting.
The connector features female contacts, designed for interfacing with compatible male connectors.
This model belongs to the Picoflex series, which is known for its compatibility in various electronic interconnections.
