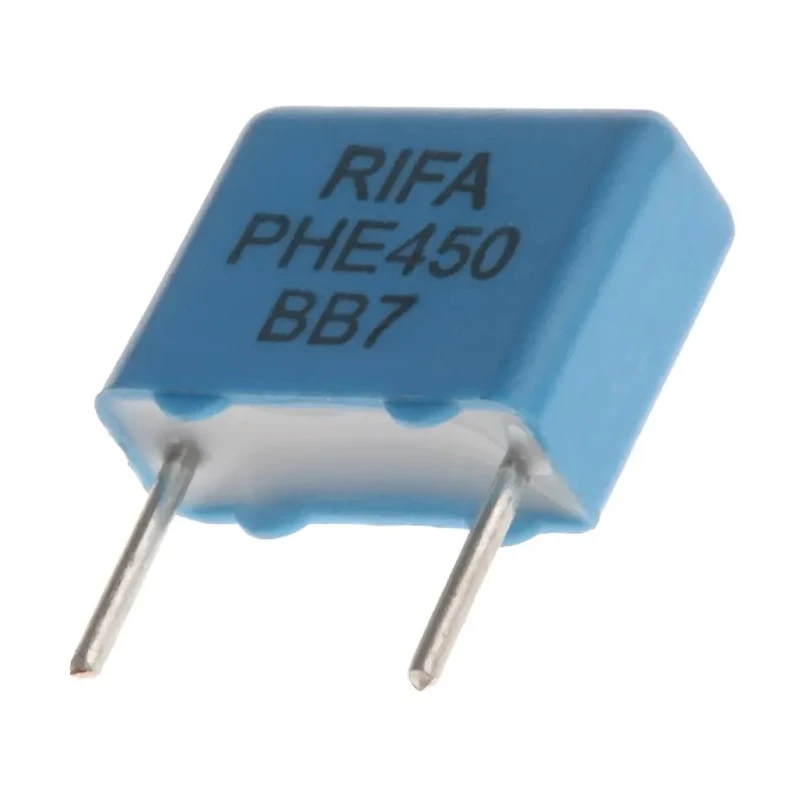

KEMET Film Capacitor ±5% Tolerance 10 nF 400 V DC 180 V AC Radial Through Hole PHE450

KEMET PHE450 Film Capacitor is a high-quality, double metallised polypropylene capacitor featuring a capacitance value of 10 nF with ±5% tolerance. Rated at 400 V DC and 180 V AC voltage, it is designed for radial through hole mounting, ideal for industrial and electronic applications requiring pulse and snubber circuits.

The capacitor is encapsulated in a self-extinguishing resin case meeting UL 94 V-0 requirements, ensuring enhanced safety in electronic assemblies. With a temperature operating range from -55°C to 105°C, it offers robust performance in demanding environments such as industrial electronics, consumer electronics, and power supplies.

The PHE450 series features a lead pitch of 7.5 mm and lead length of 5 mm, facilitating easy installation on printed circuit boards. The 0.6 mm lead diameter and radial terminal type ensure secure and reliable connections.

Compact dimensions of 10 mm length, 8 mm height, and 4 mm width allow integration into space-constrained designs. The capacitor’s dissipation factor of 0.0003% indicates low energy loss, improving efficiency in circuits.

This capacitor is widely used in protective circuits for switch mode power supplies and television deflection circuits, suitable for applications demanding high current stress resistance.

Additionally, the product complies with RoHS environmental standards, ensuring it meets current regulatory requirements for restricted hazardous substances.

Overall, the KEMET PHE450 Film Capacitor provides reliable, efficient performance for electronic component manufacturers, industrial machinery, and consumer electronics sectors seeking durable and high precision capacitors.

Constructed with double metallised polypropylene film for high reliability. Encapsulated in self-extinguishing resin material compliant with UL 94 V-0. Rated operating temperature range from -55° to 105°C for durable performance.

Lead pitch of 7.5 mm and lead length of 5 mm for standard through hole mounting. Designed to withstand high current stress in pulse and snubber circuits. Radial lead termination with 0.6 mm lead diameter improves connectivity.

Compliant with RoHS standards ensuring environmental safety. Compact physical dimensions: 10 mm length, 8 mm height, 4 mm width. Applicable for protection circuits in switch mode power supplies and deflection circuits in televisions.
