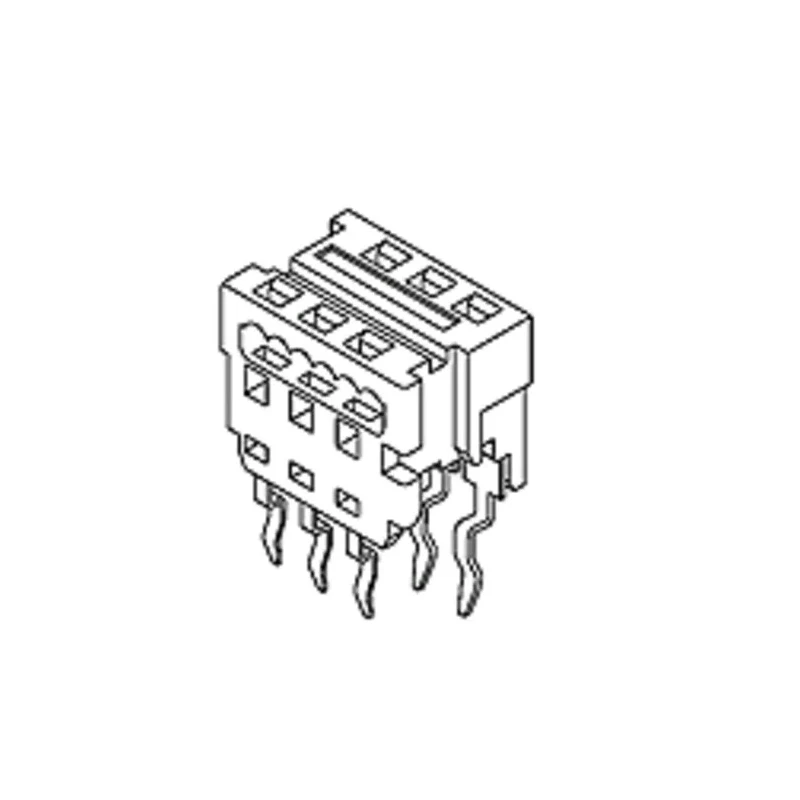

Molex IDC Connector Female Through Hole 18 Contacts 2 Rows 1.27mm Pitch 1.2A 250V AC Polyester Housing Tin Plated 90584-1318
Specifications
| Country of Origin | Ireland |
|---|---|
| Voltage | 250V ac |
| Brand | Molex |
| Orientation | Straight |
| Current | 1.2A |
| Mount Type | Through Hole |
| Housing Material | Polyester |
| Contact Material | Phosphor Bronze |
| Series | Picoflex |
| Termination Type | Kinked Pin |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 2 |
| Pitch | 1.27mm |
| Contact Plating | Tin |
| Number of Contacts | 18 |
| ANSI/ESD S20.20 | 2014 |
| BS EN 61340-5-1 | 2007 |
| Contact Gender | Female |
| Connector Gender | Female |
| Shrouded/Unshrouded | Unshrouded |
Key Features
- The connector supports a current rating of 1.2A and voltage rating of 250V AC.
- It features an unshrouded design with a straight orientation for through-hole mounting.
- Contacts are made of phosphor bronze with tin plating for reliable conductivity.
- The housing is constructed from durable white polyester for insulation and mechanical strength.
- Operating temperature range spans from -40°C to 105°C, accommodating various environments.
- This Picoflex series connector uses kinked pins for termination, enhancing secure connections.
- Designed for precise alignment, the 1.27mm pitch helps ensure reliable signal transmission.
- The connector is ideal for industrial electronics, communications, and PCB assemblies requiring compact, high-reliability connections.
Product Description
Molex 90584-1318 is an 18-way IDC female connector designed for through-hole mounting with two rows and a 1.27mm pitch, part of the Picoflex series. The connector supports a current of 1.2A and a voltage of 250V AC, suitable for compact ribbon cable interconnections in various electronic assemblies.
The contacts are phosphor bronze material coated with tin plating to provide excellent conductivity and corrosion resistance. The housing is made from robust white polyester, offering a sturdy insulation structure capable of withstanding high mechanical stresses.
Its kinked pin termination design ensures reliable soldering performance during PCB assembly. Operating temperature ranges from -40°C to 105°C make it adaptable for industrial environments. The connector's unshrouded, straight orientation and through-hole mounting type allow ease of integration and durability.
The 90584-1318 connector is tested to meet ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 electrostatic discharge standards, providing circuit protection and compliance in sensitive electronic applications.
This product is widely used in industrial equipment, communication devices, and other PCB-based systems needing compact, reliable ribbon cable connections with precise contact spacing.
The connector supports 1.2A current and 250V AC voltage ratings. It features 18 female contacts arranged in 2 rows at 1.27mm pitch. Phosphor bronze contacts are tin-plated to ensure quality electrical performance. Housing material is durable white polyester providing insulation and mechanical support.
Designed for through-hole mounting with kinked pin termination. Operating temperature range from -40°C to 105°C suits varied industrial environments. Unshrouded straight orientation enables easy mounting and connectivity.
Compliant with ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 standards for static protection. Explore more in the Electronics & Electricals category for connectors and other PCB components at EnvMart.
Explore more products in our IDC Connector category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It supports a current rating of 1.2A and a voltage rating of 250V AC.
This model features a pitch of 1.27mm and has 18 contacts arranged in 2 rows.
The contacts are made of phosphor bronze with tin plating, while the housing is constructed from durable white polyester.
The operating temperature range spans from -40°C to 105°C, making it suitable for various environments.
It is designed for through-hole mounting with kinked pin termination for secure connections.
Yes, it is tested to meet ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 standards for static protection.
This connector features a straight orientation and is unshrouded, facilitating easy integration.
It is part of the Picoflex series of connectors.
The connector is manufactured in Ireland.
It is ideal for industrial electronics, communications, and PCB assemblies requiring compact, high-reliability connections.
This model is a female connector, designed for female contacts.
The kinked pin termination design ensures reliable soldering performance during PCB assembly, enhancing secure connections.
