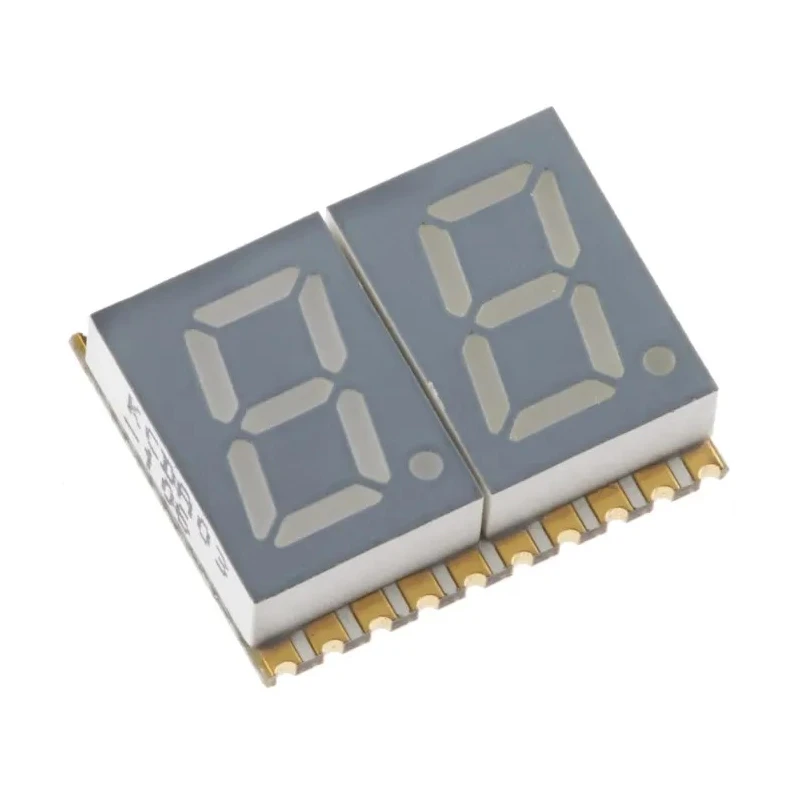

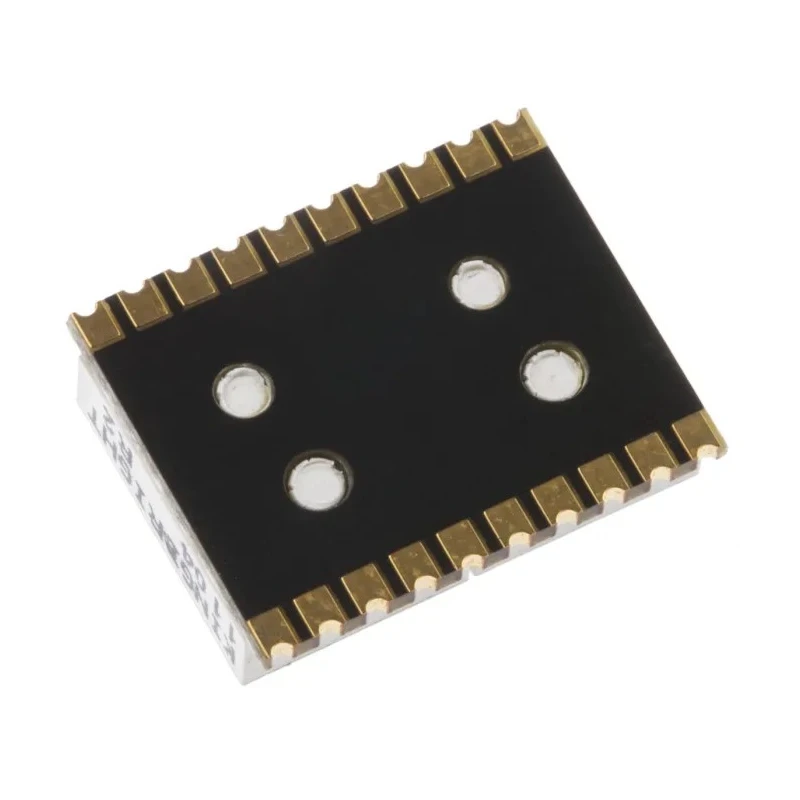

Kingbright 2-Digit 7 Segment LED Display Anode Orange 46mcd Right Side 7.6 mm KCDA03-106

Kingbright KCDA03-106 2-Digit 7 Segment LED Display is a high quality electronic component designed for clear numeric displays in a variety of industrial and commercial applications. This surface mount LED display module incorporates two 7-segment digits with an orange anode LED color, delivering a luminous intensity of 46mcd for excellent visibility under diverse lighting conditions.

The characters each measure 4.2mm in width and 7.6mm in height, with the overall module dimensions being 14.8mm in width, 12mm in height, and 3.8mm in depth, making it compact for integration on printed circuit boards. Its grey face with white segments enhances contrast and improves character recognition.

The display operates efficiently at a forward voltage of 2.1V and draws a forward current of 30mA, with power dissipation rated at 75mW, making it suitable for low-power electronics. It features right side decimal orientation, providing ease of reading decimal points in numeric displays.

Durability is ensured by a wide operating temperature range from -40°C to 85°C, suitable for use in harsh environments such as industrial control panels, instrumentation, and measurement devices. The product is RoHS compliant, confirming adherence to environmental and safety regulations.

This LED display module supports various applications including industrial automation, laboratory equipment displays, HVAC control panels, and manufacturing instrumentation where clear numeric output is critical. The robust design and easy surface mount installation also facilitate integration in electronic assembly lines.

The display features 2 characters with 7 segments each for clear digit representation. It has a character width of 4.2mm and height of 7.6mm allowing easy readability. Operates at a forward voltage of 2.1V and forward current of 30mA for efficient power use.

Surface mount type with a grey face and white segments designed for PCB integration. Designed for durable use with operating temperatures ranging from -40°C to 85°C. Right side decimal orientation facilitates intuitive numeric displays.

RoHS compliant and manufactured to high standards for industrial applications. Explore more electronic components and LED Displays at EnvMart to support your product designs and manufacturing needs.
