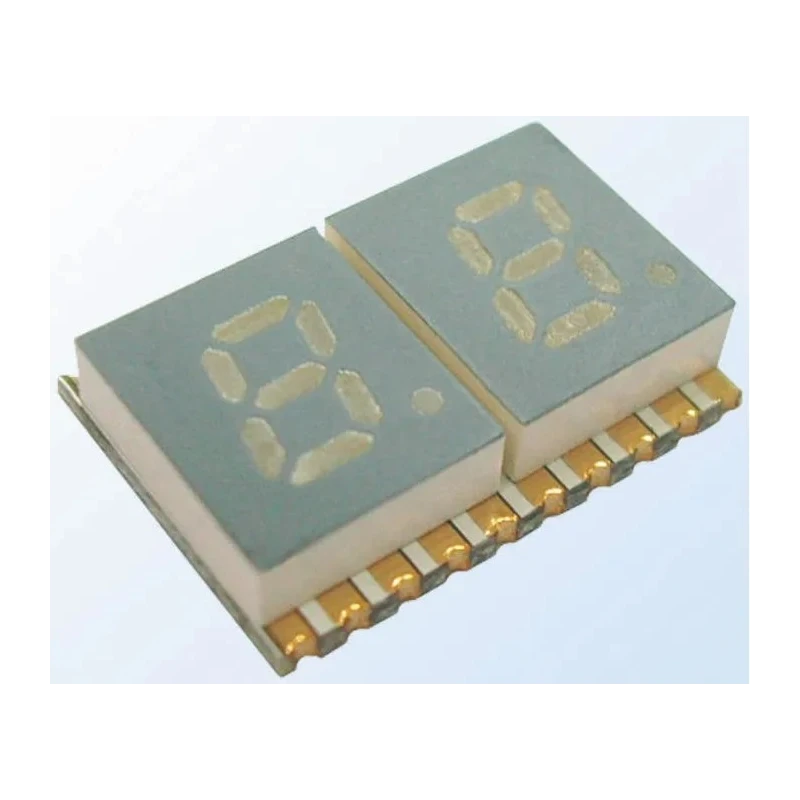

Kingbright 2 Digit 7 Segment LED Display Red 44mcd Right Side Decimal Orientation 14.2mm Character Height KCDC56-105

Kingbright KCDC56-105 is a dual-digit 7 segment LED display designed for electronic components applications requiring clear numeric visualization. This red LED display is surface mountable with cathode common connection type, optimized for easy installation onto PCBs.

The display features excellent visibility with a luminous intensity of 44mcd and a dominant wavelength of 635nm, producing bright red numerals suitable for digital readouts in industrial, laboratory, and commercial electronics.

Character dimensions include a height of 14.2mm and width of 8mm, ensuring clear legibility. The decimal point orientation is positioned on the right side, enabling precise numeric displays involving fractional values.

Operating temperature range from -40°C to 85°C allows usage in challenging environmental conditions. Electrical characteristics include a forward voltage of 2V, power dissipation of 75mW, and forward current of 30mA, supporting low power consumption and efficient operation.

The unit measures 25.1mm in width, 19mm in height, and 3.8mm in depth, with a grey face and white segment color providing high contrast and durability. This display module is RoHS compliant, reflecting adherence to environmental and safety standards.

Ideal applications encompass electronic instrumentation, digital meters, counters, industrial devices, and other equipments requiring reliable numeric display components. Its surface mounting design ensures compatibility with automated assembly processes and modern PCB layouts.

The display features 2 characters and 7 segments suitable for numeric presentation. Red LEDs emit a dominant wavelength of 635nm with a luminous intensity of 44mcd. Character height is 14.2mm with decimal orientation on the right side for precise display.

Operating temperature ranges from -40°C to 85°C, suitable for varied environments. Forward voltage is 2V, with a power dissipation of 75mW and forward current of 30mA. Display dimensions are 25.1mm width, 19mm height, and 3.8mm depth.

Grey face with white segments promotes excellent character appearance and visibility. Surface mount type design allows easy integration onto printed circuit boards. The product complies with RoHS standards for environmental safety.
