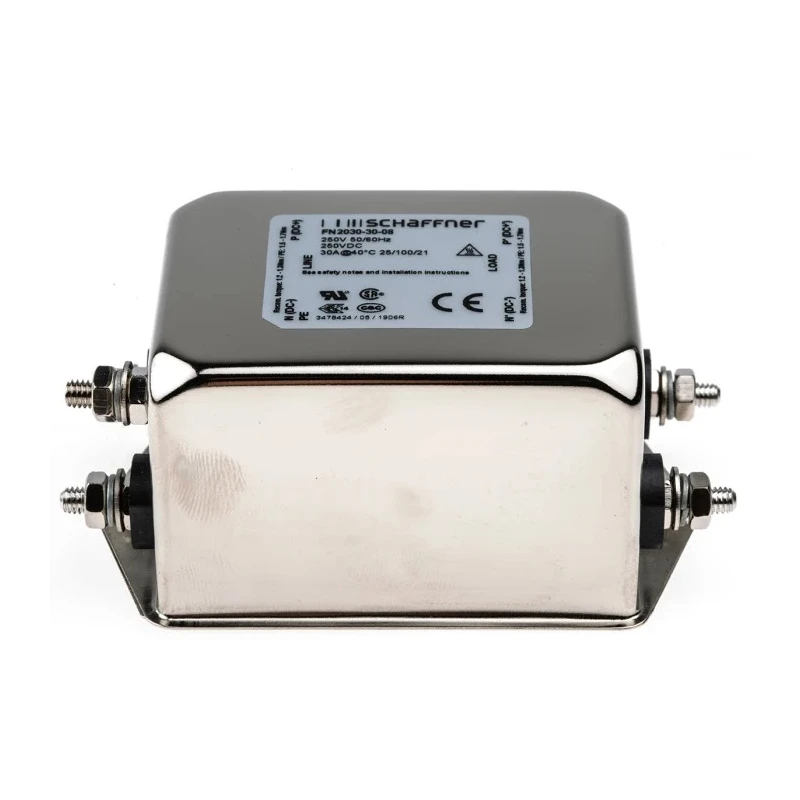

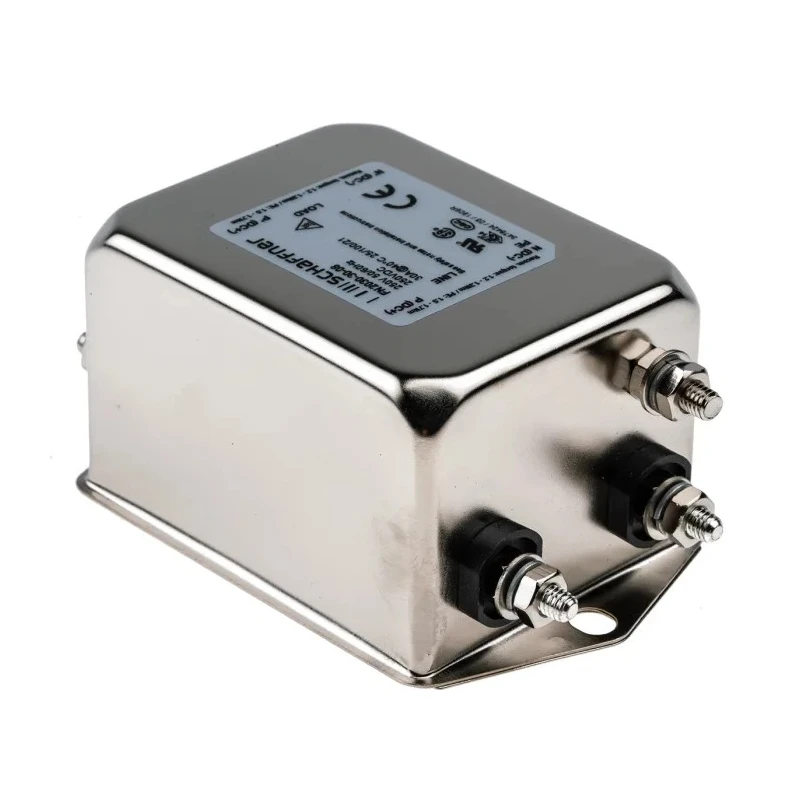

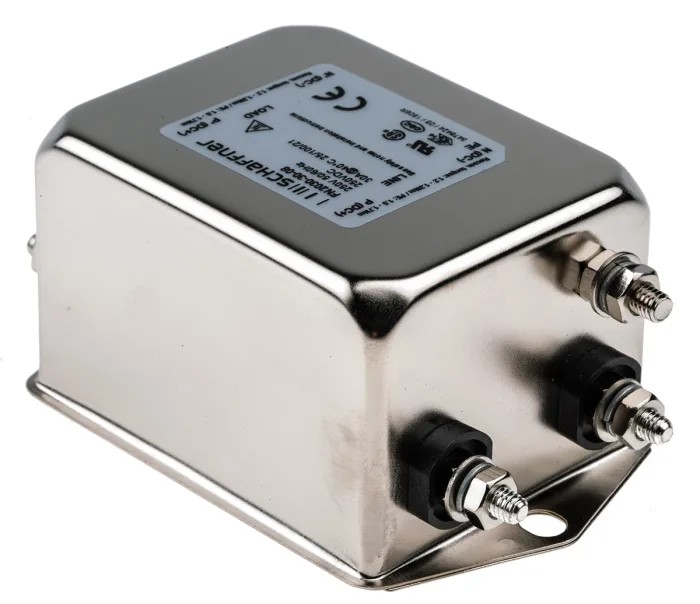

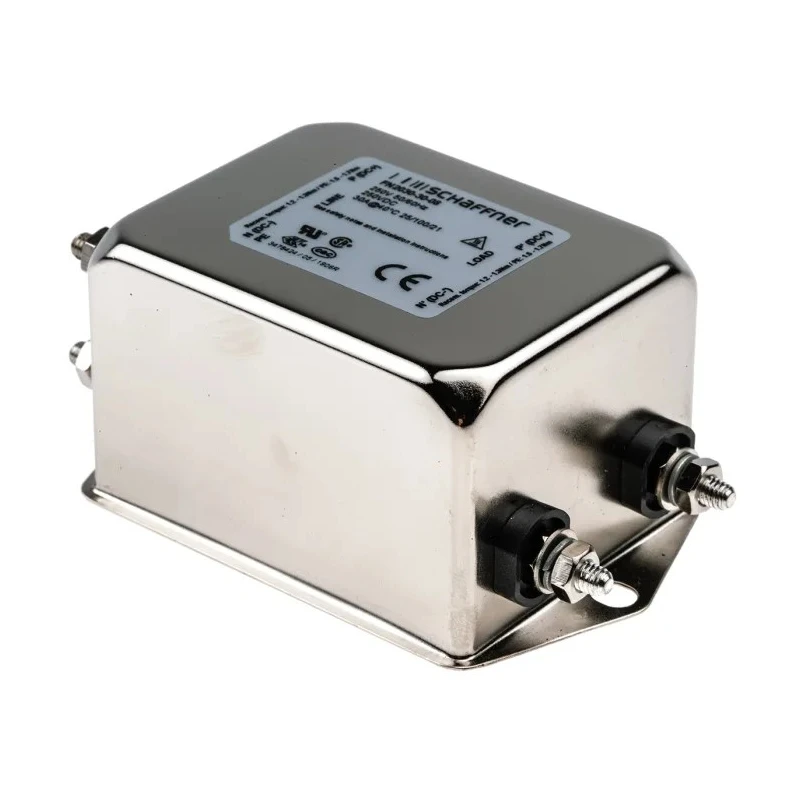

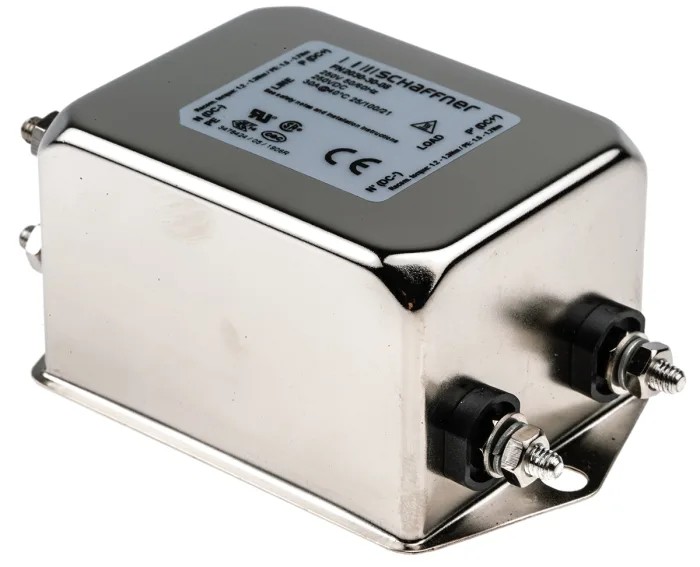

Schaffner Chassis Mount EMI Filter 30 A 250V ac/dc 400Hz Stud Termination 1 Phase FN2030

Schaffner FN2030 Chassis Mount EMI Filter, model FN2030-30-08, is a high-performance two-stage EMI filter designed for 1-phase AC/DC circuits with a maximum current capacity of 30 amperes and voltage rating up to 250 volts at 400 Hz frequency. Its stud termination and chassis mount enable easy, secure installation in electrical assemblies.

This EMI filter uses high permeability core chokes to provide exceptional conducted attenuation performance. The filter's capacitance of 10 nF combined with 2 mH inductance and low resistance of 330 kΩ allows effective suppression of differential mode interference, minimizing noise propagation in sensitive equipment.

Temperature ratings span from -25°C minimum to 100°C maximum, supporting use in household, industrial, medical, and data processing electronic devices where reliable noise filtering is critical. The leakage current is limited to 870 microamperes, optimizing energy efficiency.

With dimensions of 85 mm length, 54 mm depth, and 40.3 mm height, the compact design suits chassis mount applications without adding excessive bulk. The power loss is approximately 6 watts under nominal load, supporting continuous use.

Schaffner FN2030 filters are also available with optional surge pulse protection and various terminal options, accommodating customized electrical connections. They are ideal for a broad range of applications including consumer electronics, industrial equipment, medical technology, and electronic data processing.

This product is new and complies with relevant industrial standards but no specific certifications are listed for this model. It is manufactured in India and designed to meet demanding EMI suppression requirements.

Compact chassis mounting with stud termination for easy installation. Rated for 30A current and 250V AC/DC voltage at 400Hz frequency. Two-stage EMI filtering with 10 nF capacitance and 2 mH inductance. Low leakage current of 870 μA ensures energy efficiency.

Operating temperature range from -25°C to 100°C supports varied environments. Dimensions 85 x 54 x 40.3 mm fit tight chassis spaces. Power loss rated at 6 watts under typical load. Suitable for electronic equipment, medical devices, and data processing units.

Optional surge pulse protection and multiple terminal options available. Explore more EMI Filters in our comprehensive industrial electronics category at EnvMart for solutions tailored to your exact application needs.
