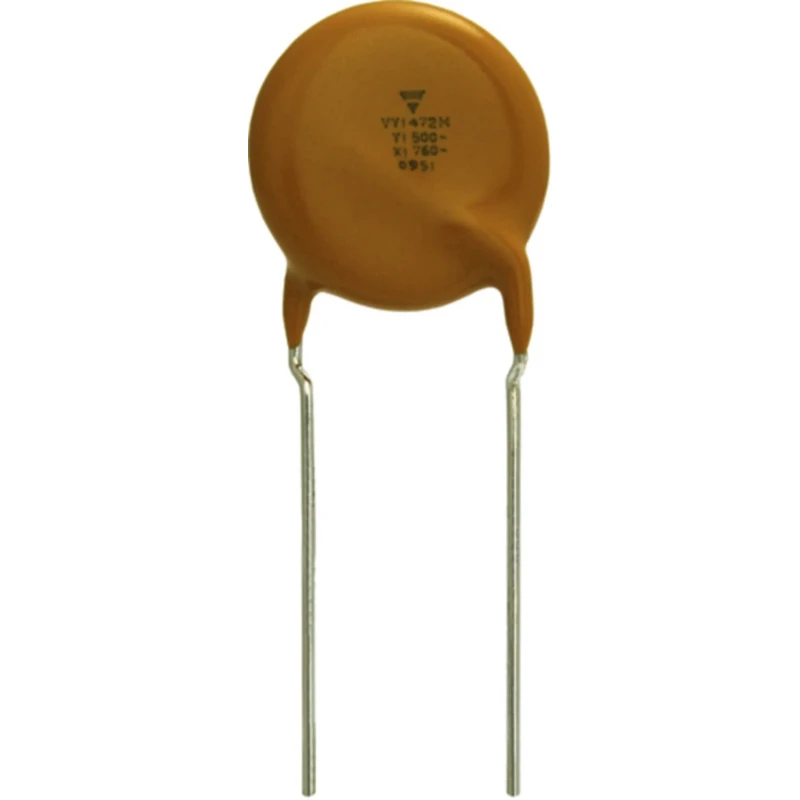

Vishay 1 nF Multilayer Ceramic Capacitor 760V AC Through Hole Y5U Dielectric ±20 % Tolerance VY1102M35Y5UQ63V0

Vishay VY1102M35Y5UQ63V0 is a high-quality multilayer ceramic capacitor designed for robust electrical performance in electronic circuits. It features a capacitance of 1 nF and can handle AC voltages up to 760V, making it suitable for demanding industrial and electronic applications. The capacitor utilizes a Y5U dielectric and has a tolerance of ±20 %, ensuring reliable capacitance stability within its specified range.

The capacitor is manufactured with silver plating on both sides of the ceramic disc and equipped with tinned copper clad steel connection leads. Its leads are kinked vertically in-line with a spacing of 10 mm and diameter of 0.5 mm, engineered for efficient through hole mounting on printed circuit boards.

The encapsulation is made from flame retardant epoxy resin, enhancing safety and durability during operation. The capacitor complies with key international standards such as IEC, UL, EN, VDE, CSA, REACH, and RoHS, certifying its quality and environmental compliance. It is part of the VY1 series and does not meet automotive standard requirements.

Typical applications include use as an X1, Y1 class capacitor across-the-line for line bypass and antenna coupling in electronic devices. The compact form factor and reliable performance make it well-suited for industrial electronics, power supplies, and appliance control circuits.

Capacitance value is 1 nF with ±20 % tolerance for precise performance. Rated for 760 volts AC operation with a maximum temperature of 125°C. Constructed with flame retardant epoxy resin encapsulation for safety. Lead spacing of 10 mm and lead diameter of 0.5 mm suitable for through hole mounting.

Meets international standards including IEC, UL, EN, VDE, CSA, REACH, and RoHS. Designed for high reliability with vertical (inline) kinked or straight leads. Applications include X1, Y1 across-the-line, line bypass, and antenna coupling.

Suitable for industrial and electronic component assembly requiring ceramic capacitors.

This capacitor is ideal for electronics manufacturing, industrial automation systems, power electronics, and electrical testing instrumentation. Its robust design ensures long-term reliability in harsh operating conditions.
