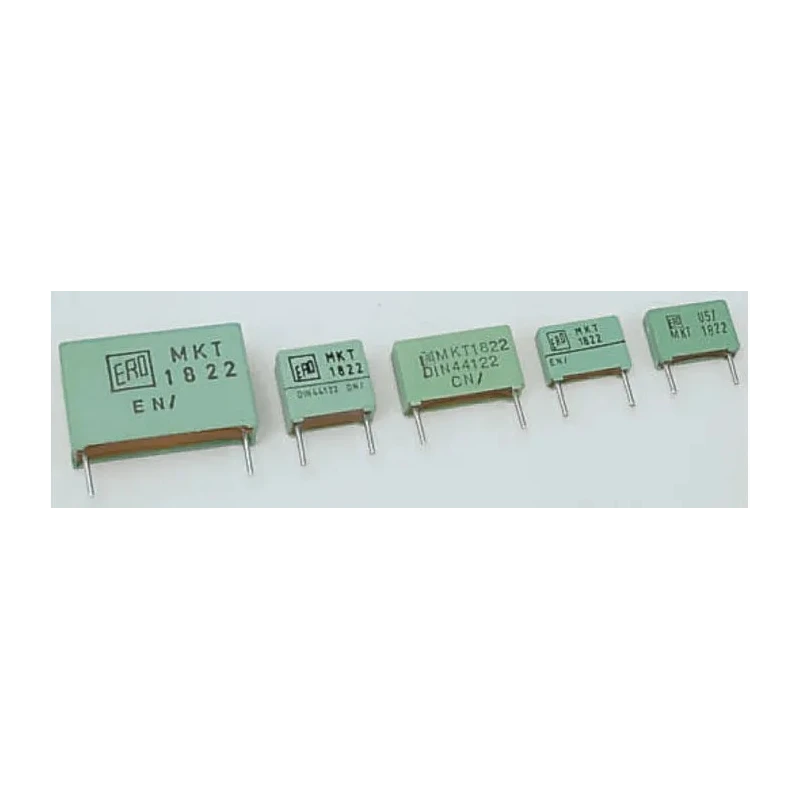

Vishay MKT 1822 Film Capacitor 10 nF 200V AC 400V DC Through-Hole MKT1822310405

Vishay's MKT1822310405 Film Capacitor, part of the MKT 1822 series, is engineered for demanding passive circuit applications requiring a capacitance of 10 nF, with a high-voltage rating of 200V AC and 400V DC. This capacitor is designed with a through-hole mounting method, providing solid mechanical stability and secure fastening in printed circuit boards.

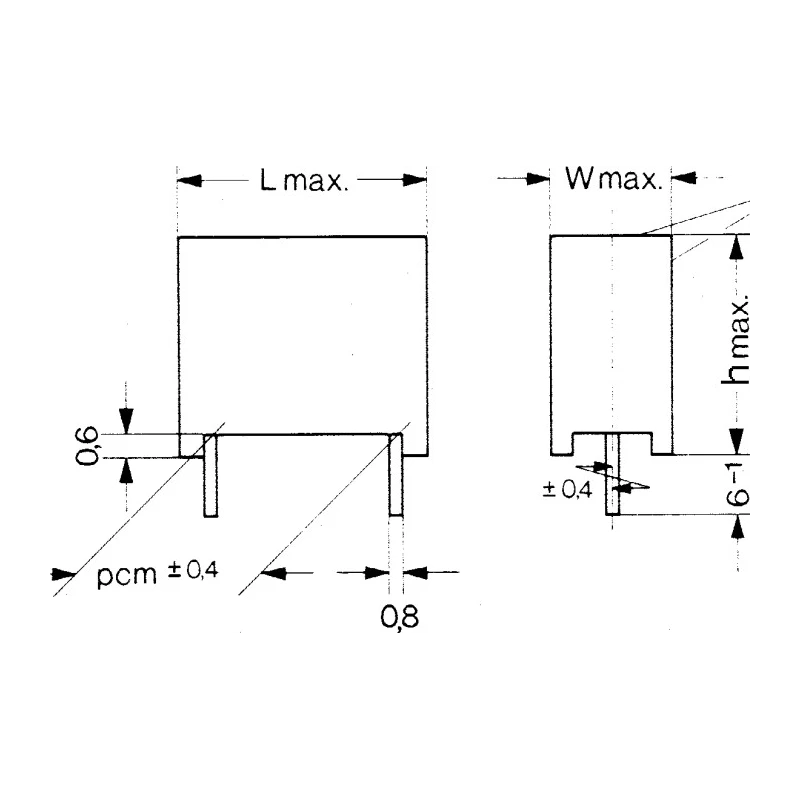

The capacitor’s compact form factor, measuring 13 mm in length, 9 mm in height, and 4 mm in width, ensures that it fits efficiently into space-constrained layouts commonly found in industrial and commercial electronic assemblies. Its 10 mm lead pitch aids in compatibility with standard PCB designs, and the 0.8 mm lead diameter offers robust electrical connections.

Operating reliably up to 100°C, this capacitor is suitable for environments with elevated temperatures, further enhancing its versatility across numerous applications. Constructed to IEC 60384-2 standards, it delivers consistent quality and performance, making it a dependable choice for electronic engineers and manufacturers.

The MKT1822310405 serves well in applications such as blocking, bypassing, filtering, timing, coupling and decoupling circuits, and interference suppression, particularly in low voltage environments. It is not intended for automotive standard applications, focusing instead on industrial and commercial electronics, laboratory instruments, and manufacturing equipment.

The MKT1822310405's performance makes it valuable in a wide range of industrial use cases, including energy management systems, HVAC controls, automation panels, signal processing, and other service electronics requiring reliable passive circuit elements.
