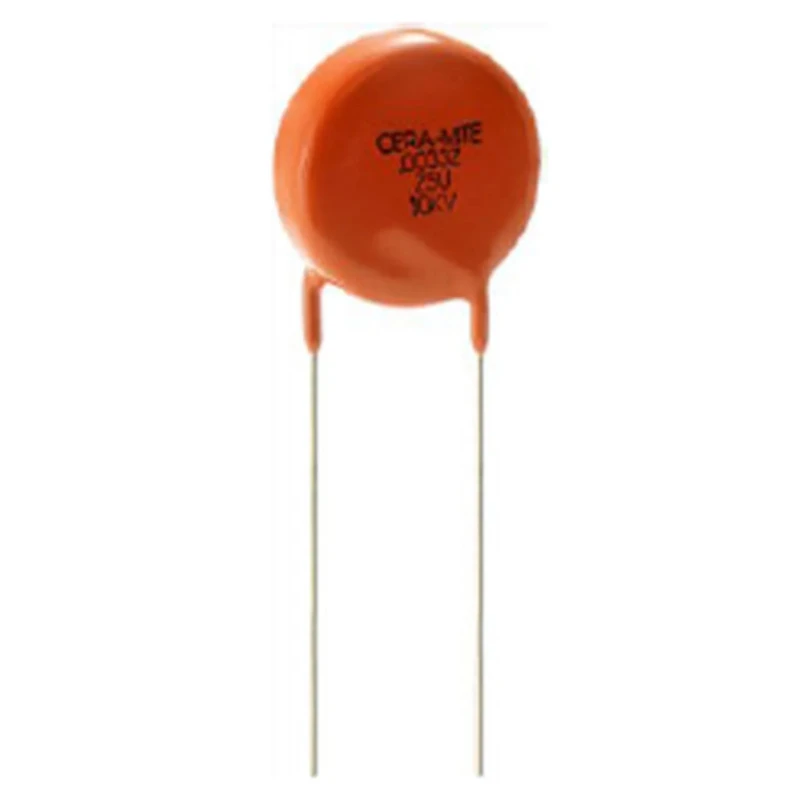

Vishay Single Layer Ceramic Capacitor 2.5 nF 10kV DC Z5U Dielectric Through Hole 105°C Max, 615R100GAD25

The Vishay 615R100GAD25 is a single layer ceramic capacitor specifically engineered for high voltage applications in demanding electronic environments. With a capacitance of 2.5 nF and a voltage rating of 10 kV DC, this component provides reliable performance in circuits such as switched mode power supplies, pulse circuits, and high-voltage X-ray equipment.

The 615R series uses a Z5U dielectric which enables stable operation over a broad temperature range from -25°C to 105°C, making this capacitor suitable for both industrial and laboratory settings. Its Class II suppression rating allows it to withstand environmental and electrical stresses where reliability is paramount.

Physical dimensions include a 19.1 mm diameter and 8.9 mm width disc, with radial pin leads made from tinned copper. Both faces of the ceramic are silver plated, and a flame-retardant epoxy resin coating ensures enhanced safety during high power operation.

Technical features such as a dissipation factor of 2%, tolerance of -20% to +80%, and compliance with EC and RoHS standards deliver superior efficiency and environmental responsibility. The pin count of 2 and through-hole mounting make this ideal for quick and robust PCB insertion.

Typical applications include TV and monitor circuits, high voltage DC and pulse circuits, X-ray generation, and switched mode power supplies. Its design supports easy integration in electronic, laboratory, and manufacturing environments where quality and safety compliance are vital.

This product does not meet automotive standards, focusing instead on industrial and laboratory use cases. For professionals requiring reliable ceramic capacitors for high voltage filtering, suppression, or coupling, the Vishay 615R100GAD25 is an optimal choice.
