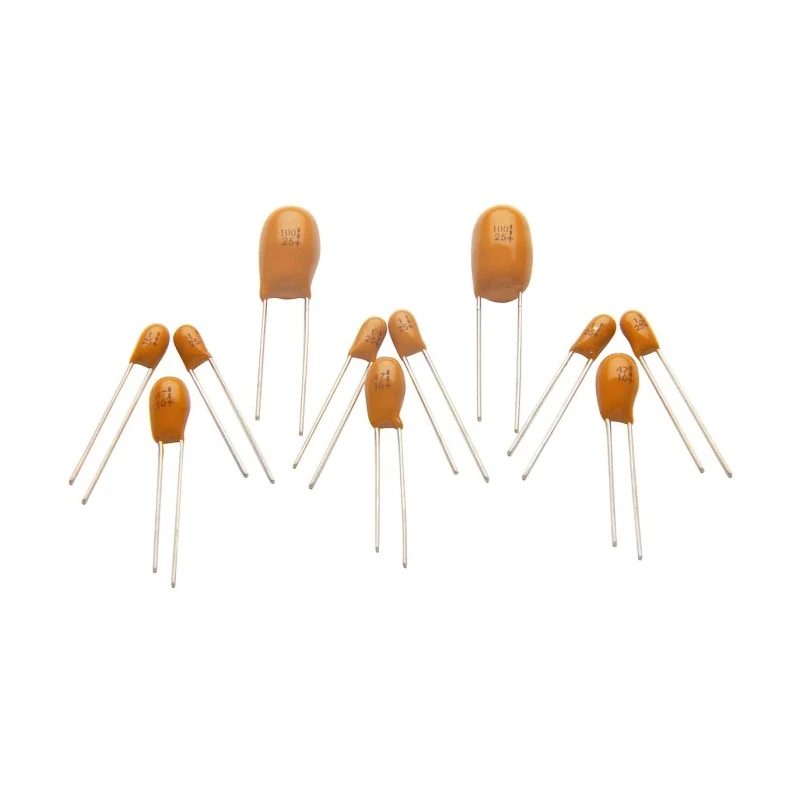

RS PRO Tantalum Electrolytic Capacitor 100nF 35V DC Through Hole, ±20% Tolerance, CB1V Series 181-4583
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 35V dc |
| Brand | RS PRO |
| Height | 7mm |
| Length | 4.5mm |
| Model | 181-4583 |
| Depth | 4.5mm |
| Technology | Electrolytic |
| Mount Type | Through Hole |
| Series | CB1V |
| Maximum Operating Temperature | 125°C |
| Capacitance | 100nF |
| Minimum Operating Temperature | -55°C |
| Polarity | Positive |
| Terminal type | Solder |
| Dissipation Factor | 0.04% |
| Leakage Current | 500nA |
| Electrolyte Type | Solid |
| Standards/Approvals | RoHS |
| Package/Case | A |
| Pin Count | 2 |
| Lead Pitch | 2.5mm |
| ANSI/ESD S20.20 | 2014 |
| BS EN 61340-5-1 | 2007 |
| Tolerance ± | -20% |
| Surge Voltage | 46V |
Key Features
- Electrolytic capacitor with 100nF capacitance for stable signal filtering and energy storage.
- Solid electrolyte technology with ±20% tolerance ensures reliable operation.
- Through hole mounting and epoxy coating for robust installation and mechanical durability.
- Features 2.5mm lead pitch, 7mm height, and 4.5mm body diameter for compatibility in PCB layouts.
- Operates reliably within a wide temperature range from -55°C to 125°C.
- Low leakage current of 500nA and dissipation factor less than 0.04% for high efficiency.
- Meets RoHS standards and series CB1V for use in electronic applications.
Product Description
The RS PRO 181-4583 is a tantalum electrolytic capacitor with a capacitance value of 100nF and a voltage rating of 35V DC. Part of the CB1V series, this solid-state component is designed for use in demanding electronic circuits requiring stable capacitance and high reliability. Its through hole configuration with a 2.5mm lead pitch ensures secure PCB mounting for a broad range of industrial and professional electronic assemblies.
This capacitor utilizes solid electrolyte technology, which offers enhanced durability and consistent performance over time. The epoxy-coated body protects the capacitor from environmental influences and mechanical shock. With a tolerance of ±20% and a maximum dissipation factor of 0.04%, it delivers stable electrical parameters suitable for signal coupling, decoupling, and bypass operations in a variety of electronic devices.
The RS PRO 181-4583 features dimensions of 4.5mm length, 4.5mm depth, and 7mm height, making it a compact choice for space-constrained designs. Its maximum operating temperature of 125°C and minimum of -55°C extend its use to harsh or high-temperature environments. With a pin count of 2, positive polarity, and solder-type terminals, it is straightforward to integrate into most PCB manufacturing processes.
Operating at a leakage current of just 500nA and a surge voltage of up to 46V, the capacitor provides low-loss energy buffering and filtering for sensitive electronics. It conforms to key industry standards including RoHS, ANSI/ESD S20.20: 2014, and BS EN 61340-5-1: 2007, ensuring safety and compliance in professional applications.
Typical applications for this capacitor include filtering, buffering, coupling, and noise suppression in industrial controllers, power supplies, instrumentation, and other industrial, commercial, or consumer-grade electronic systems where performance and reliability are critical.
This product is particularly well-suited for the electronics industry, supporting manufacturing, R&D, repair, and assembly processes. Choose RS PRO capacitors for their precision, consistency, and trusted performance in sophisticated electronic designs.
Browse more RS PRO Capacitors and industrial electronic components in the EnvMart catalogue.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a capacitance value of 100nF.
The maximum voltage rating for this capacitor is 35V DC.
It has a length and depth of 4.5mm and a height of 7mm.
The lead pitch for this capacitor is 2.5mm.
This unit uses through hole mounting for secure PCB installation.
It operates reliably within a temperature range of -55°C to 125°C.
The leakage current for this model is 500nA.
It meets RoHS standards and conforms to ANSI/ESD S20.20: 2014 and BS EN 61340-5-1: 2007.
The maximum dissipation factor is less than 0.04%.
This model has a positive polarity.
Typical applications include filtering, buffering, coupling, and noise suppression in various electronic devices.
It utilizes solid electrolyte technology for enhanced durability and performance.
