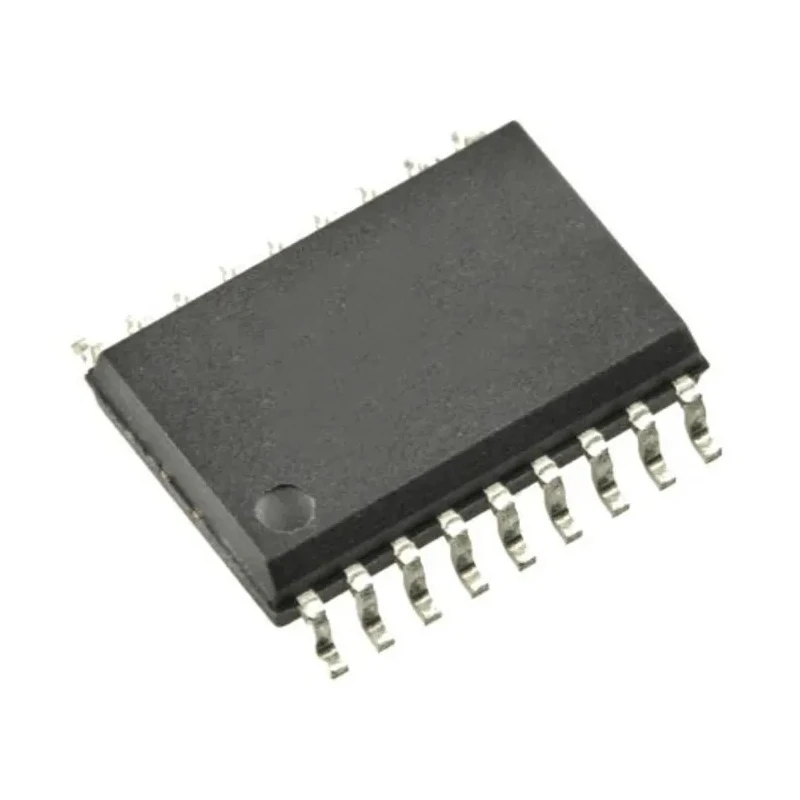

Toshiba Power Switch IC 8 Outputs 18-Pin Surface Mount PSOP TBD62783AFWG(Z,EHZ)

Free Delivery in India | Lowest Global Shipping Charges

Toshiba Power Switch IC 8 Outputs 18-Pin Surface Mount PSOP TBD62783AFWG(Z,EHZ)

Name: Toshiba Power Switch IC 8 Outputs 18-Pin Surface Mount PSOP TBD62783AFWG(Z,EHZ)
Brand: Toshiba
SKU: 151661
Price: 1 USD
Availability: InStock



Category Power Switch IC Brand Toshiba Condition New

Specifications

Country of Origin	China
Brand	Toshiba
Package	PG type P-DIP18-300-2.54-001
Model	TBD62783AFWG(Z,EHZ
Mount Type	Surface
Number of inputs	8
Series	TBD62783A
Power Rating	1.47W
Maximum Operating Temperature	85°C
Package Type	PSOP
Minimum Operating Temperature	-40°C
Operating Current	100μA
Number of outputs	8
Pin Count	18
Maximum Supply Voltage	25V
Minimum Supply Voltage	2V
Switch On Resistance RdsOn	3.25Ω
Input voltage(output on)	2.0 V (MIN)
Input voltage(output off)	0.6 V (MAX)

Key Features

The IC integrates clamp diodes for switching inductive loads in each output channel.
It features a maximum output voltage of 50 V and maximum output current per channel of -500 mA.
Operating voltage ranges from 2 V minimum supply to 25 V maximum supply.
Low switch on resistance of 3.25 ohms reduces power loss during operation.
Thermal management considerations are essential during use due to power rating of 1.47 W.
Supports operating temperatures from -40 to 85 degrees Celsius.
This device is ideal for electronic power management and switching control in industrial and consumer electronics.
Compact 18-pin PSOP surface mount package facilitates easy PCB integration.

Product Description

Toshiba TBD62783AFWG(Z,EHZ) is a robust Power Switch IC featuring 8 DMOS transistor outputs. Packaged in an 18-pin PSOP surface mount form factor, it is designed for reliable power management in advanced electronic circuits. This power switch IC includes internal clamp diodes in each output channel to protect against inductive load switching effects, enhancing circuit durability.

With a maximum output voltage of 50 V and the capability to handle currents up to -500 mA per output channel, this IC is suitable for a broad range of applications requiring efficient switching of medium power loads. It operates between a minimum supply voltage of 2 V and a maximum of 25 V while maintaining a low switch on resistance of 3.25 ohms, contributing to energy-efficient operation.

The device supports a power rating of 1.47 W and requires attention to thermal management during design, especially in compact or high-density PCB layouts. It is rated for operating temperatures from -40°C to 85°C, suitable for a variety of industrial and consumer environments.

Typical applications include electronic switching, power management in home appliances, industrial controls, and other systems where reliable power switching is critical. The compact PSOP package ensures ease of mounting and integration in automated assembly processes.

The IC contains 8 output circuits with built-in clamp diodes for inductive load protection. Max output voltage rating of 50 V ensures compatibility with higher power circuits. Maximum output current of -500 mA per channel suits multiple medium load devices.

Low input voltage threshold and output off voltage level facilitate precise control. Compact 18-pin PSOP mount type for modern PCB design and manufacturing. Operating temperature range enables use in harsh industrial environments.

Designed for surface mount technology enhancing assembly efficiency. Country of origin: China. Explore more Power Switch ICs and other semiconductor solutions on EnvMart for your industrial, laboratory, and electronics manufacturing needs.
