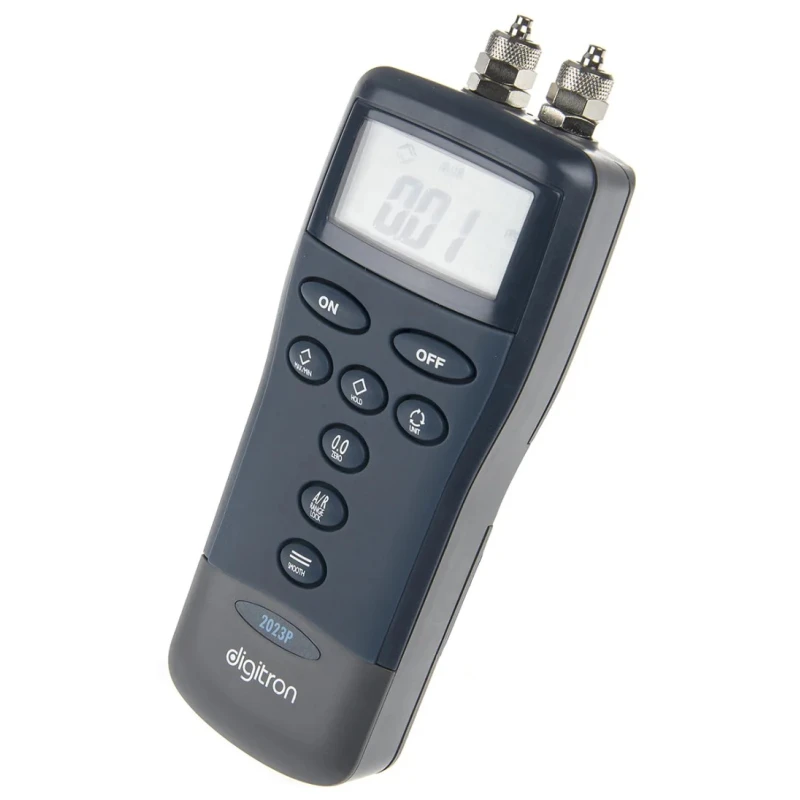

Digitron Handheld Differential Manometer with 2 Pressure Ports, Max Pressure Measurement 7 bar 2023P7-7BAR

Digitron 2023P7-7BAR handheld differential manometer is a precision instrument designed for accurate pressure measurement over a wide range up to 7 bar. It features two differential pressure ports, allowing simultaneous pressure input via 1/8 BSP connections compatible with 4 mm internal diameter hoses, ideal for diverse testing and measurement tasks.

This manometer is built robustly to meet IP67 standards when the hose is connected, ensuring durability and resistance against dust and water ingress, making it suitable for demanding industrial and laboratory environments. It operates effectively within a temperature range of -10 to 50 degrees Celsius, equipped with a backlit LCD for clear and easy-to-read measurements even in low light conditions.

Accuracy is a hallmark of this device, offering ±0.15% of reading plus 0.0105 bar plus one digit accuracy, with zeroing capabilities to accommodate local atmospheric pressure variations. The instrument includes features such as automatic leak testing with a Pass/Fail indication, providing confidence in system integrity assessments. Additional functionalities include min/max recordings, range lock, selectable auto-off, and data smoothing to stabilize readings in fluctuating pressure environments.

Powered by 2 standard AA batteries, the manometer ensures long operational use up to approximately 200 hours with a separate battery compartment enhancing ease of maintenance. The keypad uses reinforced silicone for durability under frequent use, and the compact form factor of 155 mm length, 67 mm width, and 40 mm height along with a light weight of 180 g enables easy handheld operation.

Preset engineering units simplify conversions and readings in mbar, Pa, inH2O, mH2O, inHg, mHg, kPa, and PSI, fulfilling the requirements of various industrial, laboratory, HVAC, and quality control applications. This product is manufactured in the United Kingdom, ensuring high manufacturing standards and quality assurance.

Ideal for industrial, construction, HVAC, manufacturing, and laboratory testing environments, the Digitron 2023P7-7BAR differential manometer delivers reliable, precise, and versatile pressure measurement solutions. The complete package includes the instrument and an instruction manual for ease of use and integration into measurement workflows.

Explore the full range of measuring and testing instruments at EnvMart for advanced pressure measurement solutions tailored to professional industrial and laboratory needs. Features high accuracy with ±0.15% reading plus 0.0105 bar plus 1 digit.

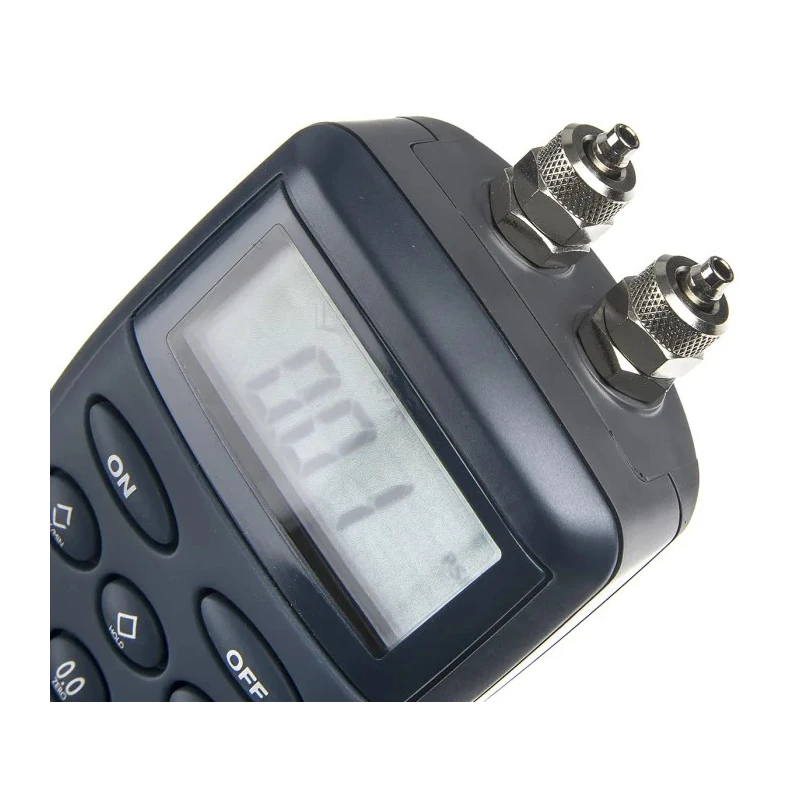

Equipped with two 1/8 BSP differential pressure ports compatible with 4mm inner diameter and 6mm outer diameter hoses. Robust IP67 rated design ensuring protection against dust and water ingress with hose connected. Operates reliably in temperature range from -10°C to 50°C with a backlit LCD display for clear visibility.

Offers automatic leak testing with user-specified test duration and pass/fail indication. Long battery life of approximately 200 hours powered by 2 AA batteries housed in a separate compartment. Includes min/max pressure recording, range locking, and smoothing for stable measurement in fluctuating conditions.

Compact dimensions of 155 x 67 x 40 mm and lightweight at 180 grams for handheld use. Preset engineering units including mbar, Pa, inH2O, mH2O, inHg, mHg, kPa, and PSI for versatile applications. Manufactured in the United Kingdom with a durable reinforced silicone keypad for improved durability.
