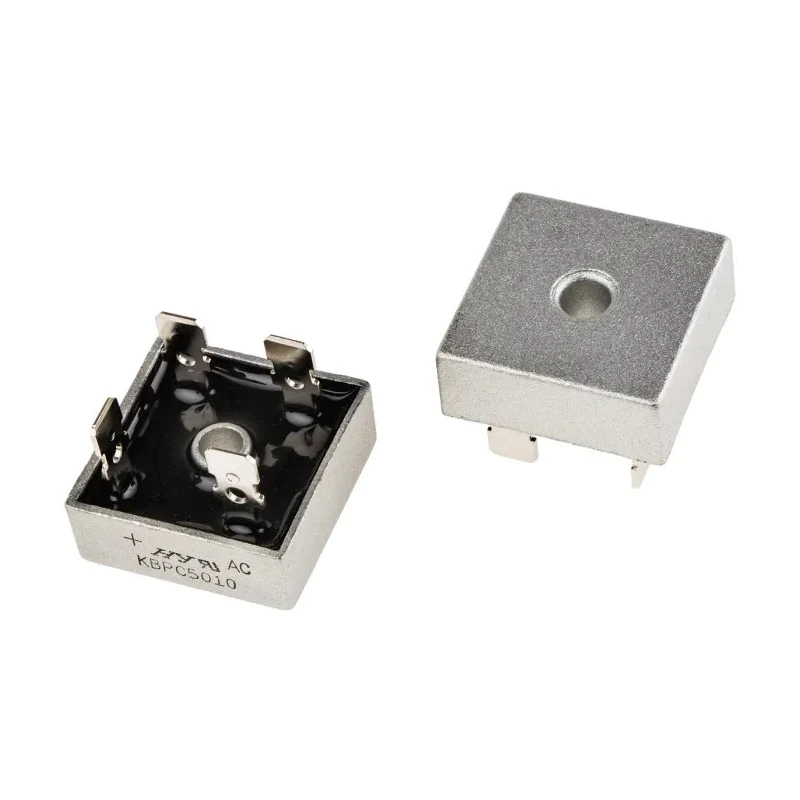

HY Electronic Corp Bridge Rectifier 1000 V 500 A 4-Pin Single KBPC5010

HY Electronic Corp KBPC5010 Bridge Rectifier is a single-phase bridge rectifier designed to convert AC signals to DC in various electronic applications. It features a peak reverse repetitive voltage rating of 1000 V and a forward current capacity of 50 A, making it suitable for medium-power semiconductor applications.

The device supports a maximum operating temperature of 150°C and a minimum of -55°C, enabling reliable performance across wide temperature ranges, ideal for demanding industrial and commercial electronic environments.

Its 4-pin through-hole mount package (KBPC type) measures 28.8 mm in length and width, with a height of 11.23 mm, providing a compact form factor for efficient PCB integration. The rectifier's low forward voltage drop of 1.1 V improves overall energy efficiency.

Designed with an electrically isolated base capable of withstanding 2000 V, the KBPC5010 ensures enhanced safety in power circuits. Its peak non-repetitive forward surge current rating of 500 A provides critical protection against surge conditions.

The material used is UL recognized, ensuring compliance with safety standards. This product finds application in electronic devices requiring AC to DC conversion, including various printed circuit applications and power supply modules.

With its robust electrical characteristics and durable design, the KBPC5010 bridge rectifier by HY Electronic Corp serves users in industrial, manufacturing, electronics assembly, and electrical maintenance sectors.

High peak reverse repetitive voltage of 1000 V ensures reliable operation. Supports forward current up to 50 A. Operating temperature ranges from -55°C to 150°C for versatility. Featuring a 4-pin through-hole mount configuration for easy installation.

Low peak forward voltage of 1.1 V for efficient rectification. Peak non-repetitive forward surge current up to 500 A for surge protection. Compact dimensions of 28.8 mm length and width, and 11.23 mm height. UL recognized material quality enhances safety and reliability.

Electrically isolated base rated at 2000 V for added insulation. Suitable for use in printed circuit applications and power electronics. Explore more semiconductor Bridge Rectifiers and related components in the Electronics & Electricals category at EnvMart.
