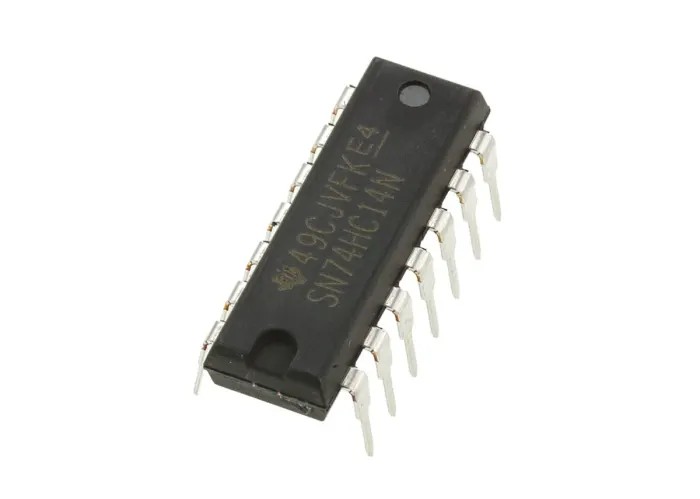

Texas Instruments Schmitt Trigger Input Inverter 6 Elements, 14-Pin PDIP Package SN74HC14N

Free Delivery in India | Lowest Global Shipping Charges

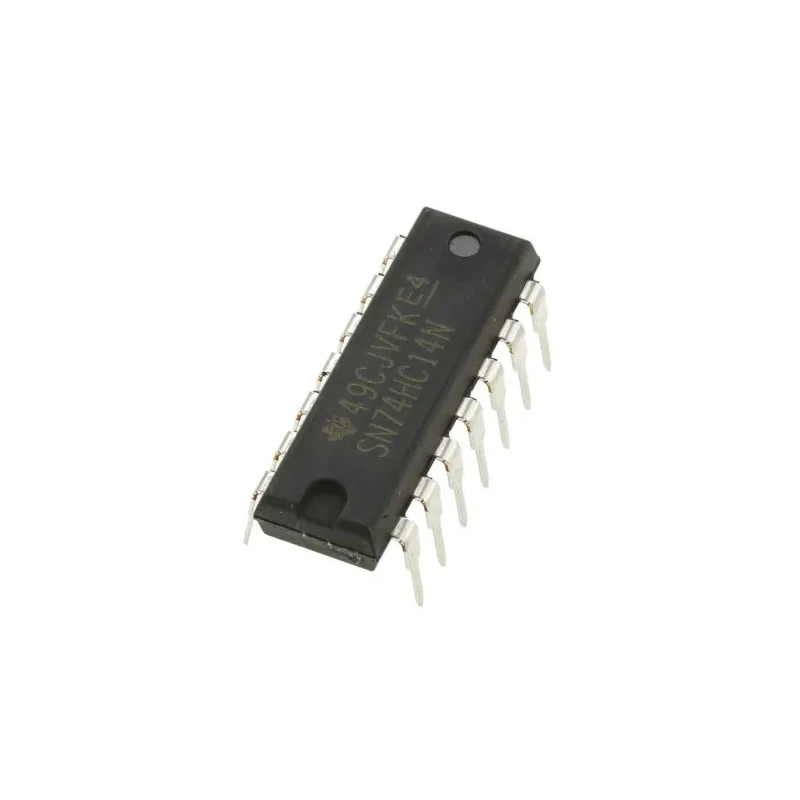

Texas Instruments Schmitt Trigger Input Inverter 6 Elements, 14-Pin PDIP Package SN74HC14N

Name: Texas Instruments Schmitt Trigger Input Inverter 6 Elements, 14-Pin PDIP Package SN74HC14N
Brand: Texas Instruments
SKU: 150610
Price: 1.46 USD
Availability: InStock



Category Inverters ICs Brand Texas Instruments Condition New

Specifications

Country of Origin	India
Brand	Texas Instruments
Height	4.57mm
Length	19.3mm
Model	SN74HC14N
Width	6.35mm
Mount Type	Through Hole
Compatibility	Input CMOS, Output CMOS
Series	SN74HC14
Input Type	Schmitt Trigger
Maximum Operating Temperature	85°C
Package Type	PDIP
Minimum Operating Temperature	-40°C
Operating Voltage	2 to 6 V
Pin Count	14
Number of Elements per Chip	6
Maximum Supply Voltage	6V
Logic Family	HC
Logic Function	Inverter
Minimum Supply Voltage	2V
Maximum High Level Output Current	-5.2mA
Maximum Propagation Delay Time @ CL	155ns
Maximum Low Level Output Current	5.2mA
IC, Logic, 7400, Gate, MM74HC14NBrand	Fairchild Semiconductor

Key Features

Includes 6 independent Schmitt trigger input inverters.
Operates with supply voltage range from 2 V to 6 V.
Maximum propagation delay time at CL is 155 nanoseconds.
Low power consumption due to high-speed CMOS technology.
Through hole mounting with 14-pin PDIP package.
Wide operating temperature range from -40°C to 85°C.
Compatible with CMOS input and output logic standards.
Compact package dimensions of 19.3 mm length, 6.35 mm width, and 4.57 mm height.

Product Description

Texas Instruments SN74HC14N is a high-performance Schmitt Trigger input inverter IC featuring 6 elements in a 14-pin PDIP package, designed for applications requiring precise and reliable logic inversion with hysteresis.

Manufactured using high-speed CMOS logic, this inverter supports operating voltages from 2 to 6 V, providing compatibility with a range of power supply systems while ensuring low power consumption and enhanced noise immunity.

The maximum propagation delay time at a standard load capacitance is 155 ns, enabling fast switching times critical for high-speed digital circuits.

The device supports through-hole mounting on printed circuit boards, housed in a standard 14-pin PDIP package measuring 19.3 mm in length, 6.35 mm in width, and 4.57 mm in height, making it suitable for various assembly processes.

Operating temperature extends from -40°C to 85°C, guaranteeing stable operation in diverse environments including industrial and laboratory settings. Output currents reach up to -5.2 mA for high level and 5.2 mA for low level, balancing power and performance for typical logic circuits.

This IC is widely used in industrial automation, electronic instrumentation, and embedded systems requiring inverting logic gates with Schmitt trigger input characteristics to suppress noise and improve signal integrity.

The device integrates 6 independent Schmitt trigger input inverters. Wide operating supply voltage of 2 to 6 V. Maximum propagation delay time of 155 ns at the specified load capacitance. Through-hole PDIP package for versatile mounting options.

Robust operating temperature range from -40°C to 85°C for reliability. Compatible with CMOS input and output logic requirements. Compact dimensions suited for standard PCB layouts. Suitable for industrial, laboratory, and general purpose electronic applications.

Explore the extensive range of semiconductor logic ICs and inverters at EnvMart for your electronic design projects and industrial automation needs.

Explore more products in our Inverters ICs category.
