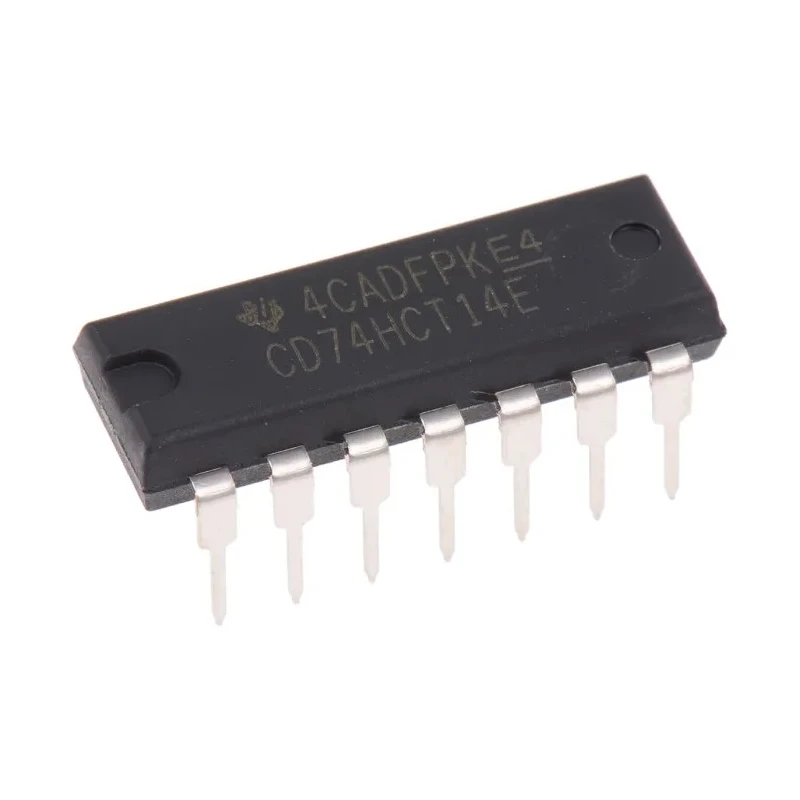

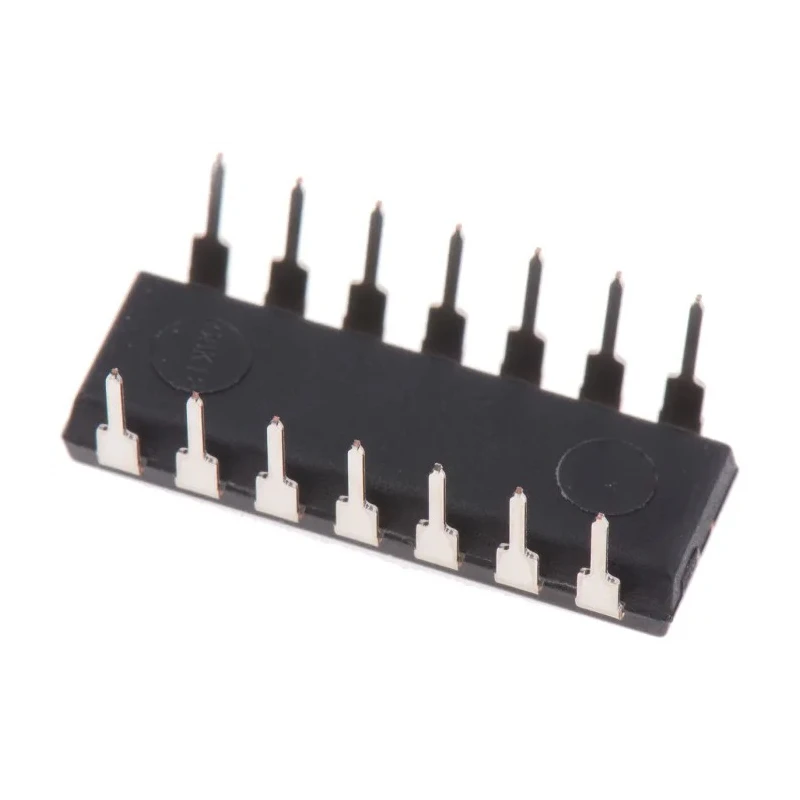

Texas Instruments Schmitt Trigger Input Inverter 6 Elements 14-Pin PDIP CD74HCT14E
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 4.57mm |
| Length | 19.3mm |
| Model | CD74HCT14E |
| Width | 6.35mm |
| Mount Type | Through Hole |
| Compatibility | Input TTL, Output CMOS |
| Output type | Push Pull, CMOS |
| Series | CD74HCT14 |
| Input Type | Schmitt Trigger |
| Maximum Operating Temperature | 125°C |
| Package Type | PDIP |
| Minimum Operating Temperature | -55°C |
| Pin Count | 14 |
| Number of Elements per Chip | 6 |
| Maximum Supply Voltage | 5.5V |
| Logic Family | HCT |
| Logic Function | Inverter |
| Minimum Supply Voltage | 4.5V |
| Maximum High Level Output Current | -4mA |
| Maximum Propagation Delay Time @ CL | 57ns |
| Maximum Low Level Output Current | 4mA |
Key Features
- Designed with high-speed CMOS technology for efficient switching.
- Compatible input TTL and output CMOS logic levels.
- Operating voltage range from 4.5V to 5.5V ensuring stable performance.
- Maximum propagation delay time of 57 nanoseconds at capacitive load.
- Through-hole mount type with a compact 14-pin dual in-line package (PDIP).
- Wide operating temperature range from -55°C to 125°C for industrial use.
- Push-pull CMOS output type delivering balanced current drive.
- Robust build with silicon gate CMOS technology for low power consumption.
Product Description
Texas Instruments CD74HCT14E is a Schmitt Trigger Input Inverter IC featuring 6 inverter elements housed in a 14-Pin PDIP package. Utilizing high-speed CMOS technology, the device operates efficiently within a voltage range of 4.5 to 5.5 volts. It provides reliable logic signal inversion with input TTL compatibility and CMOS output levels, making it suitable for a variety of semiconductor and electronic components applications.
This inverter offers a maximum propagation delay of 57 nanoseconds at the specified capacitive load, ensuring fast signal processing in digital circuits. Its push-pull CMOS outputs deliver balanced drive currents of -4mA (high level) and 4mA (low level), providing stable switching behavior.
The device's temperature tolerance ranges from -55°C to 125°C, making it ideal for use in industrial environments requiring rugged and reliable logic ICs. The 14-pin dual in-line package (PDIP) facilitates through-hole mounting, suitable for prototyping or production circuit boards.
Applications of the CD74HCT14E include digital signal processing in automation, instrumentation, communication systems, and general-purpose logic inversion tasks in electronic circuit designs.
High-speed CMOS logic technology for low power consumption. TTL compatible inputs with CMOS outputs for versatile interfacing. Wide operating temperature range for industrial and laboratory environments. Compact 14-pin PDIP package suitable for through-hole mounting.
Six Schmitt trigger input inverter elements for multiple logic functions. Maximum propagation delay of 57ns enabling fast switching applications. Robust, silicon gate CMOS technology ensuring long-term reliability. Explore more semiconductor components and Logic ICs at EnvMart for your industrial and electronic design needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The operating voltage range of this model is from 4.5V to 5.5V, ensuring stable performance in various applications.
The maximum propagation delay time is 57 nanoseconds at the specified capacitive load, allowing for fast signal processing.
It features a push-pull CMOS output type, delivering balanced current drive with -4mA for high level and 4mA for low level outputs.
This model has a height of 4.57mm, a length of 19.3mm, and a width of 6.35mm, packaged in a 14-pin dual in-line configuration.
It operates within a wide temperature range from -55°C to 125°C, making it suitable for industrial applications.
The CD74HCT14E is compatible with input TTL logic levels and provides CMOS output levels, allowing for versatile interfacing.
This model contains six Schmitt trigger input inverter elements, enabling multiple logic functions.
It is designed for through-hole mounting, which is suitable for prototyping or production circuit boards.
The logic family of this inverter is HCT, which indicates its compatibility with TTL inputs and CMOS outputs.
It is suitable for digital signal processing in automation, instrumentation, communication systems, and general-purpose logic inversion tasks.
This model features a Schmitt Trigger input type, which provides reliable logic signal inversion.
The maximum supply voltage for this inverter is 5.5V, ensuring it operates within safe limits for performance.
