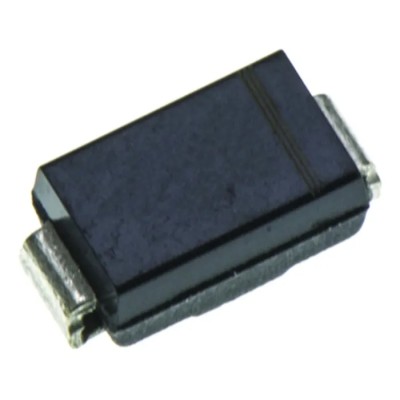

STMicroelectronics 100 V 1 A Surface Mount Schottky Diode DO-214AC STPS1H100A

STMicroelectronics STPS1H100A is a high efficiency surface mount Schottky diode designed for power and switching applications. Featuring a compact DO-214AC package, this diode supports a maximum continuous forward current of 1 ampere and a peak reverse voltage rating of 100 volts, making it suitable for use in power supplies, voltage clamps, and rectification circuits.

With a low forward voltage drop of 0.62 V, it ensures reduced power dissipation and enhanced system efficiency. The diode is rated to withstand a peak non-repetitive surge current up to 50 A, providing robustness under switching transients and surge conditions.

The device operates reliably over a wide temperature range from -65°C to 175°C, suitable for demanding industrial and automotive environments (note: automotive standard not certified). Its low peak reverse current of 4 µA minimizes leakage power losses.

The physical dimensions - 4.6 mm length, 2.95 mm width, and 2.03 mm height - allow for high density PCB layouts and space-constrained designs. The 2-pin, single diode configuration offers straightforward implementation in discrete semiconductor applications.

Surface mount DO-214AC package for easy PCB assembly. Maximum forward current of 1 A continuous. Peak reverse voltage 100 V ensuring high voltage capability. Low forward voltage for efficient performance. High surge current capacity for transient handling.

Wide operating temperature range supports varied environments. Compact physical size for dense electronic assemblies. Low leakage current minimizes power wastage.

This Schottky diode is primarily used in industrial power supplies, telecommunication equipment, consumer electronics, and analog/mixed-signal circuits requiring fast recovery diodes with low forward voltage.
